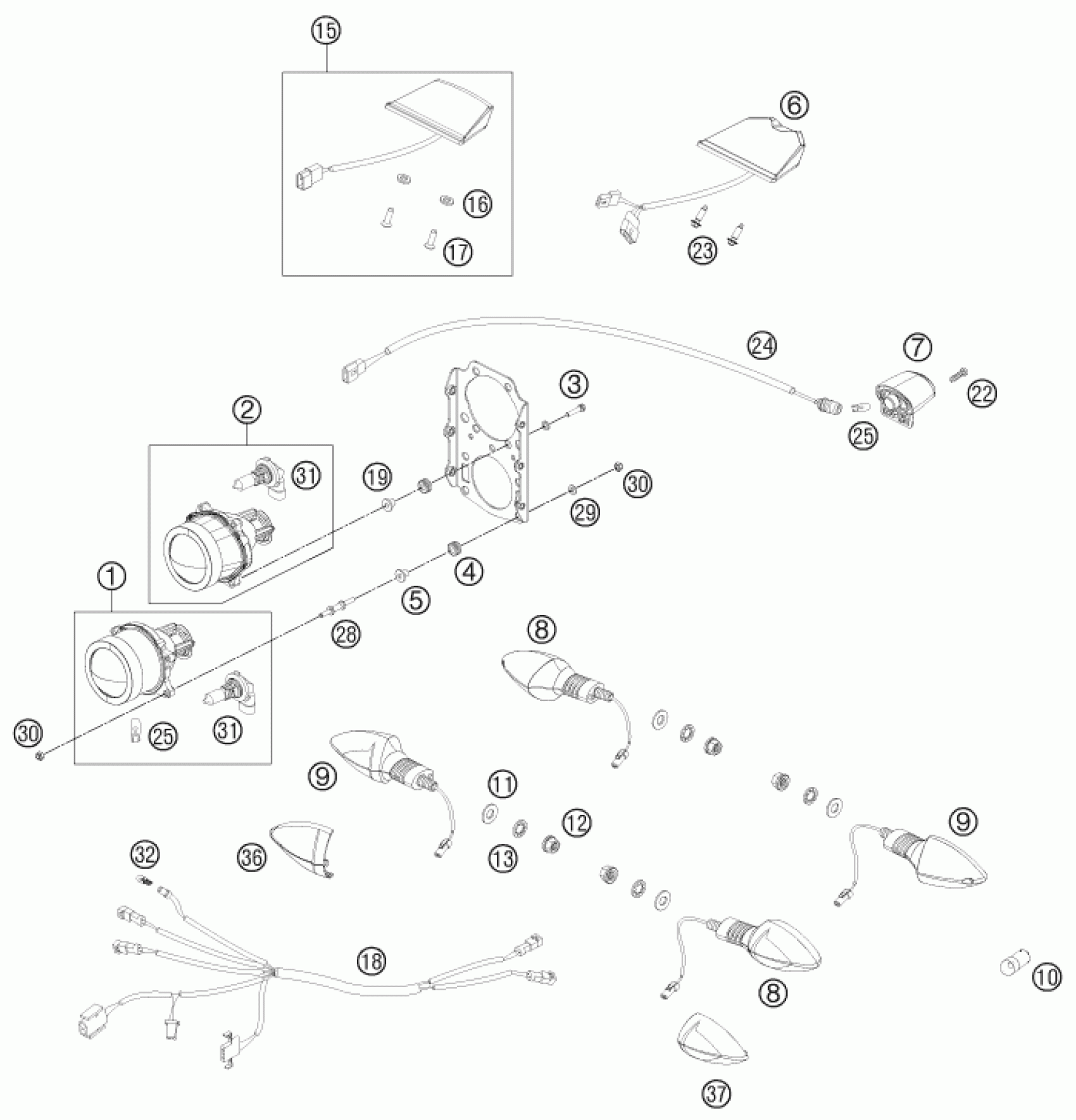

KTM 450 RALLY FACTORY REPLICA <2011> LIGHTING SYSTEM Diagram

#

Description
Price

1

HEADLIGHT HIGH BEAM 07

76214001000

Unavailable

2

HEADLIGHT LOW BEAM 07

76214002000

Unavailable

3

HH collar screw M6x20 TX30

0024060206

Unavailable

4

rubber grommet D=8mm open

31008060000

Unavailable

5

SPACER BUSHING HEAD LIGHT 03

60014007000

Unavailable

6

REAR LIGHT

76514040000

Unavailable

7

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

8

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

9

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

10

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

11

washer DIN 125 A 10.5

0125100003

Unavailable

12

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

13

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

15

ADDITIONAL REAR LIGHT CPL.

76314040044

Unavailable

18

WIRING HARNESS FLASHER 07

76211080000

Unavailable

19

spacer bushing for speedometer

58314060050

Unavailable

22

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

23

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

24

WIRING HARN. LIC. PLATE ILLUM.

76511078000

Unavailable

25

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

28

SPACING MANDREL

76214010015

Unavailable

29

WASHER DIN0125-A 5,3

0125050003

Unavailable

30

Self locking nut DIN 985 M5

0985050003

Unavailable

31

BULB HB3 12V 60W '99

58714003000

Unavailable

32

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

16

WASHER 5,3X12X0,5

77332036004

Unavailable

17

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

36

FLASHER LENS L/S R/S TRANSP.

78114028000

Unavailable

37

FLASHER LENS FRO.L/S-REAR R/S

78114027000

Unavailable
