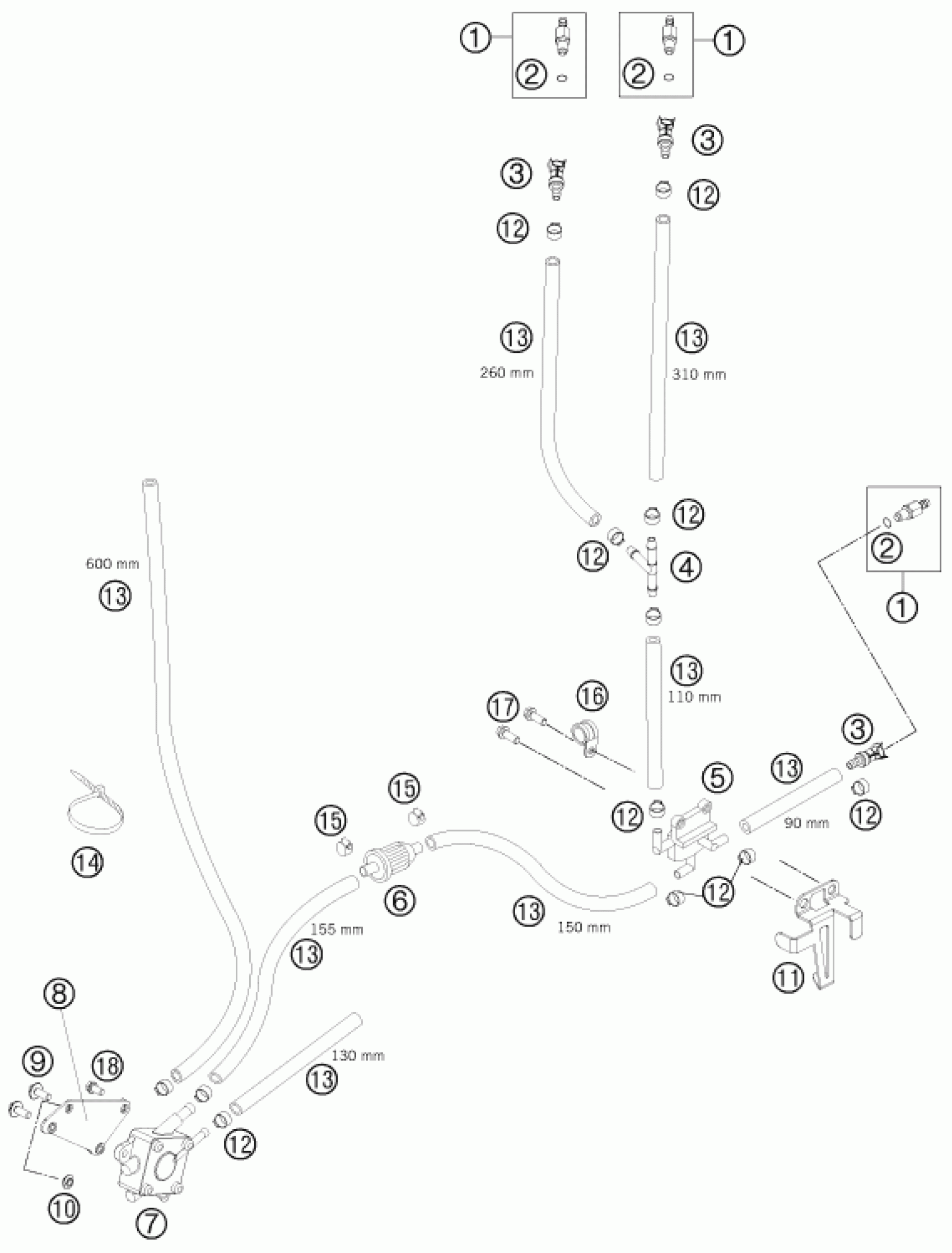

KTM 450 RALLY FACTORY REPLICA <2011> FUEL PUMP Diagram

#

Description
Price

1

Plug CPC black 05

5850701030030

Unavailable

2

O-ring VITON f. plug CPC 0

58507012000

Unavailable

10

SPACER BUSHING

76307013012

Unavailable

3

Clutch CPC PLCD17005, black

5850701050030

Unavailable

4

T-CONNECTOR FOR FUEL LINE

58007015000

Unavailable

5

COLLECTOR FUEL TAP RALLYE 2001

58507003100

Unavailable

6

FUEL FILTER ELEMENT RALLY

76207099050

Unavailable

7

FUEL PUMP MIKUNI DF52-601 01

58512087000

Unavailable

8

PLATE FOR FUEL PUMP CPL.

76307013011

Unavailable

9

HH collar screw M6x15 TX30

0024060156

Unavailable

11

LOCK PLATE COLLECTOR FUEL TAP

76207003050

Unavailable

12

OETIKER HOSE CLAMP 13,3MM

58007117200

Unavailable

13

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

15

CLAMP MINI

76207037000

Unavailable

16

BRAKE CABLE CLAMP RSGU 9/12

45001070000

Unavailable

17

HH collar screw M6x13 TX30

0024060136

Unavailable

18

HH collar screw M6x12 TX30

0025060126

Unavailable
