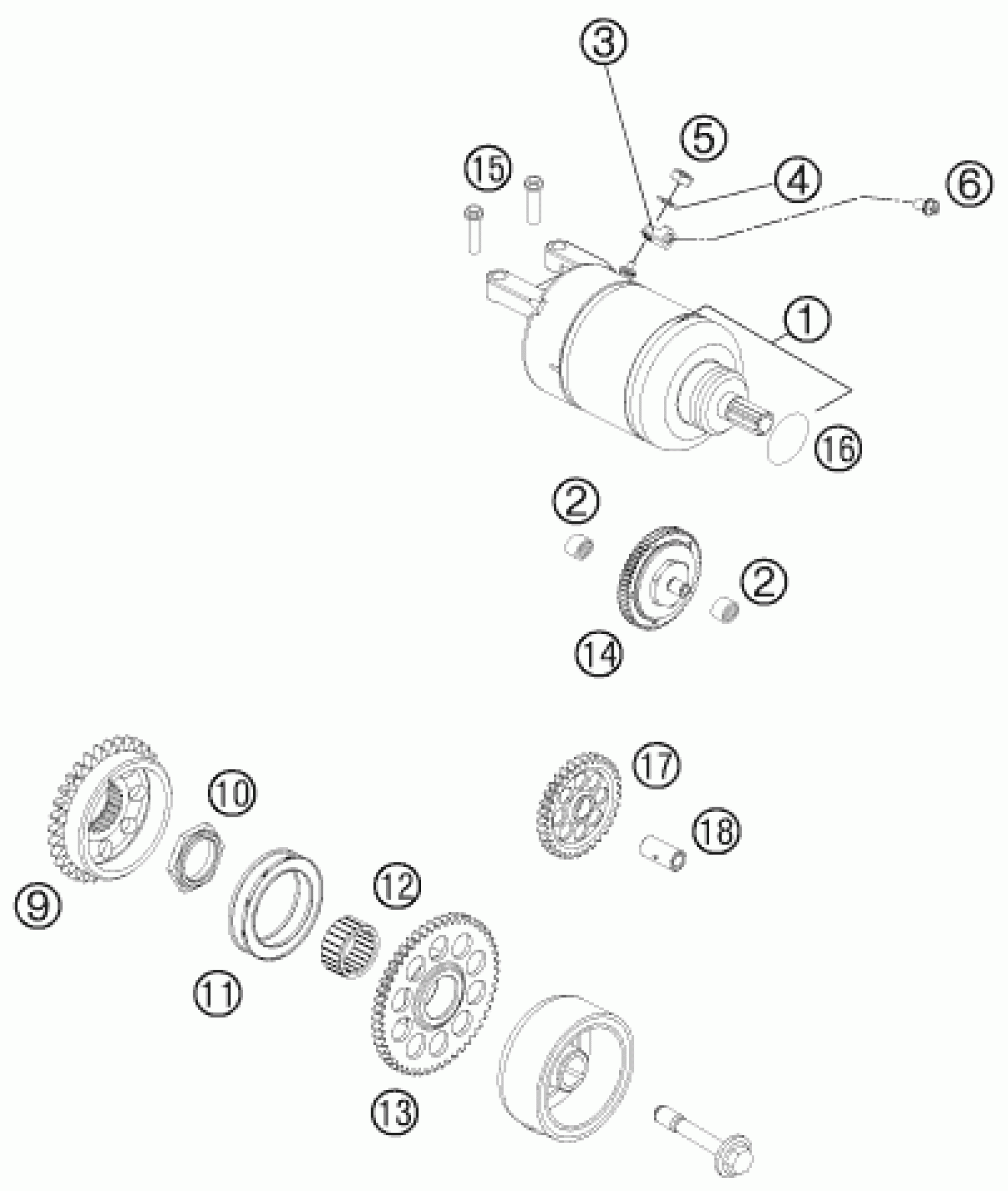

KTM 450 RALLY FACTORY REPLICA <2011> ELECTRIC STARTER Diagram

#

Description
Price

3

STARTER CABLE LUG

76211059010

Unavailable

4

WASHER DIN0125-A 6,4

0125060003

Unavailable

5

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

6

HH collar screw M6x10 TX30

0025060106

Unavailable

1

E-STARTER ENGINE CPL. 07

77340001000

Unavailable

2

NEEDLE BUSH HK 0810 DIN 618

0618081210

Unavailable

9

DRIVE WHEEL AGZR KS Z=32

77330055160

Unavailable

10

COLLAR NUT M27X1

77330029000

Unavailable

11

FREE WHEEL CLUTCH MECHANISM 97

H25015301

Unavailable

12

NEEDLE BEAR. K25X32X16

0405253216

Unavailable

13

STARTING GEAR Z=52

77340015100

Unavailable

14

TORQUE LIMITER CPL.

77340016100

Unavailable

15

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

16

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

17

INTERMEDIATE STARTING GEAR

77340022100

Unavailable

18

BEARING BOLT

77340028000

Unavailable
