CARBURETOR

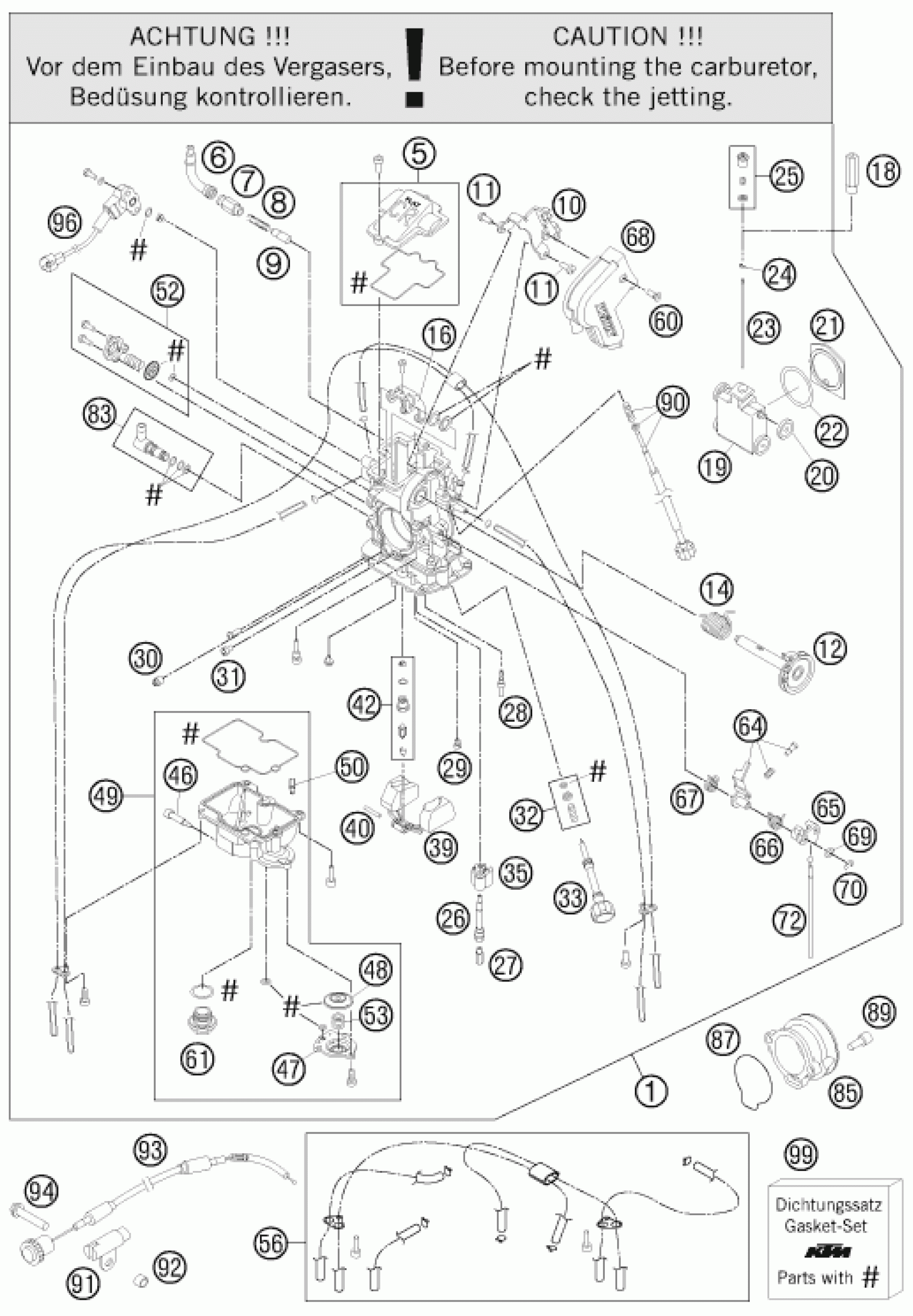

KTM 450 RALLY FACTORY REPLICA <2011> CARBURETOR Diagram
#
1
CARBURETOR
76331001000
Unavailable
5
CARBURETOR COVER WITH GASKET
57331027044
Unavailable
10
BRACKET PLATE FOR THR. CABLE
57331080000
Unavailable
11
SCREW M 5 X 8
57331055000
Unavailable
12
THROTTLE SHAFT CPL.
57331046000
Unavailable
14
COIL SPRING THROTTLE SHAFT
57331046050
Unavailable
16
LINK ARM THROTTLE VALVE CPL.
57331035051
Unavailable
18
SLIDE STOP 03
59031029010
Unavailable
19
THROTTLE VALVE CPL.
57331035000
Unavailable
20
BUSHING THROTTLE VALVE
59031035050
Unavailable
21
GASKET PLATE THROTTLE VALVE 04
57331035153
Unavailable
22
GASKET WASHER THROTTLE VALVE
59031035052
Unavailable
23
JET NEEDLE KEIHIN OBDTN
59031034000
Unavailable
23
JET NEEDLE KEIHIN OBDTP
59031034400
Unavailable
23
JET NEEDLE KEIHIN OBDTQ
59031034500
Unavailable
23
JET NEEDLE KEIHIN OBDTR
59031034600
Unavailable
24
BAR CLIP
59031029000
Unavailable
25
NEEDLE SET SCREW CPL.
57331032000
Unavailable
26
NEEDLE JET FCR-MX
59031121000
Unavailable
27
MAIN JET 180 KEIHIN
54531623180
Unavailable
27
MAIN JET 182 KEIHIN
54531623182
Unavailable
27
MAIN JET 185 KEIHIN
54531623185
Unavailable
27
MAIN JET 188 KEIHIN
54531623188
Unavailable
27
MAIN JET 190 KEIHIN
54531623190
Unavailable
27
MAIN JET 192 KEIHIN
54531623192
Unavailable
28
IDLE JET 42 KEIHIN
54531607042
Unavailable
28
IDLE JET 45 KEIHIN
54531607045
Unavailable
28
IDLE JET 48 KEIHIN
54531607048
Unavailable
29
STARTER JET 85
59031051085
Unavailable
30
IDLE AIR JET 100 KEIHIN
57331007100
Unavailable
31
MAIN AIR JET 200 KEIHIN
57331037200
Unavailable
32
ADJUST SCREW CPL. FCR-MX
59031017100
Unavailable
35
BUFFER PLATE
57331085000
Unavailable
39
FLOAT CPL.
57331009000
Unavailable
40
ARM PIN FLOAT
57331008000
Unavailable
42
NEEDLE VALVE CPL.
57331020000
Unavailable
46
DRAIN SCREW + O-RING
76231155000
Unavailable
47
COVER ACCELERATOR PUMP
57331060000
Unavailable
49
FLOAT CHAMBER CPL. 08
78031011000
Unavailable
52
AIR CUT VALVE 2002
57331090000
Unavailable
53
COIL SPRING
59031059000
Unavailable
56
BREATH.HOSE FCR-MX KEIHIN CPL.
57331098000
Unavailable
60
FLAT HEAD SCREW DIN0965-M 5X10
0965050103
Unavailable
61
PLUG M 18X1
54531699000
Unavailable
64
INTERMEDIATE LEVER CPL.
57331062000
Unavailable
65
LINK LEVER
57331056000
Unavailable
66
SXS ACCELERATION PUMP SPRING
SXS08250030
Unavailable
67
SPRING INTERMEDIATE LEVER
57331159000
Unavailable
68
CARBURETOR COVER
57331038000
Unavailable
6
SLEEVE
76302075000
Unavailable
8
CONNECTION CHOKE-CABLE SPRING
58502096003
Unavailable
7
CONNECT. COLD START CABLE CPL.
58502096044
Unavailable
9
CONNECTION CHOKE-CABLE PISTON
58502096002
Unavailable
69
WASHER LINK LEVER
57331087000
Unavailable
70
E-CLIP
57331084000
Unavailable
72
ROD ACCELERATOR PUMP
57331061000
Unavailable
83
HOSE CONNECTOR CPL.
59031013044
Unavailable
85
INTAKE FLANGE
76306040000
Unavailable
87
O-RING FOR INTAKE FUNNEL
59031040010
Unavailable
89
AH SCREW DIN0912-M 5X10
0912050103
Unavailable
90
STOP SCREW CPL.FCR-MX RALLY 07
76231025000
Unavailable
91
SLEEVE FOR CHOKE CABLE
58302095251
Unavailable
92
SPACER BUSHING 7X10X7,5
50208020000
Unavailable
93
CHOKE-CABLE l = 235 07
76202095000
Unavailable
94
HH collar screw M6x40 TX30
0025060406
Unavailable
96
TPS-SENSOR FCRMX 320MM 03-04
57331077100
Unavailable
99
GASKET SET FCR-MX KEIHIN
57331099000
Unavailable
27
MAIN JET 195 KEIHIN
54531623195
Unavailable
29
STARTER JET 65
59031051065
Unavailable
29
STARTER JET 70
59031051070
Unavailable
29
STARTER JET 75
59031051075
Unavailable
29
STARTER JET 80
59031051080
Unavailable
33
MIXT. CONTROL SCREW FACTORY 09
59031017300
Unavailable
50
JET POWER JET CLOSED KEIHIN
54631085000
Unavailable
50
JET POWER JET 40 KEIHIN
54631085040
Unavailable
50
JET POWER JET 50 KEIHIN
54631085050
Unavailable
50
JET POWER JET 60 KEIHIN
54631085060
Unavailable
50
JET POWER JET 70 KEIHIN
54631085070
Unavailable
48
DIAPHRAGM ACCELERATOR PUMP
57331057100
Unavailable
23
JET NEEDLE KEIHIN OBDVT
59031023200
Unavailable
