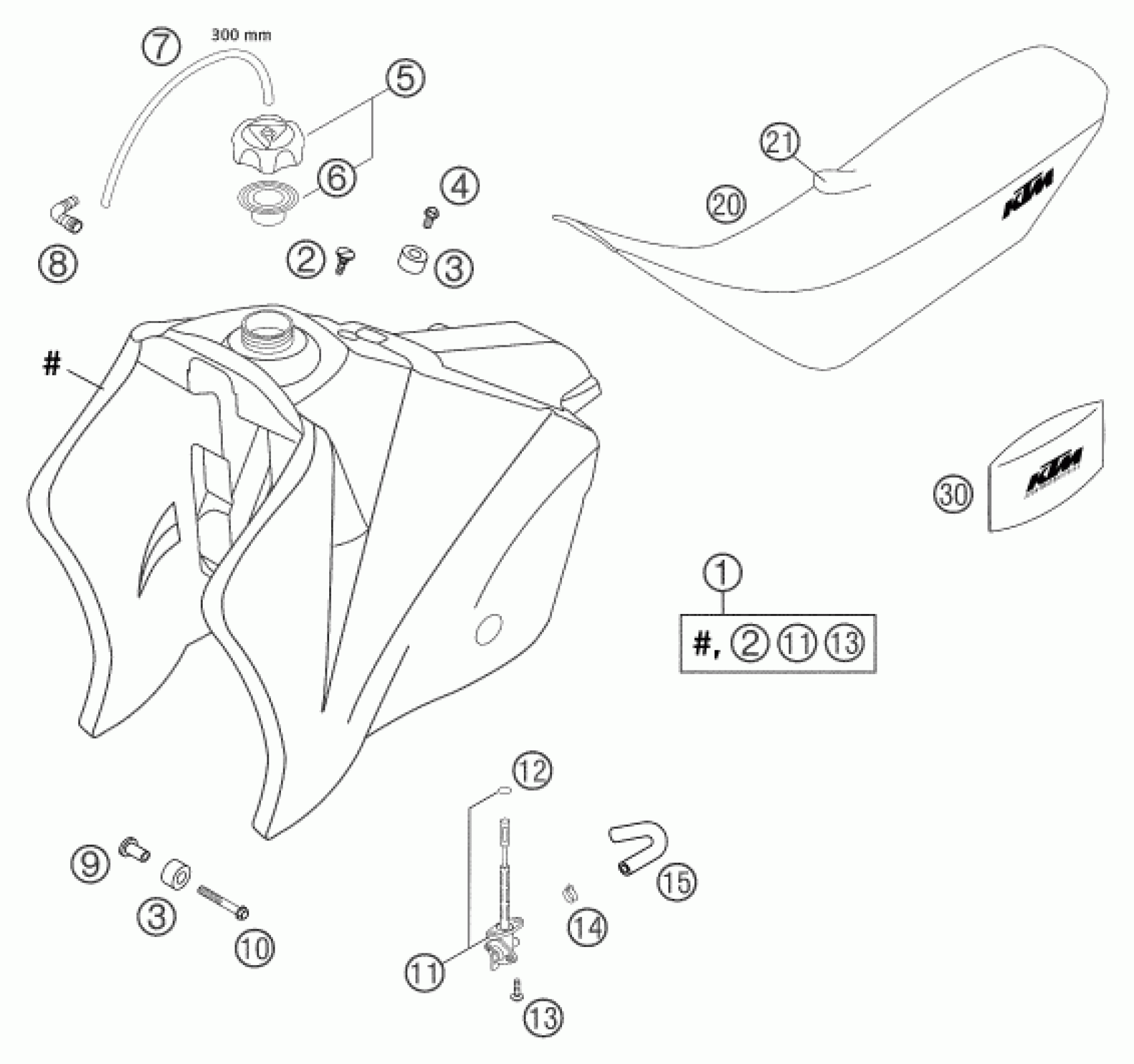

KTM 450 MXC-G RACING 2004 TANK, SEAT Diagram

#

Description
Price

1

% FUEL TANK CPL13L ORANGE 04

5900701360004

Unavailable

2

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

3

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

4

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

5

FILLER CAP CPL. WITH VALVE

59007008044

Unavailable

6

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

13

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

14

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

15

FUEL HOSE 7,5X13MM

59007016000

Unavailable

20

SEAT MXC RACING 04

59407040000

Unavailable

21

SEAT COVER MXC RACING 04

59407040050

Unavailable

30

ORIGINAL EQUIPMENT TOOL KIT

59029099000

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

9

SUPORT BUSHING TANKROLLER

59003001055

Unavailable

10

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

11

FUEL COCK CPL. OFF-ON-RES

58307105200

Unavailable

12

O-RING 13,00X2,30

0770130023

Unavailable
