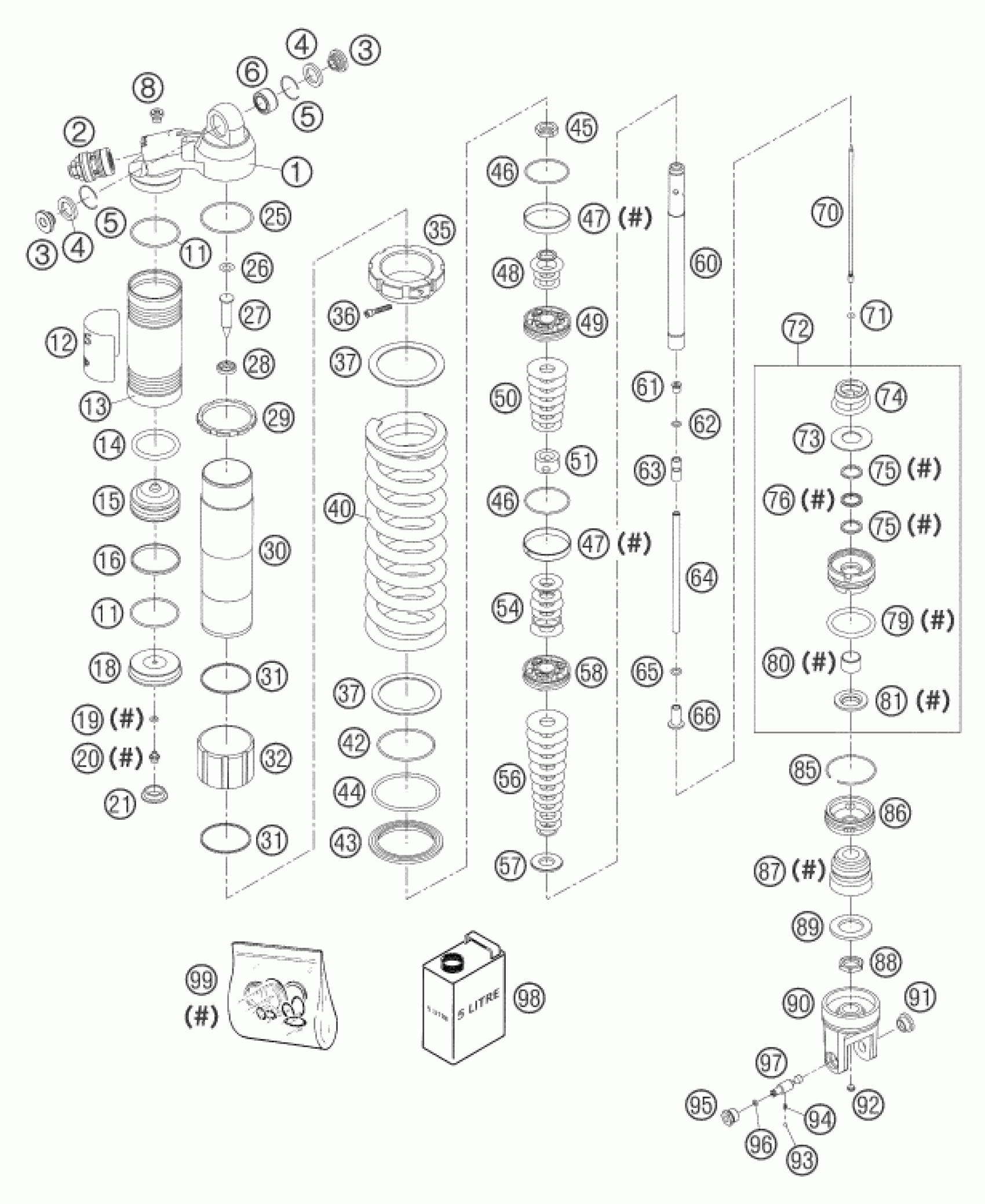

KTM 450 MXC-G RACING 2004 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

SHOCK ABSORBER TOP H=30,5 B=21

50180350

Unavailable

2

Compression cpl.

50180213S6

Unavailable

2

MCC-COMPR.DAMP.CONTROL CPL. 04

50180301S3

Unavailable

3

Distance bush 12x15/18/24,5x10

46180007

Unavailable

4

Seal ring 19,5x26x3

46180003

Unavailable

5

Round-wire snap ring 25x1

50180168

Unavailable

6

Ball joint bearing 15x25x13

50180005

Unavailable

8

HS cylinder-head screw R1/8 l8

50180095

Unavailable

11

O-ring 48x2 NBR70 siliconized

46810016

Unavailable

12

WP CAUTION (PDS KTM) 58X83

52000041

Unavailable

13

RESERV. SCREW L=140 D=52 GOLD

50180389

Unavailable

14

O-ring 41x5 Viton75

46180014

Unavailable

15

Piston 52mm reservoir

46180002

Unavailable

16

Pistonring 47,5x50,5x3,9

46180015

Unavailable

18

RESERVOIR CAP D=58

50180344

Unavailable

19

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

20

HS lock screw M5x6

36120151

Unavailable

21

Rubber cap do not open 22x5,5

46811208

Unavailable

25

O-ring 52x2 NBR70

50180097

Unavailable

26

spring washer 8,2x16x0,6

50180177

Unavailable

27

NEEDLE D=10 L=57

50180393

Unavailable

27

NEEDLE D=7,2 L=57

50180414

Unavailable

28

SCREW CAP M20x1, D=11

50180271

Unavailable

29

LOCK WASHER

50180270

Unavailable

30

TUBE PDS L=196

50180295

Unavailable

31

spreader ring 50X1,5

50180133

Unavailable

32

Spring guide 54,15x60x40

50180081

Unavailable

35

Spring retainer M56x1,75x80x15

50180354

Unavailable

36

AH SCREW DIN0912-M 5X30

0912050303

Unavailable

37

Intermediate washer spring 61,

50180114

Unavailable

40

SPRING 250 88N/MM D=13,0 (62)

91210006

Unavailable

40

SPRING 250 72N/MM D=12,5 (59)

91210002

Unavailable

40

SPRING 250 76N/MM D=12,5 (59)

91210003

Unavailable

40

SPRING PDS0-250 65-83N/MM

91210013

Unavailable

40

SPRING PDS1-250 70-90N/MM

91210009

Unavailable

40

SHOCK SPRING L= 250 75-96 N/MM

91210010

Unavailable

40

SPRING 250 97N/MM

91210008

Unavailable

40

SPRING PDS3-250 80-103N/MM

91210011

Unavailable

40

SPRING PDS4-250 85-111N/MM

91210012

Unavailable

40

SPRING PDS5-260 66-86N/MM

91210014

Unavailable

40

SPRING PDS6-260 71,5-90,5N/MM

91210015

Unavailable

40

SPRING PDS7-260 76-95N/MM

91210016

Unavailable

40

SPRING PDS8-260 81-99,5N/MM

91210017

Unavailable

42

Round-wire snap ring 58,5x2

50180273

Unavailable

43

SPRING RETAINER D=80 2003

50180355

Unavailable

44

O-ring 66,27x1,78 Viton70

50180352

Unavailable

45

Piston rod nut 16x1

50180141

Unavailable

46

O-ring 44x,17x1,78 Viton70

50180099

Unavailable

47

Piston ring 47,95x49,95x8

50180135

Unavailable

48

SHIM 16X28X0,30

50180072

Unavailable

48

Shim 21x36x0,25

50180209

Unavailable

48

WASHER 16X21X1

50180210

Unavailable

49

Piston 16,05x49,6x13,5 4,5/7

50180197

Unavailable

50

Shim 16x21x0,30

50180035

Unavailable

70

NEEDLE L=175

50180261

Unavailable

50

SHIM 16X34X0,15

50180048

Unavailable

50

SHIM 16X36X0,20

50180058

Unavailable

50

SHIM 16X38X0,20

50180059

Unavailable

50

Shim 16x40x0,2

50180060

Unavailable

50

Shim 16x42x0,2

50180061

Unavailable

50

SHIM 16X44X0,20

50180062

Unavailable

50

SHIM 16X28X0,25

50180063

Unavailable

50

SHIM 16X30X0,25

50180064

Unavailable

50

SHIM 16X32X0,25

50180065

Unavailable

50

SHIM 16X34X0,25

50180066

Unavailable

51

SANDWICH BUSH D25XD16X14,5/D

50180269

Unavailable

54

Shim 16x20x0,30

50180034

Unavailable

54

SHIM 16X28X0,15

50180045

Unavailable

54

Shim 16x28x0,2

50180054

Unavailable

54

Shim 16x32x0,2

50180056

Unavailable

54

Shim 16x34x0,2 y5

50180057

Unavailable

54

SHIM 16X36X0,25

50180067

Unavailable

56

Shim 16x22x0,30

50180036

Unavailable

56

SHIM 16X34X0,15

50180048

Unavailable

56

Shim 16x21x0,30

50180035

Unavailable

56

SHIM 16X36X0,15

50180049

Unavailable

56

SHIM 16X36X0,20

50180058

Unavailable

56

SHIM 16X38X0,20

50180059

Unavailable

56

Shim 16x40x0,2

50180060

Unavailable

56

Shim 16x42x0,2

50180061

Unavailable

56

SHIM 16X44X0,20

50180062

Unavailable

56

SHIM 16X28X0,25

50180063

Unavailable

56

SHIM 16X30X0,25

50180064

Unavailable

56

SHIM 16X32X0,25

50180065

Unavailable

56

SHIM 16X34X0,25

50180066

Unavailable

57

DISC REBOUND D=34, H=0

50180313

Unavailable

57

DISC REBOUND D=34, H=2

50180322

Unavailable

58

Piston 16x49,6x13,5

50180311

Unavailable

60

SPINDEL D=18, L=153, M16x1

50180294

Unavailable

61

BUSH M8X1

50180200

Unavailable

62

O-ring 7x1,5 Viton70 green

50180157

Unavailable

63

NEEDLE SEAT M8X1

50180201

Unavailable

64

TUBE M18X1 L=151,5

50180264

Unavailable

65

O-ring 8x2 NBR70

48600049

Unavailable

66

Bush 5/8,2/7x9,5/16,8x23

50180279

Unavailable

71

O-ring 2,2x1,6 Viton75 green

46811265

Unavailable

72

ADAPTOR CPL. D=50 H=26,5

50180384S

Unavailable

73

DISC REBOUND SPRING

50180314

Unavailable

74

REBOUND SPRING 2003

50180385

Unavailable

75

Washer 18x22,5x1,5 plastic

50180102

Unavailable

76

X-ring 18x2,62 Viton70

50180101

Unavailable

79

O-ring 41x5 NBR70

50180103

Unavailable

80

Guide bushing 18x20x12

46180119

Unavailable

81

Dirt scarper 18mm

50180082

Unavailable

85

Round-wire snap ring 53x1,75

50180126

Unavailable

86

Cap 50,1x17,5 h6

50180165

Unavailable

87

Rubber pad 17,2x45,2x40 black

50180276

Unavailable

88

HH locking nut M18x1 h5 WAF24

50180283

Unavailable

89

Preload bush 42x26,5x2,5

48600036

Unavailable

90

FORK PART L=55,5 B=32,5 D=12

50180356

Unavailable

91

Threaded bush M12 d20

50180105

Unavailable

92

Rubber plug 8x3,5 NBR50

50180297

Unavailable

93

Steel ball d3

40540603

Unavailable

94

SPRING D=2,9, L=6,2

40540602

Unavailable

95

HH screw M14x9

50180281

Unavailable

96

O-ring 4x1,5 NBR70

50180222

Unavailable

97

ADJUSTING SCREW 80 DEG., L=39

50180280

Unavailable

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

99

REPAIR-KIT GASKET 5018 PDS 03

R12008

Unavailable
