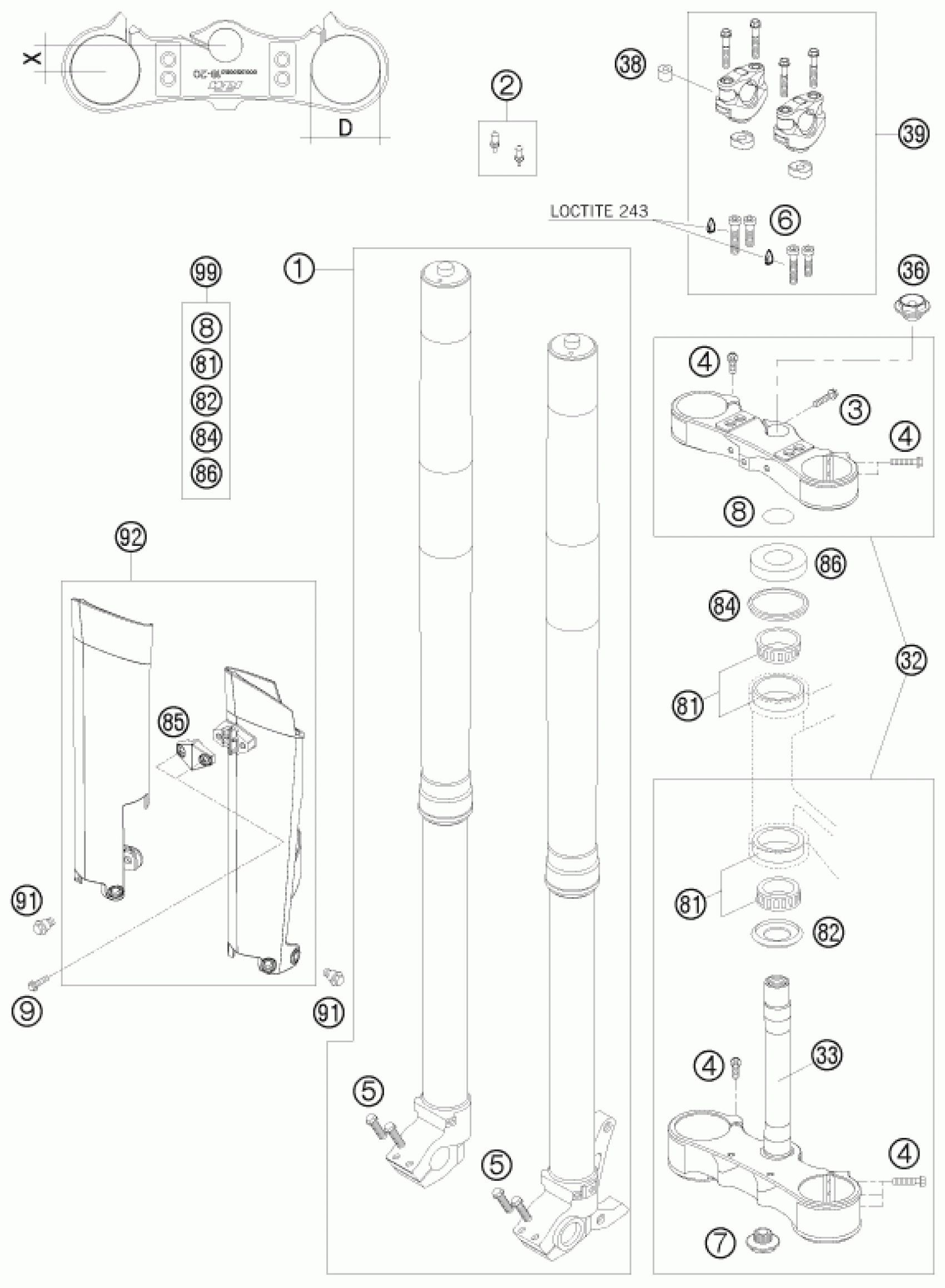

KTM 450 EXC-R SIX-DAYS 08 <2008> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK WP D=48 450/530 SD 08

14187D35

Unavailable

2

BLEEDER VALVE SET

SXS07125610

Unavailable

3

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

4

HH collar screw M8x35 TX40

0025080356

Unavailable

5

HH collar screw M8x25

0025080256

Unavailable

6

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

6

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

8

O-RING 25X3,55 NBR70 05

0770025035

Unavailable

7

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

Unavailable

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

32

TRIPLE CLAMP 18-20MM OFFSET

5940109901988

Unavailable

33

FORK TUBE L=237MM 05

59401033000

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

38

ELASTOMER GREEN/SOFT

SXS05125203

Unavailable

38

ELASTOMER YELLOW/MEDIUM

SXS05125204

Unavailable

38

ELASTOMER RED/HARD

SXS05125205

Unavailable

39

PHDS PROGRESSIVE H-BAR DAMPING

SXS07125200

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

CLAMP FOR SPEED CABLE D=6MM 08

7800108500004

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECTIO LE+RI ORAN.08

7800109400004

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
