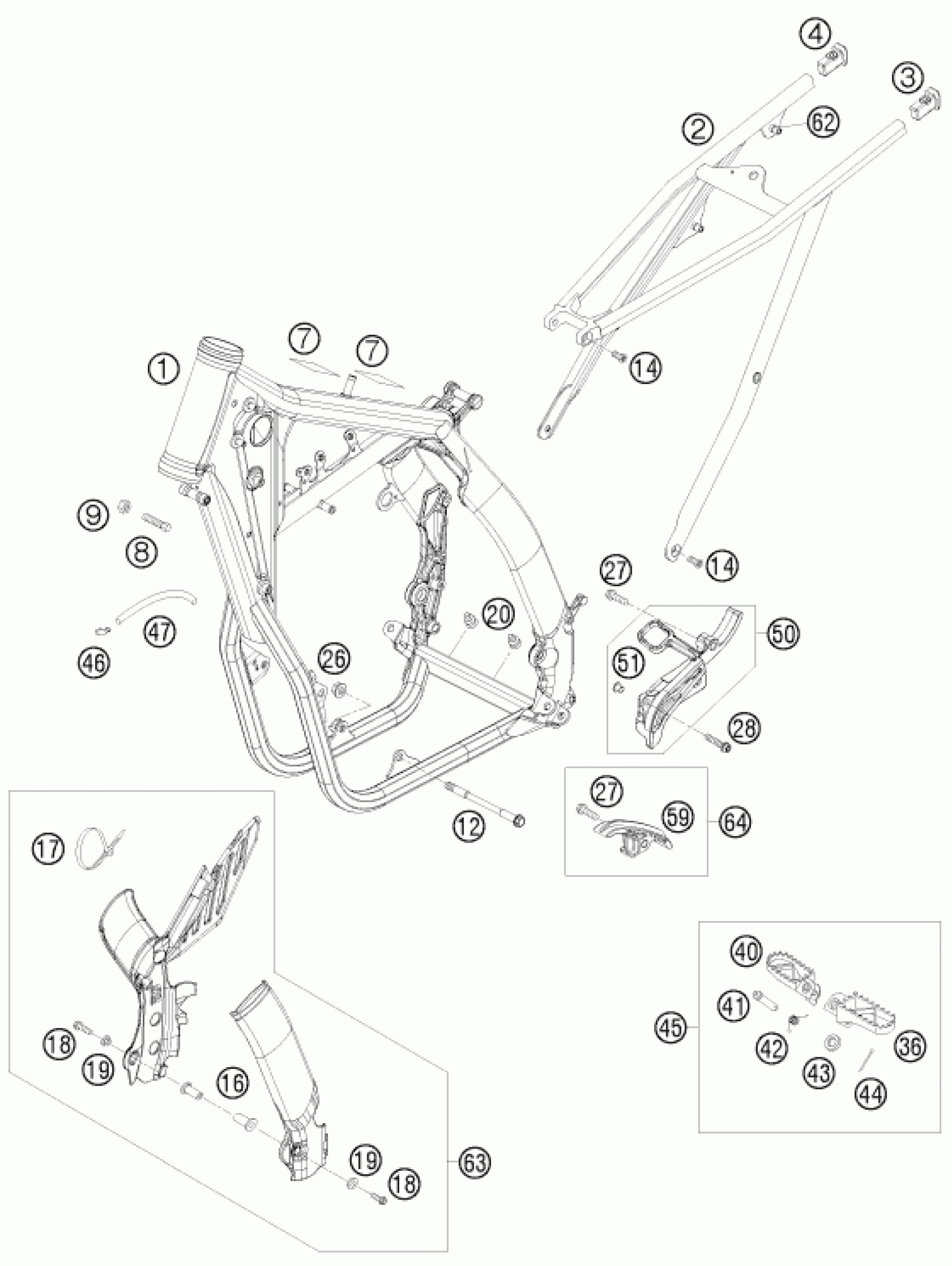

KTM 450 EXC-R SIX-DAYS 08 <2008> FRAME Diagram

#

Description
Price

1

FRAME XCF-W ''DB08''

7800300100030

Unavailable

2

SUB FRAME SX ''Q7'' 07

77303002000

Unavailable

3

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

4

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

7

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

Unavailable

8

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

9

Hexagon nut DIN934 M8

0934080003

Unavailable

20

PLASTIC CAP SFL10

54403135000

Unavailable

26

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

27

HH collar screw M8x30

0025080306

Unavailable

28

HH collar screw M6x30 TX30

0025060306

Unavailable

36

FOOT PEG L/S SILVER 02

59003040250

Unavailable

40

FOOT PEG R/S SILVER 02

59003041250

Unavailable

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

42

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

43

washer DIN 125 A 10.5

0125100003

Unavailable

44

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

45

FOOTPEG L.+R. CPL. 03

5030314013390

Unavailable

46

ANGLE PIECE '97

50303089000

Unavailable

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

CHAIN SPR. COV. 450/525 EXC-F

78003096000

Unavailable

51

spacer bushing for speedometer

58314060050

Unavailable

59

Chain sliding piece, bottom

77303053000

Unavailable

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

63

PLASTIC FRAME PROTECTION SET

77303094100

Unavailable

64

CHAIN SLIDING KIT BELOW CPL07

77303053010

Unavailable

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

Unavailable

17

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

18

COU.SUNK SCR. AH ISO7380 M5X25

0738050250

Unavailable

12

Enginebrac. screw M10X123 WS=1

59003013000

Unavailable

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

19

Bush f. frame protection 03

54803092060

Unavailable
