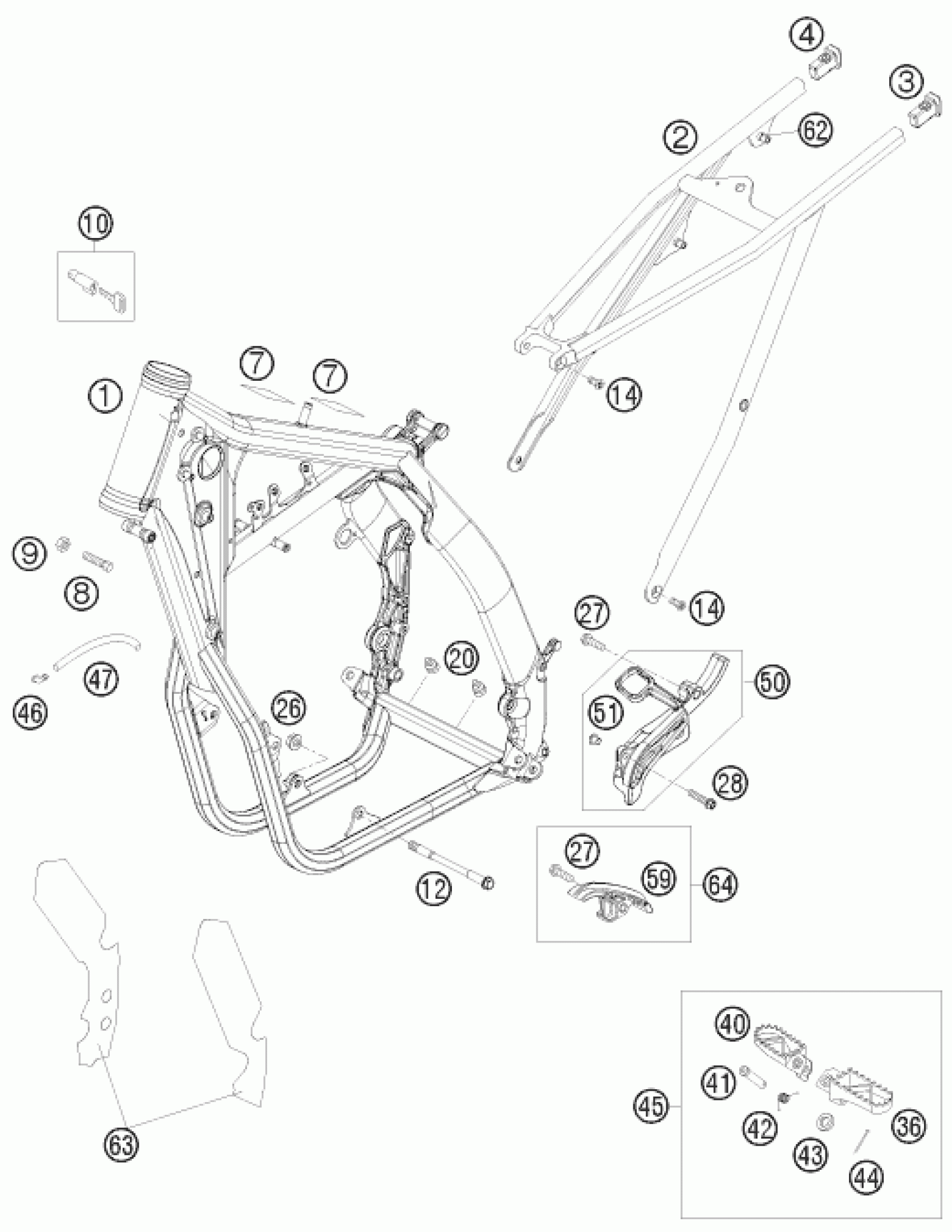

KTM 450 EXC-R 2008 FRAME Diagram
#
Description
Price
1
FRAME EXC-F ''DC08'' 08
7800300110030
Unavailable
2
SUB FRAME SX ''Q7'' 07
77303002000
Unavailable
20
PLASTIC CAP SFL10
54403135000
Unavailable
3
SUB FRAME APPLICAT. LEFT 08
78003002010
Unavailable
4
SUB FRAME APPLICATION R/S 08
78003002020
Unavailable
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
Unavailable
8
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
9
Hexagon nut DIN934 M8
0934080003
Unavailable
10
STEERING HEAD LOCK 08
78003035000
Unavailable
12
Enginebrac. screw M10X123 WS=1
59003013000
Unavailable
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH collar screw M8x30
0025080306
Unavailable
36
FOOT PEG L/S SILVER 02
59003040250
Unavailable
40
FOOT PEG R/S SILVER 02
59003041250
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
45
FOOTPEG L.+R. CPL. 03
5030314013390
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
47
HOSE EPA D=6/10 PER METER
78015019001
Unavailable
50
CHAIN SPR. COV. 450/525 EXC-F
78003096000
Unavailable
59
Chain sliding piece, bottom
77303053000
Unavailable
64
CHAIN SLIDING KIT BELOW CPL07
77303053010
Unavailable
63
FRAME PROTECTION STICK. SET 07
77303094000
Unavailable
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
51
spacer bushing for speedometer
58314060050
Unavailable
28
HH collar screw M6x35 TX30
0025060356
Unavailable
