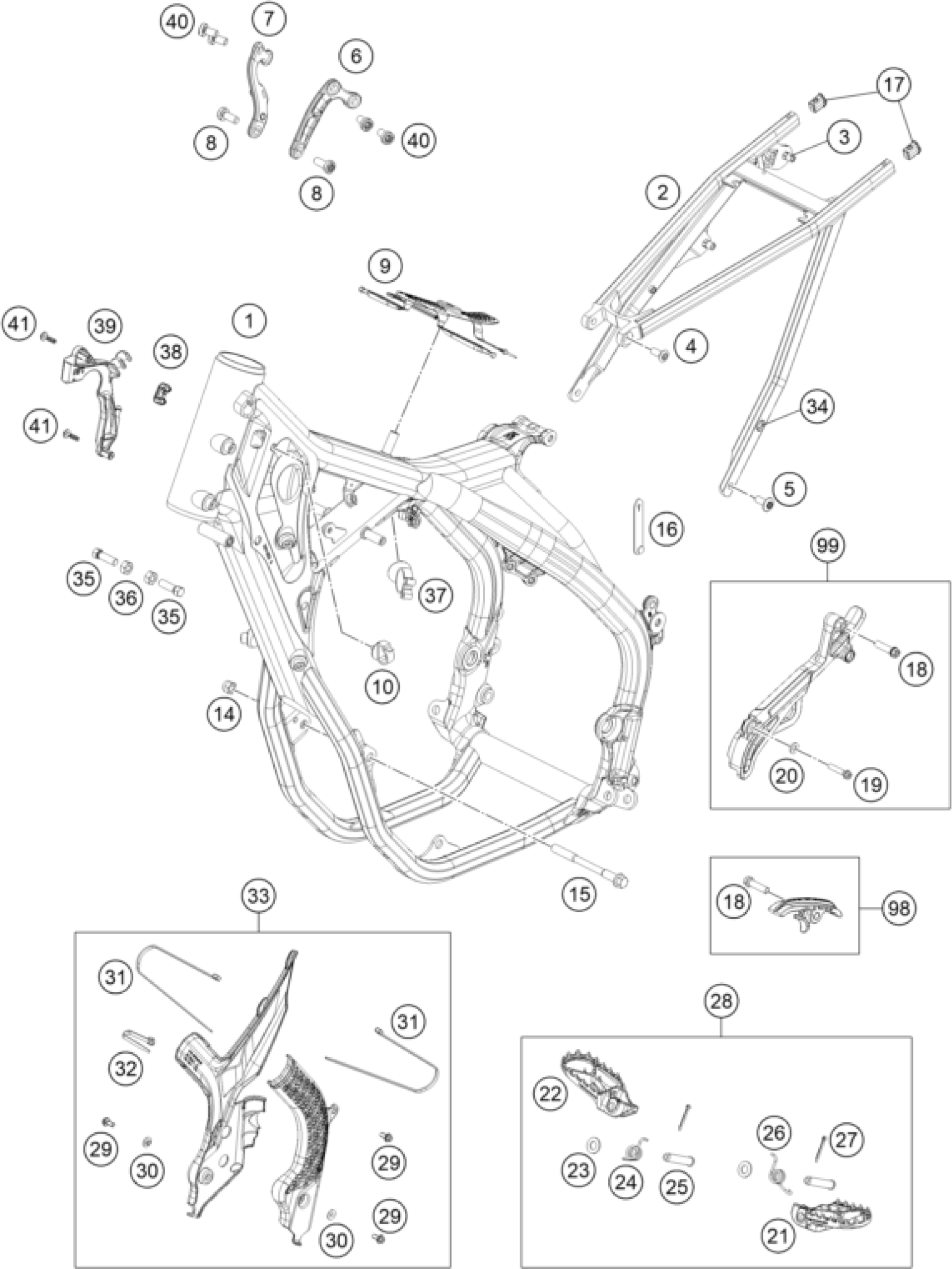

KTM 450 EXC-F SIX DAYS 2021 FRAME Diagram

#

Description
Price

1

Frame 797T1

79703101100EB

Unavailable

2

Subframe

79103002000

Unavailable

3

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

4

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

5

Special screw M8X18 TORX45 SL

79003003000

Unavailable

6

Engine brace left

7950311300001S

Unavailable

7

Engine brace right

7950311400001S

Unavailable

8

SHCS M8x20 TX45

0035080206S

Unavailable

9

TANK REST RUBBER

79607012000

Unavailable

10

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

14

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

15

Enginebrac. screw M10X123 WS=1

59003013000

Unavailable

16

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

17

Rear frame bit

79103002010

Unavailable

18

HH collar screw M8x30

0025080306

Unavailable

19

HH collar screw M6x35 TX30

0025060356

Unavailable

20

WASHER DIN0125-A 6,4

0125060003

Unavailable

21

FOOTREST L/S EXC 2017

79603040000

Unavailable

22

FOOTREST R/S EXC 2017

79603041000

Unavailable

23

washer DIN 125 A 10.5

0125100003

Unavailable

24

FOOTREST SPRING R/S 2016

79003044000

Unavailable

25

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

26

FOOTREST SPRING L/S 2016

79003045000

Unavailable

27

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

28

FOOTREST-SET

79603040033

Unavailable

29

HH collar screw M5x10 TX30

0025050106

Unavailable

30

Bush f. frame protection 03

54803092060

Unavailable

31

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

32

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

33

Frame protection set

7910309410030

Unavailable

34

BLIND RIVET NUT M6 KNURLED

79003002080

Unavailable

35

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

36

Hexagon nut DIN934 M8

0934080003

Unavailable

37

Cable bracket d8

79711013010

Unavailable

38

Cover control head sheet

79111013010

Unavailable

39

Cable holder throttle cable gu

79711013000

Unavailable

40

AH-COLLAR SCREW M8X15 TORX45

0035080156S

Unavailable

41

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

98

CHAIN SLIDING KIT BELOW CPL.16

79003053010

Unavailable

99

SPROCKET COVER KIT

79403096010

Unavailable
