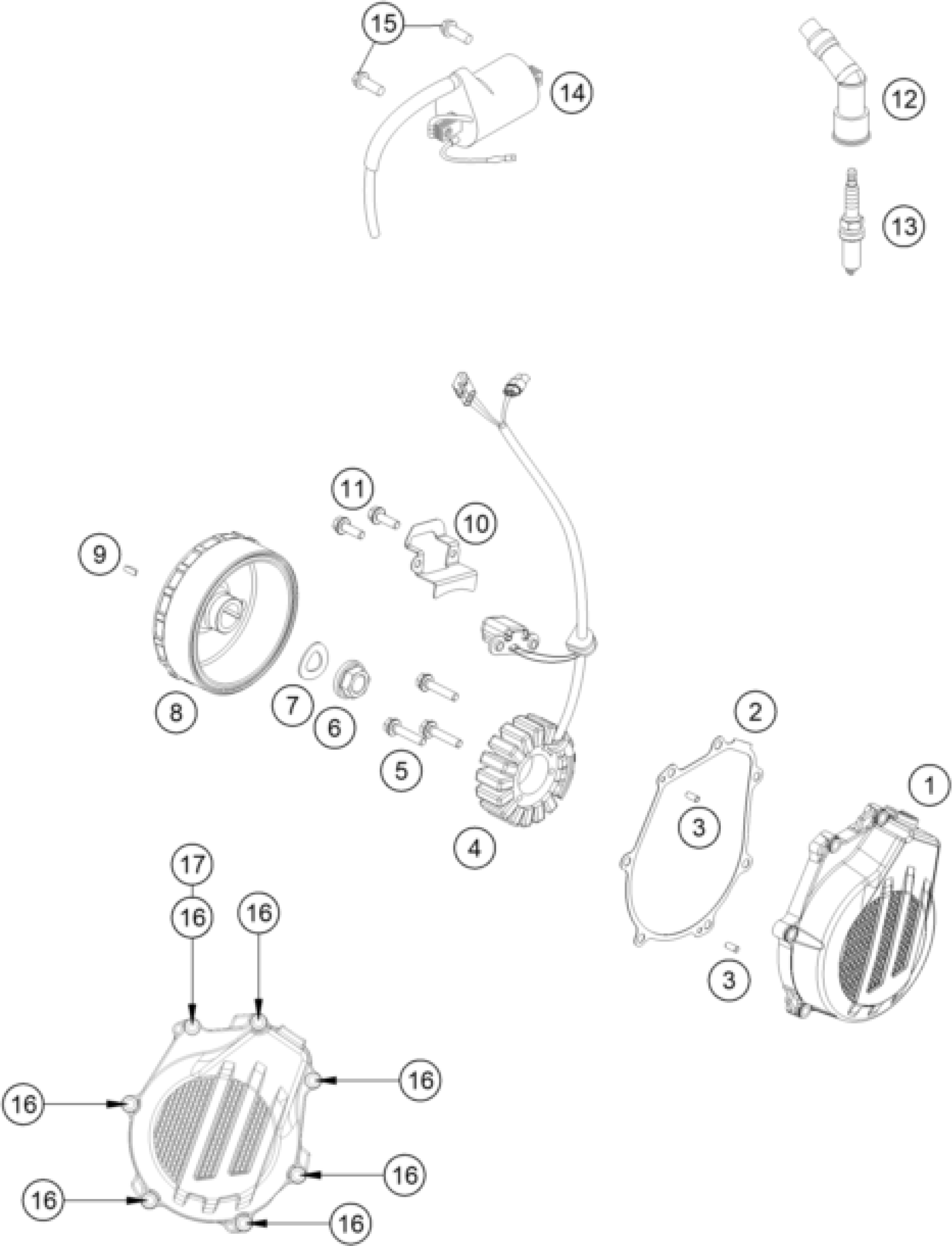

KTM 450 EXC-F 2017 IGNITION SYSTEM Diagram

#

Description
Price

6

COLLAR NUT M12X1 R/S

49030021000

Unavailable

7

SPRING WASHER DIN0137-B12

0137120000

Unavailable

8

ROTOR EXC 08

78039205000

Unavailable

1

IGNITION COVER EXC

7943050200015

Unavailable

2

IGNITION COVER GASKET

79430040000

Unavailable

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

4

STATOR

79239104000

Unavailable

5

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

9

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

10

CABLE BRACKET

79430502050

Unavailable

11

HH collar screw M5x16 TX30

0025050166

Unavailable

12

SPARK PLUG CONNECTOR

78039090100

Unavailable

13

spark plug

77839093000

Unavailable

14

Ignition coil

58439006000

Unavailable

15

COLLAR SCREW M6X18 ISA30

0026060186

Unavailable

16

HH collar screw M6x25 TX30

0025060256

Unavailable

17

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable
