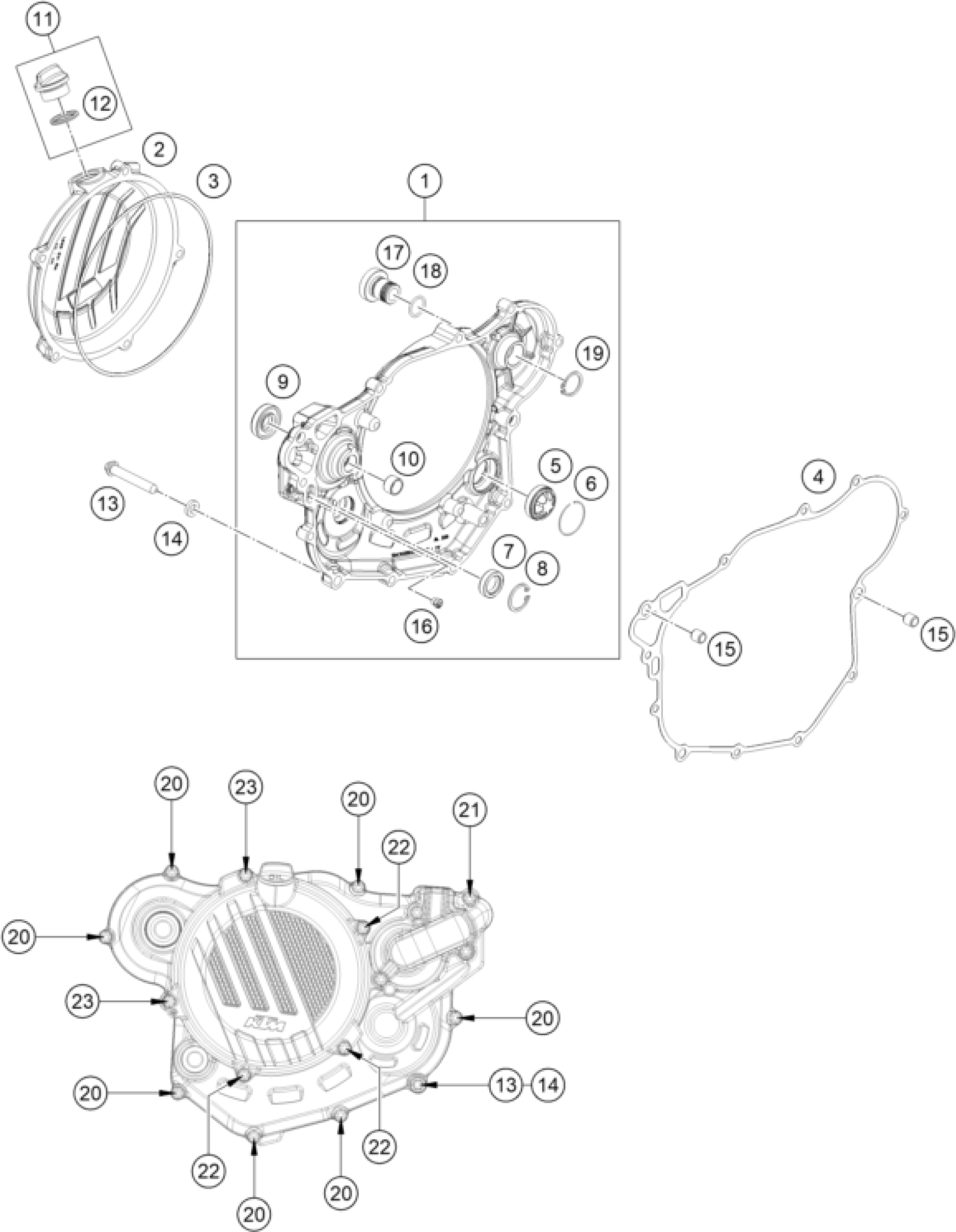

KTM 450 EXC-F 2017 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

79430501044

Unavailable

2

OUTER CLUTCH COVER

7943002600015

Unavailable

3

GASKET - CLUTCH OUTER COVER

78130027000

Unavailable

4

INNER CLUTCH COVER GASKET

79430525000

Unavailable

5

OIL SIGHT GLASS

59030019200

Unavailable

6

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

7

radial shaft seal 14x24x6 B

0760142460

Unavailable

8

CIRCLIP DIN0472-24X1.2

0472024120

Unavailable

9

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

10

FRICTION BEAR. BUSH BALANC.SH.

79430057010

Unavailable

11

Oil filler cap cmpl. M24x3

79430020033

Unavailable

12

O-RING 19,00X3,00 NBR

0770191015

Unavailable

13

LOCATING SCREW

78030080000

Unavailable

14

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

15

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

16

MAIN JET 145

57031523145

Unavailable

20

HH collar screw M6x25 TX30

0025060256

Unavailable

21

HH collar screw M6x30 TX30

0025060306

Unavailable

22

HH collar screw M6x20 TX30

0025060206

Unavailable

23

HH collar screw M6x50 TX30

0025060506

Unavailable

17

KICK STARTER PLUG

83033056100

Unavailable

18

O-ring 16x2 Viton 75

0770160021

Unavailable

19

CIRCLIP DIN0471-19X1,2

0471190120

Unavailable
