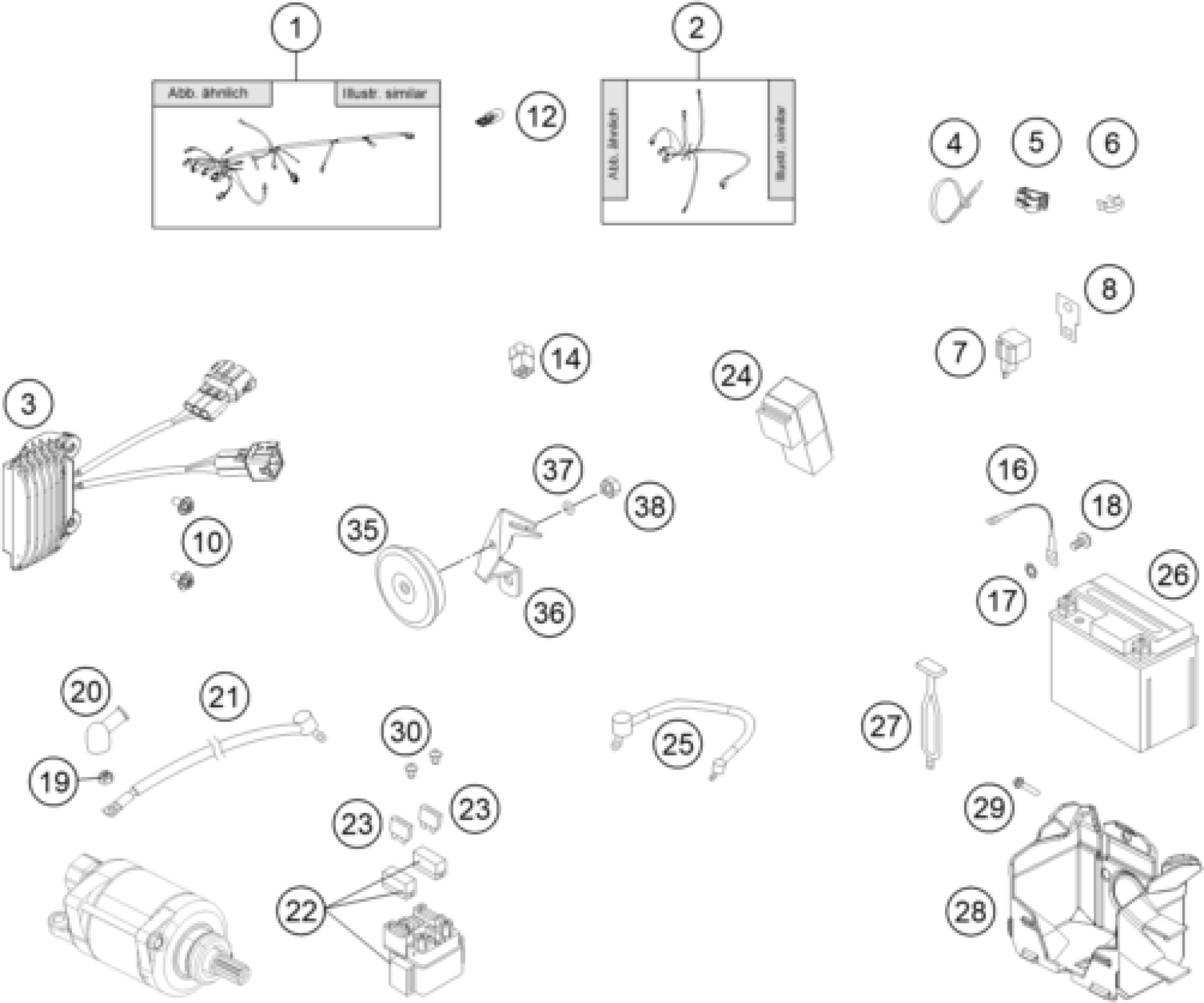

KTM 450 EXC 2013 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS EFI VMT. EU/AUS

78111075033

$430.56

2

WIR.HARN.LIGHT EFI KPL. EU 12

78111079000

$73.39

3

VOLTAGE REGULATOR

78111034000

$212.98

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

6

WIRING HOLDER 16MM

57013072100

$1.49

7

FLASHER UNIT 97

44611207200

$49.83

8

BRACKET FOR FLASHER RELAY

58211031100

$5.70

10

COLLAR SCREW M6X12 TX

0023060123

$2.05

12

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

14

DUMMY PLUG AN 4-PIN

81211096000

$8.69

16

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

17

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

19

Self lock. nut DIN985-M6-A2

0985060003

$2.05

20

Protection cap for starter eng

77240099000

$6.35

21

STARTERCABLE 700 MM '97

58411059100

$23.65

22

Starter reley 12V 99

58211058000

$72.64

23

Plug-in fuse, big 20A

58011109120

$1.49

24

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

25

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

26

BATTERY 12V 4AH YTX5L-BS

58511053000

$112.10

27

RUBBER L=145MM

50303018000

$6.44

28

BATTERY CASE

78111055000

$9.15

29

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

30

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

35

DC HORN 12V 07

50311060200

$32.44

36

HORN BRACKET EXC 08

78011061000

$5.23

37

WASHER DIN0125-A 5,3

0125050003

$1.49

38

HEXAGON NUT DIN0934-M 5

0934050003

$2.05
