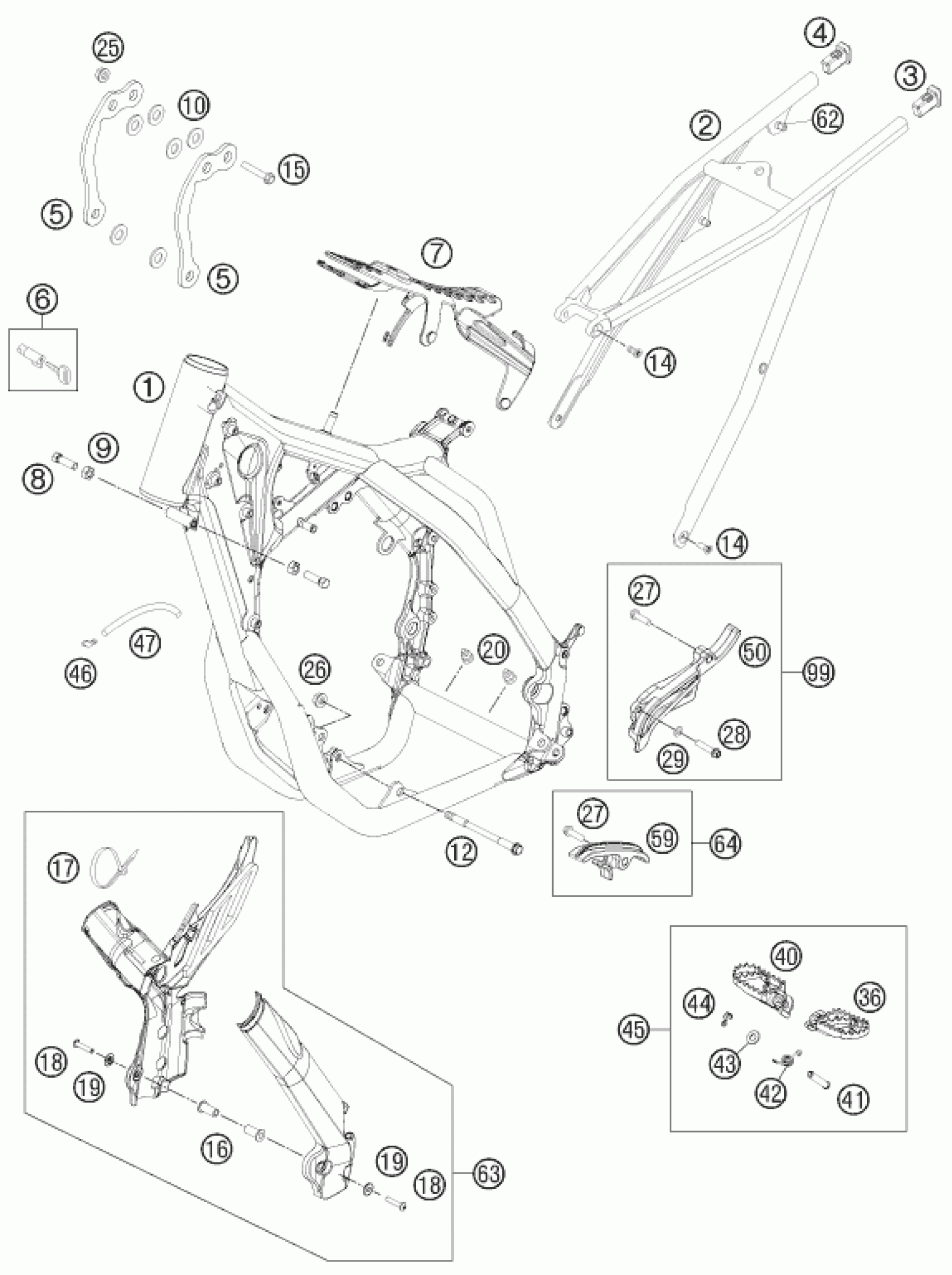

KTM 450 EXC 2013 FRAME Diagram

FRAME BLACK M. ''781L1''

7810300110033

$1,589.69

SUB FRAME SX

77203002000

$391.48

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

REINFORCING 2012

78103013000

$11.02

STEERING HEAD LOCK 08

78003035000

$20.94

TANK REST RUBBER

77207012000

$9.44

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

Hexagon nut DIN934 M8

0934080003

$2.05

WASHER 8,5X18X1 INOX

77003013050

$3.08

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

COU.SUNK SCR. AH ISO7380 M5X25

0738050250

$1.49

Bush f. frame protection 03

54803092060

$4.11

PLASTIC CAP SFL10

54403135000

$2.05

Self locking nut M8 10.9

54310086200

$3.08

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

HH collar screw M8x30

0025080306

$3.08

HH collar screw M6x35 TX30

0025060356

$3.08

WASHER DIN0125-A 6,4

0125060003

$1.49

FOOTREST L/S 08

78003040050

$43.66

FOOTREST R/S 08

78003041050

$43.66

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

washer DIN 125 A 10.5

0125100003

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

FOOTREST L/S + R/S CPL. 09

78003040033

$116.02

ANGLE PIECE '97

50303089000

$5.23

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

CHAIN GUARD 450/500 EXC 12

78103096000

$15.51

CHAIN SLIDER LOWER PART CPL.

77203053000

$9.06

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

PLASTIC FRAME PROTECTION SET

77203094000

$51.98

CHAIN SLIDING KIT BELOW CPL.11

77203053010

$18.78

SPROCKET COVER KIT

78103096010

Unavailable
