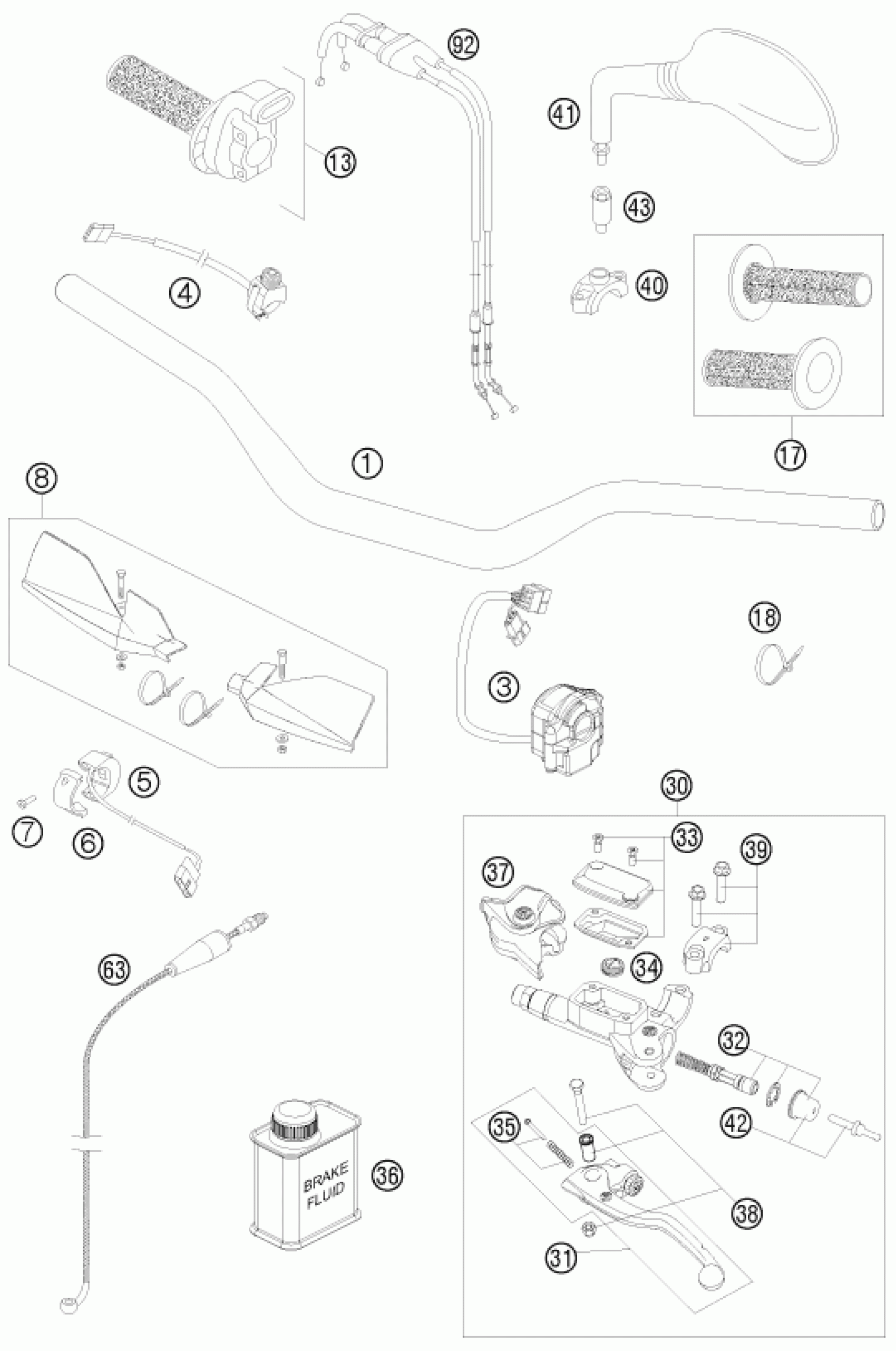

KTM 450 EXC 2010 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM

7800200100017

Unavailable

3

LIGHT SWITCH L/S 08

76511070000

Unavailable

4

STARTER CONTROL 04

59411074000

Unavailable

5

ENGINE STOP SWITCH CEV

50311074100

Unavailable

6

CLAMP ENGINE STOP SWITCH

50311074050

Unavailable

7

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

Unavailable

8

HAND GUARDS CPL.L/S+R/S OR. 06

7700207900004

Unavailable

13

THROTTLE GRIP CPL. 4-ST. 09

77002010100

Unavailable

17

GRIP-SET GRAY/ORANGE 09

54802021200

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

30

MASTER CYLINDER CPL. 06

54802030044

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 06

54802032000

Unavailable

33

COVER HYD. CLUTCH CPL.

54802003000

Unavailable

34

VALVE

54802051000

Unavailable

35

BOLT KPL.

54802052000

Unavailable

36

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

CLAMP CPL. 06

54802005100

Unavailable

40

Clamp for mirror

58012040150

Unavailable

41

MIRROR L/S 98

58412040000

Unavailable

41

MIRROR R/S 98

58412041000

Unavailable

42

Push rod cmpl.

54802046000

Unavailable

43

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

63

CLUTCH PIPE 06

54832063000

Unavailable

92

THROTTLE CABLE 250 SXF 2005

77002091000

Unavailable
