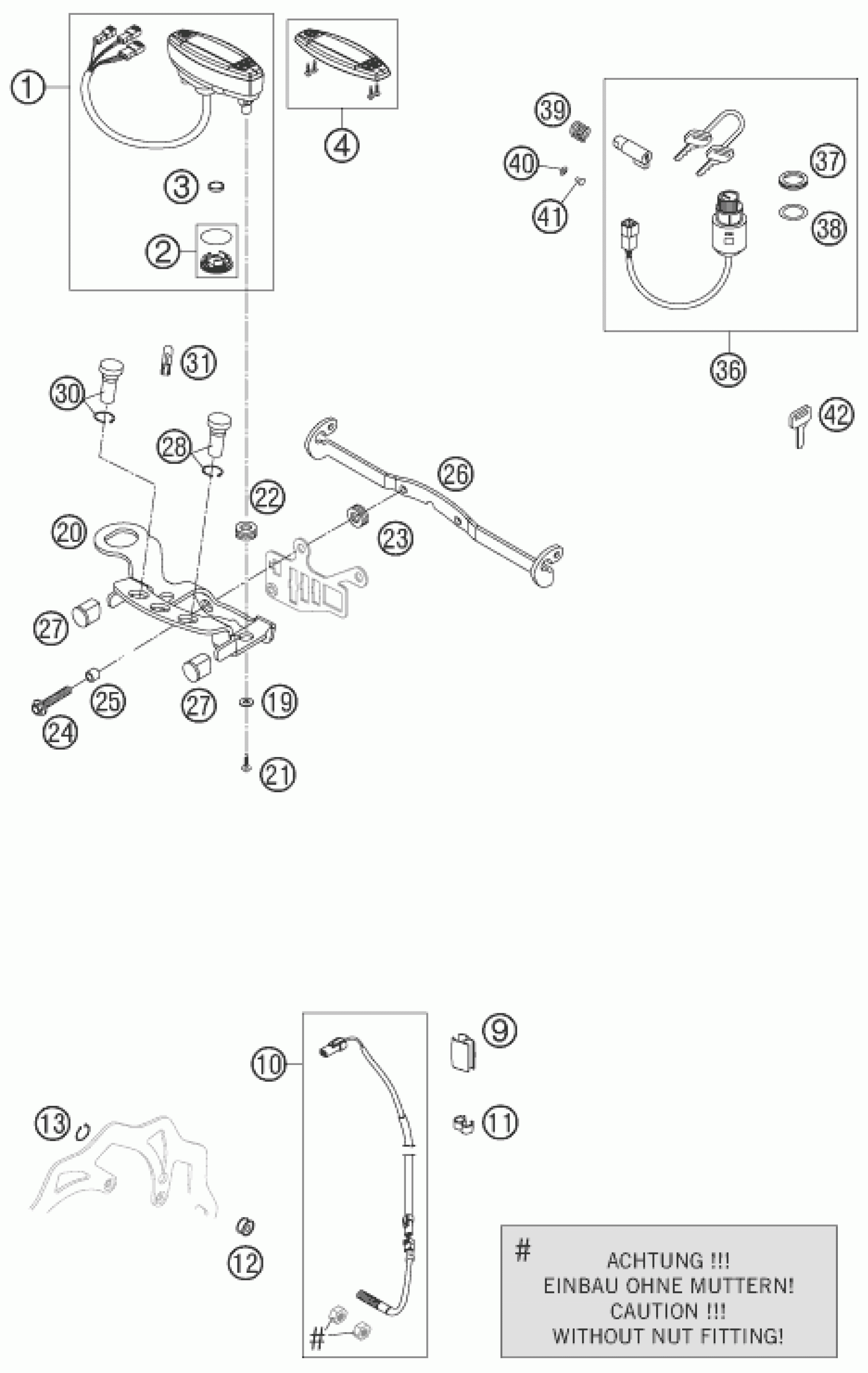

KTM 450 EXC <2007> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

36

IGNITION LOCK CPL. ZADI '99

50311065000

Unavailable

37

IGNITION LOCK NUT M24X1

50311066050

Unavailable

38

WASHER F. IGNITION LOCK 03

58411066450

Unavailable

39

SPRING L=16MM

12003007052

Unavailable

40

SPRING WASHER DIN137 B3

0137030003

Unavailable

41

GROOVED NAIL RIVETO AF10

45002040091

Unavailable

42

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

24

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

25

spacer bushing for speedometer

58314060050

Unavailable

1

SPEEDOMETER MPH F. 21'' 200

54814069100

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

Unavailable

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

4

SPEEDOMETER TOP PART 05

54814069020

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

11

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

19

washer DIN 9021 A - 5.3

0021050003

Unavailable

21

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

22

rubber grommet 16x10.8x3

58214069051

Unavailable

23

rubber grommet D=8mm open

31008060000

Unavailable

20

SPEEDOM.BRACKET 625 SXC+SMC 05

58614060100

Unavailable

26

FLASHER BRACKET 2002

58314033100

Unavailable

28

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

30

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

9

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

31

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

27

PLUG CAP KV8 05

58608003000

Unavailable
