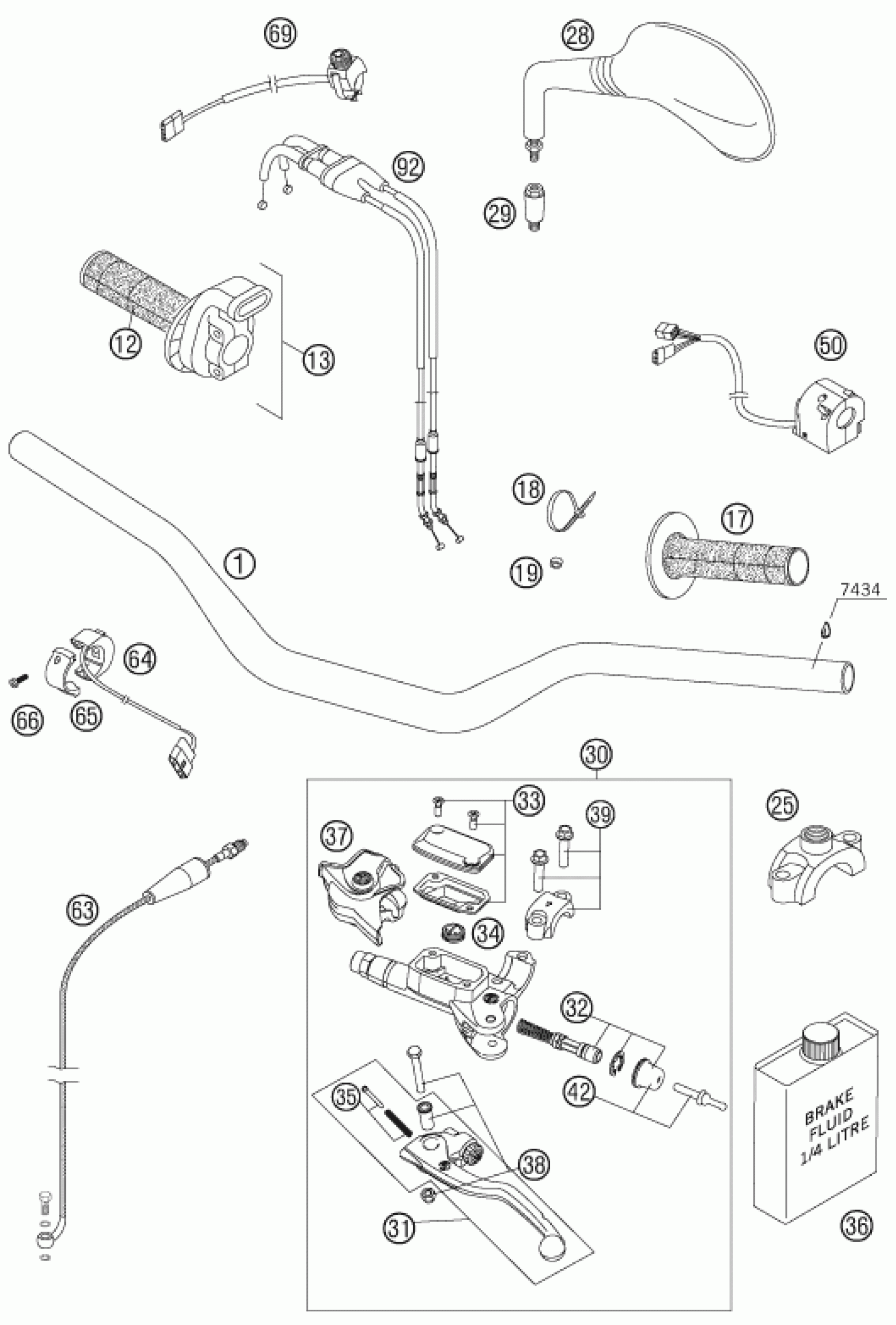

KTM 450 EXC <2007> HANDLEBAR, CONTROLS Diagram

#

Description
Price

25

Clamp for mirror

58012040150

Unavailable

42

Push rod cmpl.

54802046000

Unavailable

1

HANDLEBAR MAGURA SX 28MM SL 07

59002001300

Unavailable

12

TWIST GRIP COVER RENTHAL 04

54802013000

Unavailable

13

THROTTLE GRIP CPL. RAC. 04

59402010000

Unavailable

17

FIXED GRIP RENTHAL 04

54802039000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

19

SPACER BUSHING 6X10X5

50301089000

Unavailable

28

MIRROR L/S 98

58412040000

Unavailable

28

MIRROR R/S 98

58412041000

Unavailable

29

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

30

MASTER CYLINDER CPL. 06

54802030044

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 06

54802032000

Unavailable

33

COVER HYD. CLUTCH CPL.

54802003000

Unavailable

34

VALVE

54802051000

Unavailable

35

BOLT KPL.

54802052000

Unavailable

36

BRAKE FLUID DOT 4.0

306054

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

CLAMP CPL. 06

54802005100

Unavailable

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

50

LIGHT SWITCH 06

61011070100

Unavailable

63

CLUTCH PIPE 06

54832063000

Unavailable

69

STARTER CONTROL 04

59411074000

Unavailable

92

THR.CABLE''OPEN-CLOSE''KEIHIN

59002091300

Unavailable

64

ENGINE STOP SWITCH CEV

50311074100

Unavailable

65

CLAMP ENGINE STOP SWITCH

50311074050

Unavailable

66

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

Unavailable
