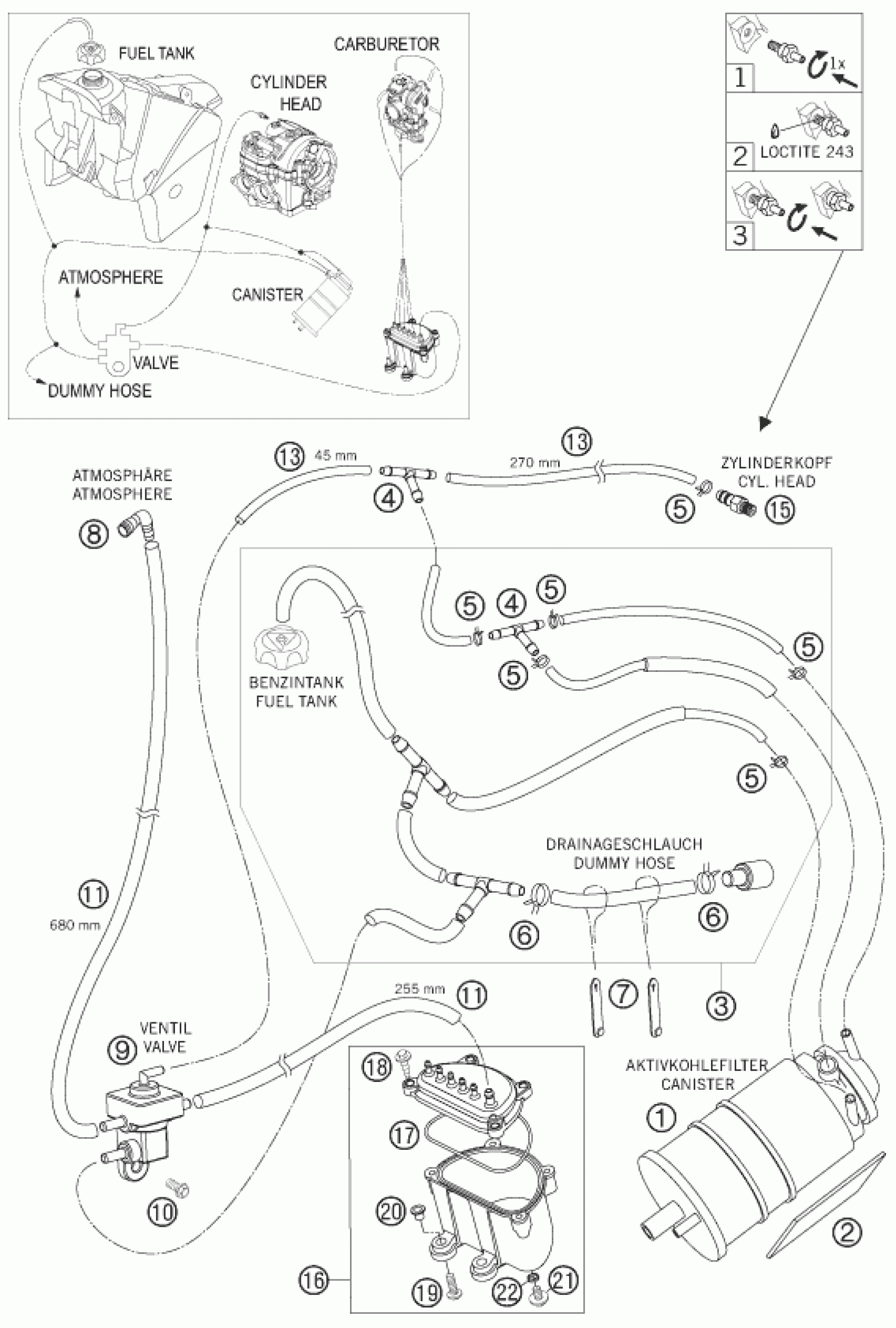

KTM 450 EXC <2007> EVAPORATIVE CANISTER Diagram

#

Description
Price

4

T-CONNECTOR NORMA TS-4 07

59415021000

Unavailable

9

VALVE MIKUNI CI-41-05

60015031000

Unavailable

10

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

11

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

13

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

19

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

15

VACUUM CONECTION M6/3MM '97

58336020190

Unavailable

16

INTERCEPTING TANK UNIVERSAL 07

59431096100

Unavailable

20

spacer bushing for speedometer

58314060050

Unavailable

22

O-RING 6,07X1,78 FPM75

0770060018

Unavailable

2

METAMOLL 90X45X3MM 03

59003001099

Unavailable

7

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

8

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

21

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

17

0-RING 74,00X2,00 SILICONE

0770740021

Unavailable

18

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

6

HOSE CLAMP YDNAC 10119 11MM

50231005000

Unavailable

5

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

1

Evaporative Canister univ. 07

59415001000

Unavailable

3

Evap. Canist. Hose Set cpl. 07

59415001044

Unavailable
