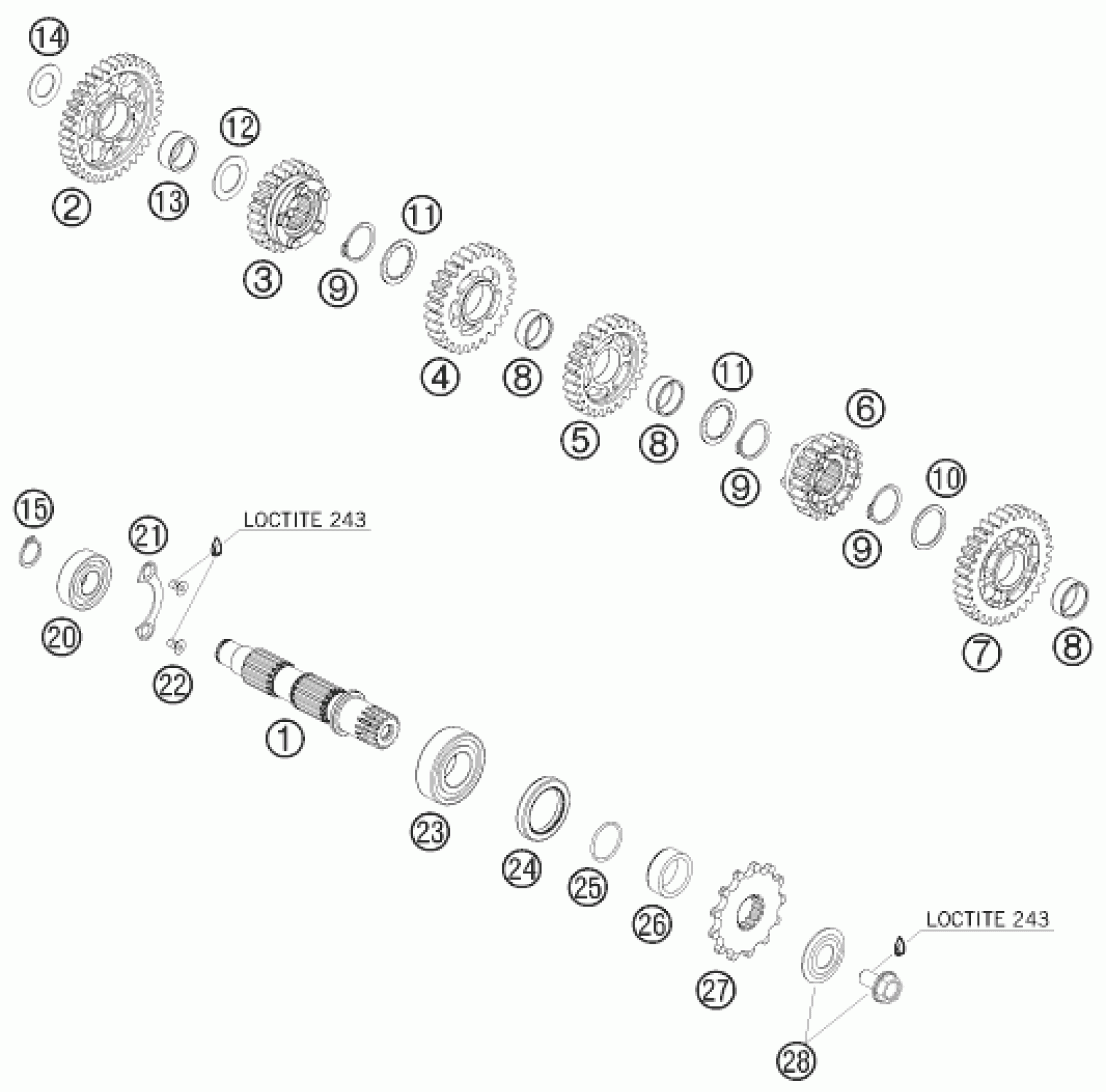

KTM 400 XC-W 2010 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTERSHAFT 08

78033010000

Unavailable

2

IDLER GEAR 1. GEAR

78033011100

Unavailable

3

SLIDING GEAR 5.G. 08

78033015000

Unavailable

4

IDLER GEAR 3.G. 08

78033013000

Unavailable

5

IDLER GEAR 4.G. 08

78033014000

Unavailable

6

SLIDING GEAR 6.G. 08

78033016000

Unavailable

7

IDLER GEAR 2. GEAR

78033012100

Unavailable

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

9

CIRCLIP DIN0471-25X1,2

0471250120

Unavailable

10

STOP DISK 26 X 32 X 1,5

78033031000

Unavailable

11

STOP DISK 23 X 32 X 1,5

78033033000

Unavailable

12

Shim 20x31.9x1

59033080000

Unavailable

13

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

14

STOP DISC 17,2X30X1

56033030000

Unavailable

15

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

20

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

21

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

22

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable

23

cylindrical roller bearing NJ2

49030023000

Unavailable

24

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

25

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

26

SPACER BUSHING 12MM

54633014100

Unavailable

27

FRONT SPROCKET 13-T

50033029013

Unavailable

27

FRONT SPROCKET 14-T

50033029014

Unavailable

27

FRONT SPROCKET 15-T

50033029015

Unavailable

28

SCREW 10.9+SPRING WASHER

59033034044

Unavailable
