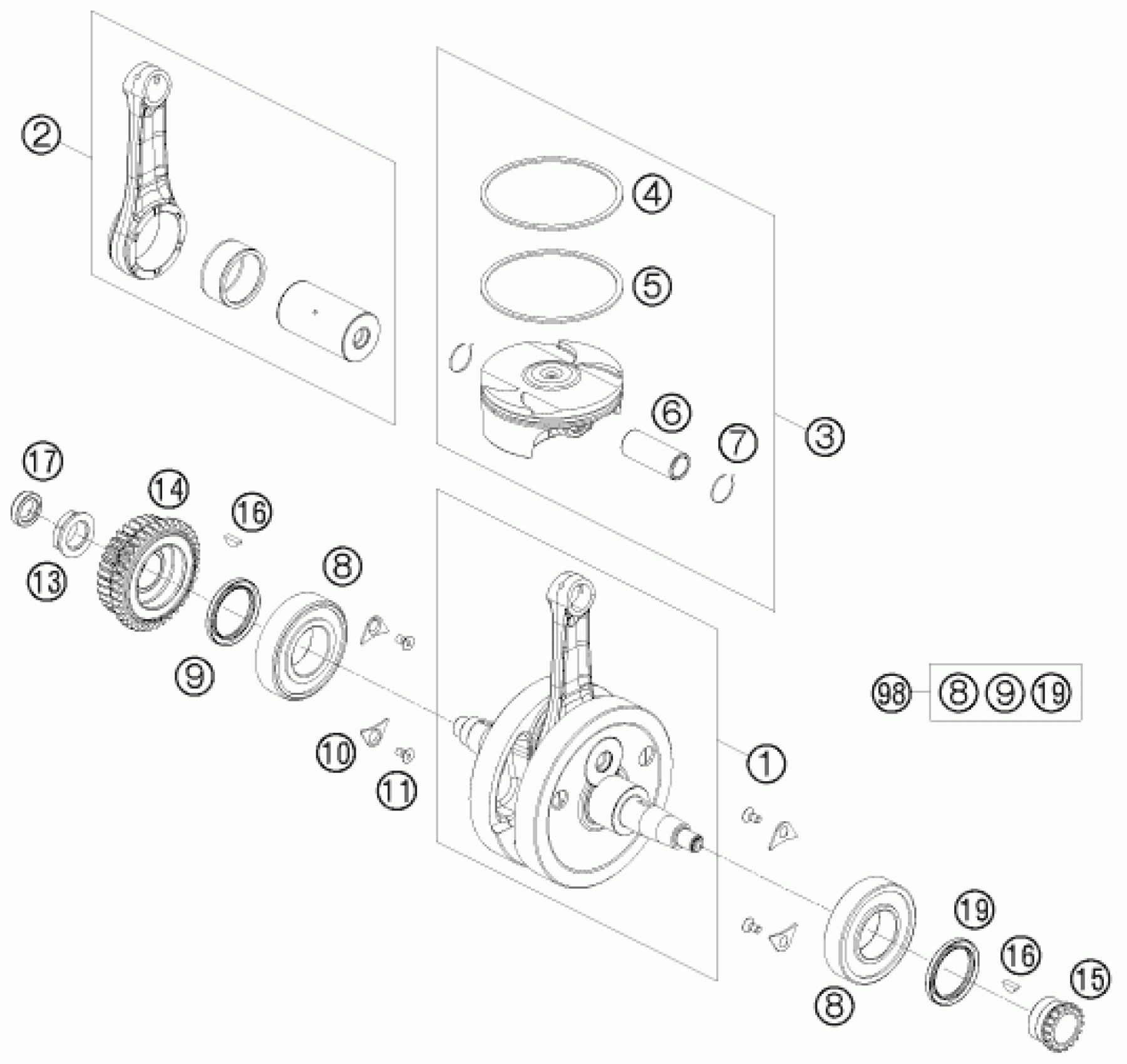

KTM 400 XC-W 2010 CRANKSHAFT, PISTON Diagram

#

Description
Price

98

CRANKSHAFT REP.KIT 400-530 EXC

00050002309

Unavailable

1

CRANKSHAFT CPL.

78330018100

Unavailable

2

CON ROD REP.-KIT 400 09

78330015044

Unavailable

3

PISTON CPL.

78330007100 I

Unavailable

3

PISTON CPL.

78330007100 II

Unavailable

4

COMPRESSION RING

78030030100

Unavailable

5

OIL SCRAPER PISTON RING

78030032200

Unavailable

6

PISTON PIN 08

78030033000

Unavailable

7

CIRCLIP

77330074000

Unavailable

8

BALL BEARING 6207 TM-SX07E 39

0625062071

Unavailable

9

SHAFT SEAL RING 35X47X7 A-DUO

0760354773

Unavailable

10

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

11

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable

13

NUT PRIMARY WHEEL M20X1,5

78030029200

Unavailable

14

PRIMARY WHEEL

78032000333

Unavailable

15

TIMING GEAR 18T.

78036014200

Unavailable

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

17

radial shaft seal 14x24x6 B

0760142460

Unavailable

19

SHAFT SEAL RING 35X47X7 VITON

0760354774

Unavailable
