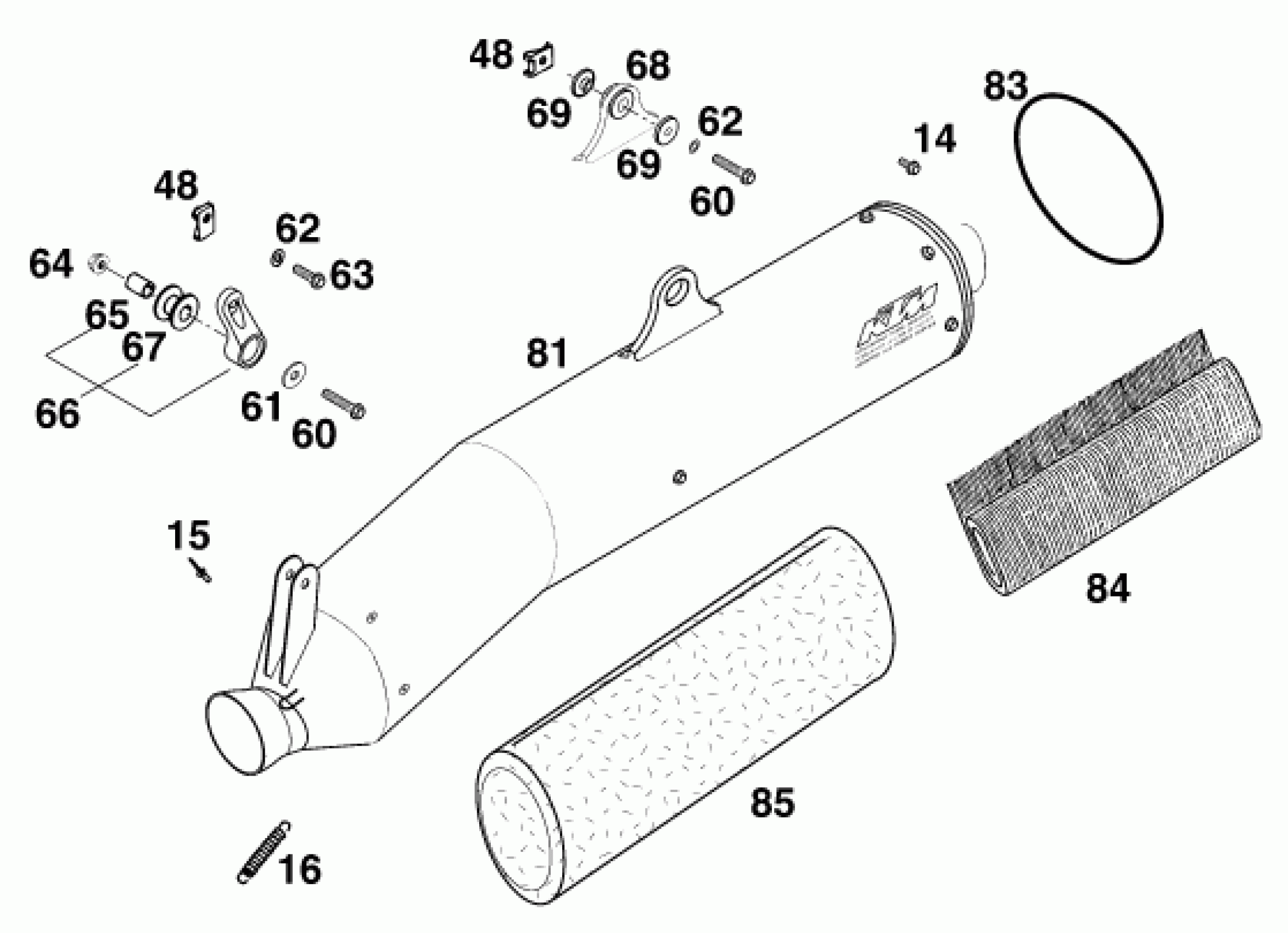

KTM 400 SXC 2000 MAIN SILENCER Diagram

#

Description
Price

14

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

15

DUMMY RIVET 4,8X 8,0 NIRO

0011480802

Unavailable

16

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

48

clip nut M6

54603048100

Unavailable

60

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

61

Washer DIN9021-A 6.4

0021060003

Unavailable

62

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

63

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

64

SELF LOCKING NUT M6

56509064000

Unavailable

65

BUSHING 7X12X15,4

54305069000

Unavailable

66

SILENCER BRACKET CPL. SHORT'96

58305165244

Unavailable

67

damp. component silicone grey

54305068100

Unavailable

68

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

69

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

81

SILENCER SXC SPARKY '00

58305082000

Unavailable

83

O-RING 82,14X3,53 SILICONE

0770223601

Unavailable

84

STUFFING YARN REAR 90 GRAMM'98

58305078002

Unavailable

85

STUFFINGYARN FRT 400GRAMM'98

58305078000

Unavailable
