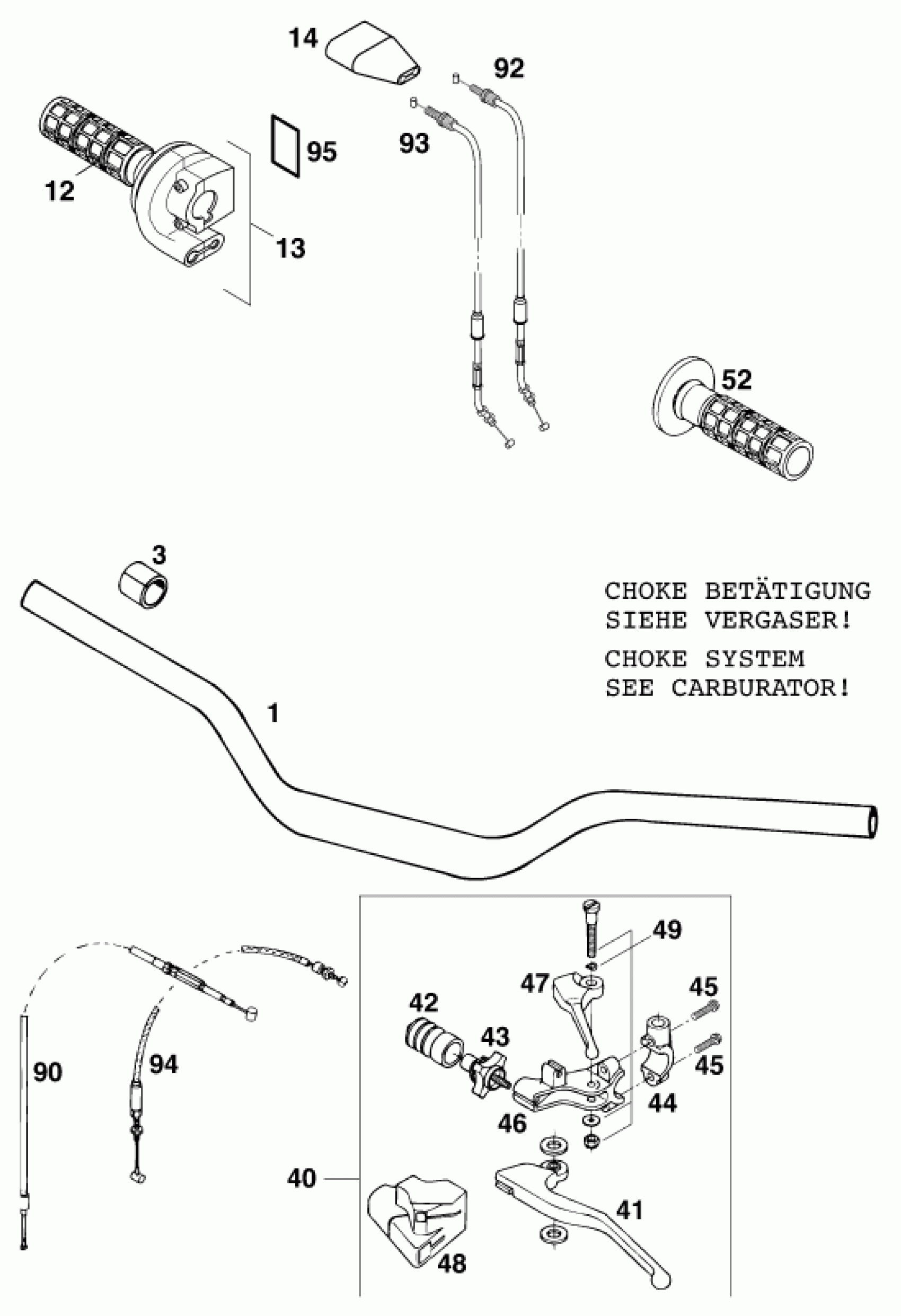

KTM 400 SXC 2000 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

3

SPACER BUSHING 22X28X22PVC

50202010000

Unavailable

12

TWIST GRIP COVER DOMINO

58302003000

Unavailable

13

THROTT.GRIP CPL. DOMINO-MIKUNI

58402010400

Unavailable

14

PROTECT.COVER RXC/DUKE USA '95

58302016200

Unavailable

40

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

Unavailable

41

CLUTCH LEVER LOOSE SILVER '97

58402042000

Unavailable

42

CLUTCH LEVER BOOT '95

58302126000

Unavailable

43

ADJUSTMENT SCREW CPL.M7

58302043000

Unavailable

44

CLAMP MIRROW M10x1,25

58302044000

Unavailable

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

46

JOINT DOMINO

58302023000

Unavailable

47

DECOMPRESSION LEVER LOOSE

58302047000

Unavailable

48

PROTECTING COVER

58302048000

Unavailable

49

LEVER SCREW CPL.

58302049000

Unavailable

52

FIXED GRIP DOMINO '93

58302052000

Unavailable

90

CLUTCH CABLE 4T L=1115MM '99

58402090000

Unavailable

92

THROTT.CABLE''CLOSE''DOM.-MIKU

58402092000

Unavailable

93

THROTT.CABLE''OPEN''DOM.-MIKUN

58402192000

Unavailable

94

DECOMPR. CABLE L=693,5 LC4 '99

58302094200

Unavailable

95

CAP FOR THROTTLE GRIP '99

58402014000

Unavailable
