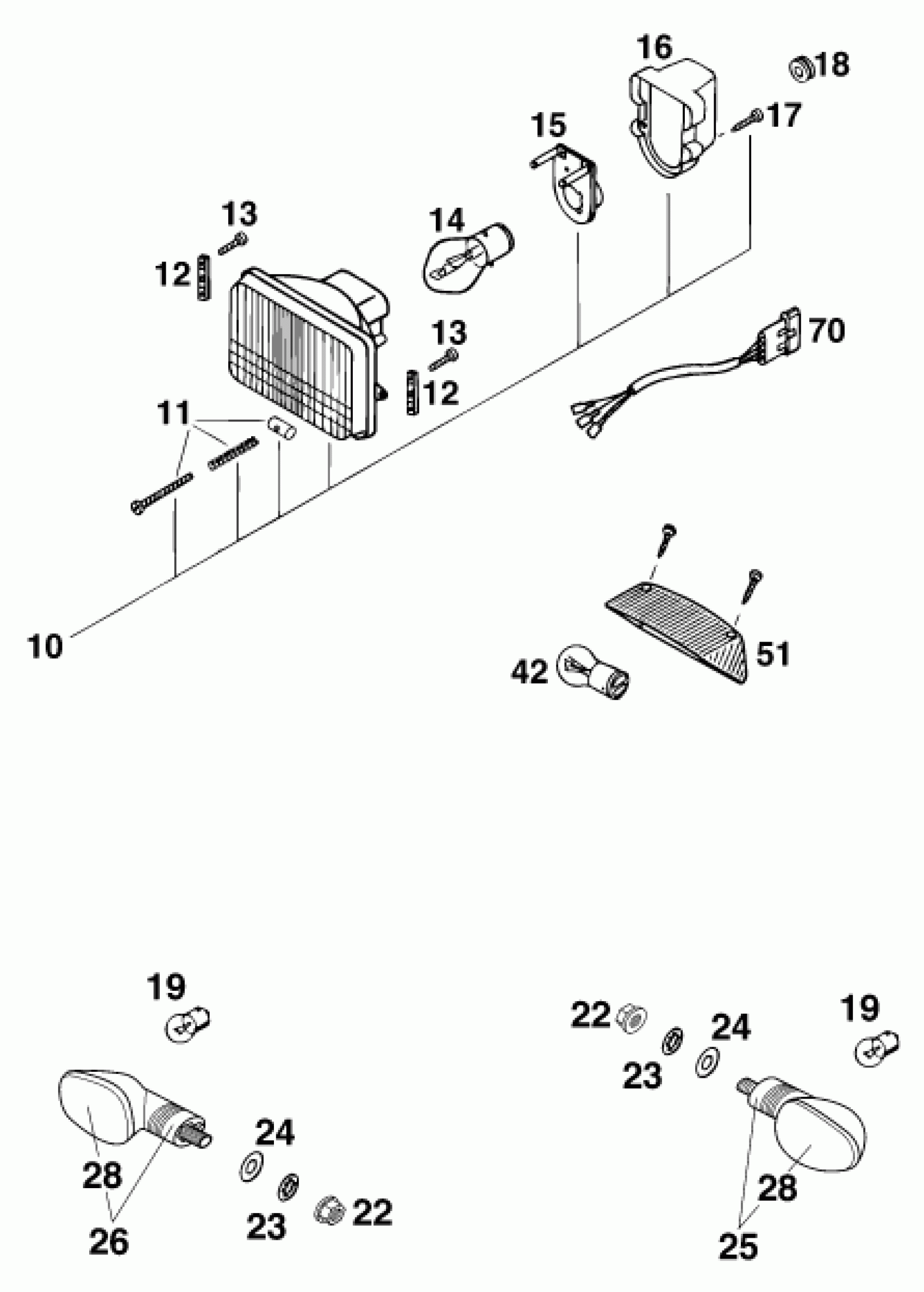

KTM 400 SX-C <1999> LIGHTING SYSTEM Diagram

#

Description
Price

10

HEADLIGHT CPL. ELCOM '93

50211610000

Unavailable

11

ADJUSTING SCREW CPL. M4X40

50211631000

Unavailable

12

HEADLIGHT BRACKET '93

50211410050

Unavailable

13

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

14

BILUX-BULB 12V 35/35W BA20D

44111038000

Unavailable

15

BULB SOCKET

57011036000

Unavailable

16

COVER CAP

50211637000

Unavailable

17

SHEET MET.SCR.DIN7981-3,5X13

0981350133

Unavailable

18

rubber grommet D=8mm open

31008060000

Unavailable

19

BULB 12V 10W (BA15S)

44111015100

Unavailable

22

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

23

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

24

washer DIN 125 A 10.5

0125100003

Unavailable

25

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

Unavailable

26

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

Unavailable

28

FLASHER LENS L/S & R/S '98

58414028000

Unavailable

42

BULB 12V 21/5W (BAY15D)

57011045000

Unavailable

51

REAR LIGHT LENS ACERBIS '93

58311241000

Unavailable

70

* CABLE FOR HEADLIGHT '93

50211610010

Unavailable
