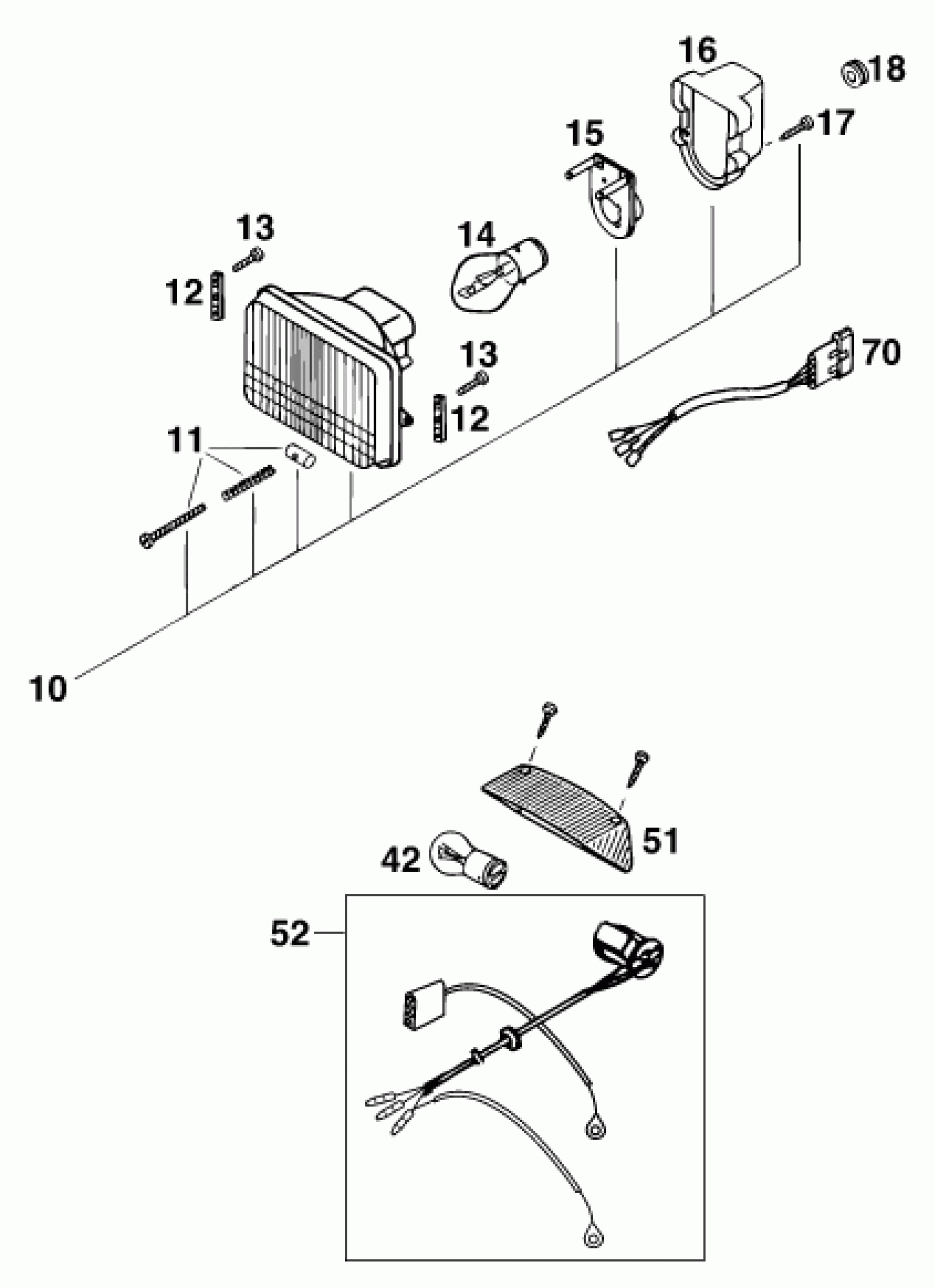

KTM 400 SX-C <1998> LIGHTING SYSTEM Diagram

#

Description
Price

10

HEADLIGHT CPL. ELCOM '93

50211610000

Unavailable

11

ADJUSTING SCREW CPL. M4X40

50211631000

Unavailable

12

HEADLIGHT BRACKET '93

50211410050

Unavailable

13

SPECIAL SCREW Z 3,5X10

0016035103

Unavailable

14

BILUX-BULB 12V 35/35W BA20D

44111038000

Unavailable

15

BULB SOCKET

57011036000

Unavailable

16

COVER CAP

50211637000

Unavailable

17

SHEET MET.SCR.DIN7981-3,5X13

0981350133

Unavailable

18

rubber grommet D=8mm open

31008060000

Unavailable

42

BULB 12V 21/5W (BAY15D)

57011045000

Unavailable

51

REAR LIGHT LENS ACERBIS '93

58311241000

Unavailable

52

*TAIL LIGHT WIRING ACERBIS '95

58311176100

Unavailable

70

* CABLE FOR HEADLIGHT '93

50211610010

Unavailable
