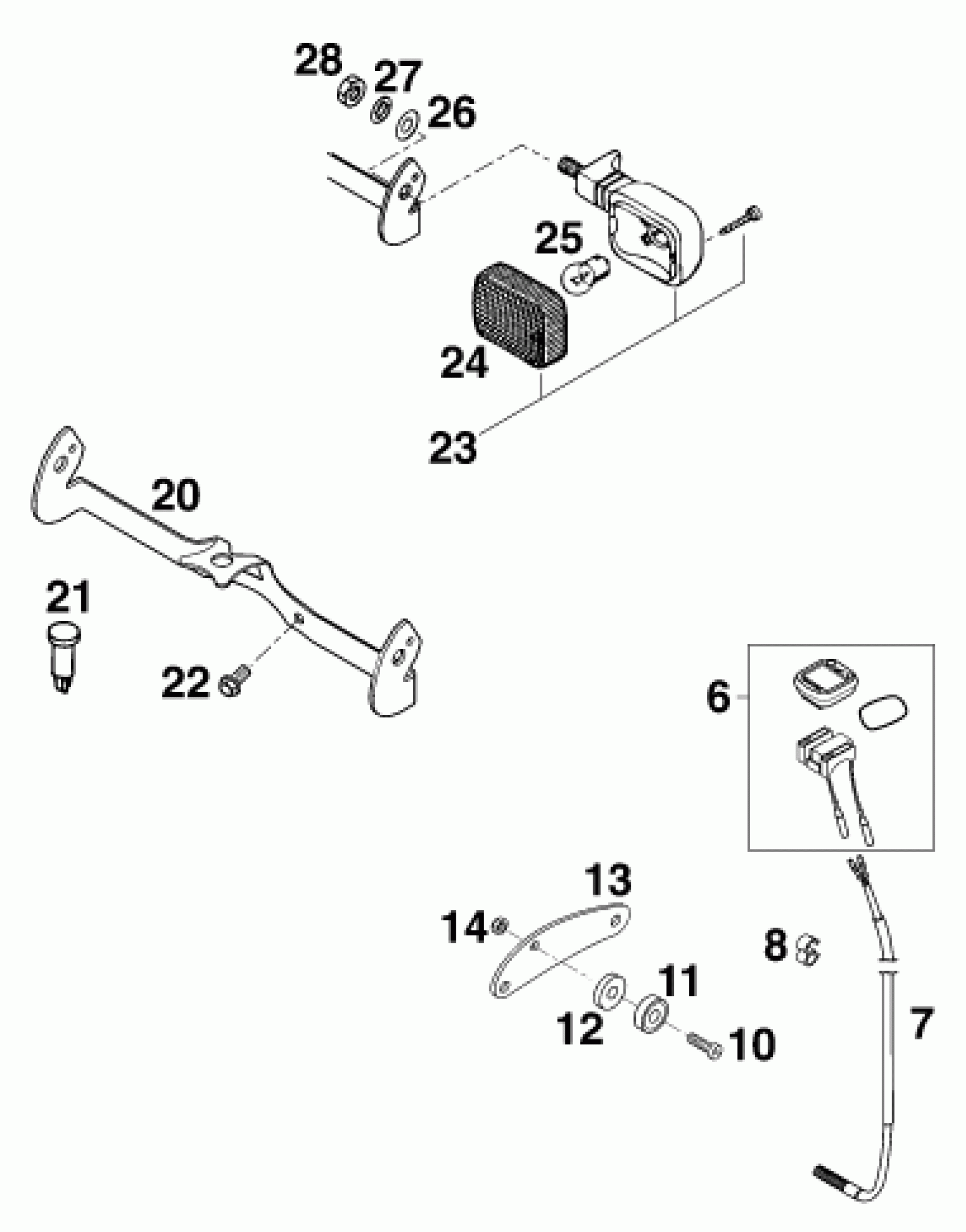

KTM 400 SX-C <1998> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

0

FLASHER REAR L/S / FRONT R/S

58311112000

Unavailable

6

SPEEDOMET.SIGMA SPORT 500 EL

58314069000

Unavailable

7

CABLE FOR SIGMA 500 '98

58314069151

Unavailable

8

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

10

CYL.HEAD SCREW DIN0084-M 5X25A

0084050253

Unavailable

11

MAGNET LOOSE '97

58314069050

Unavailable

12

STEEL WASHER 6,4X17X3

50232050001

Unavailable

13

BRACKET FOR TRIPPMASTER SENSOR

58312099073

Unavailable

14

Self locking nut DIN 985 M5

0985050003

Unavailable

20

SPEEDOMETER BRACKET VDO '95

54611120400

Unavailable

21

FLASHER INDICATOR LIGHT GREEN

58011024200

Unavailable

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

23

FLASHER FRONT L/S / REAR R/S

58311012000

Unavailable

24

FLASHER LENS L/S AND R/S

58311013000

Unavailable

25

BULB 12V 10W (BA15S)

44111015100

Unavailable

26

washer DIN 125 A 10.5

0125100003

Unavailable

27

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

28

HEXAGON NUT DIN0934-M10X1,25

0934102003

Unavailable
