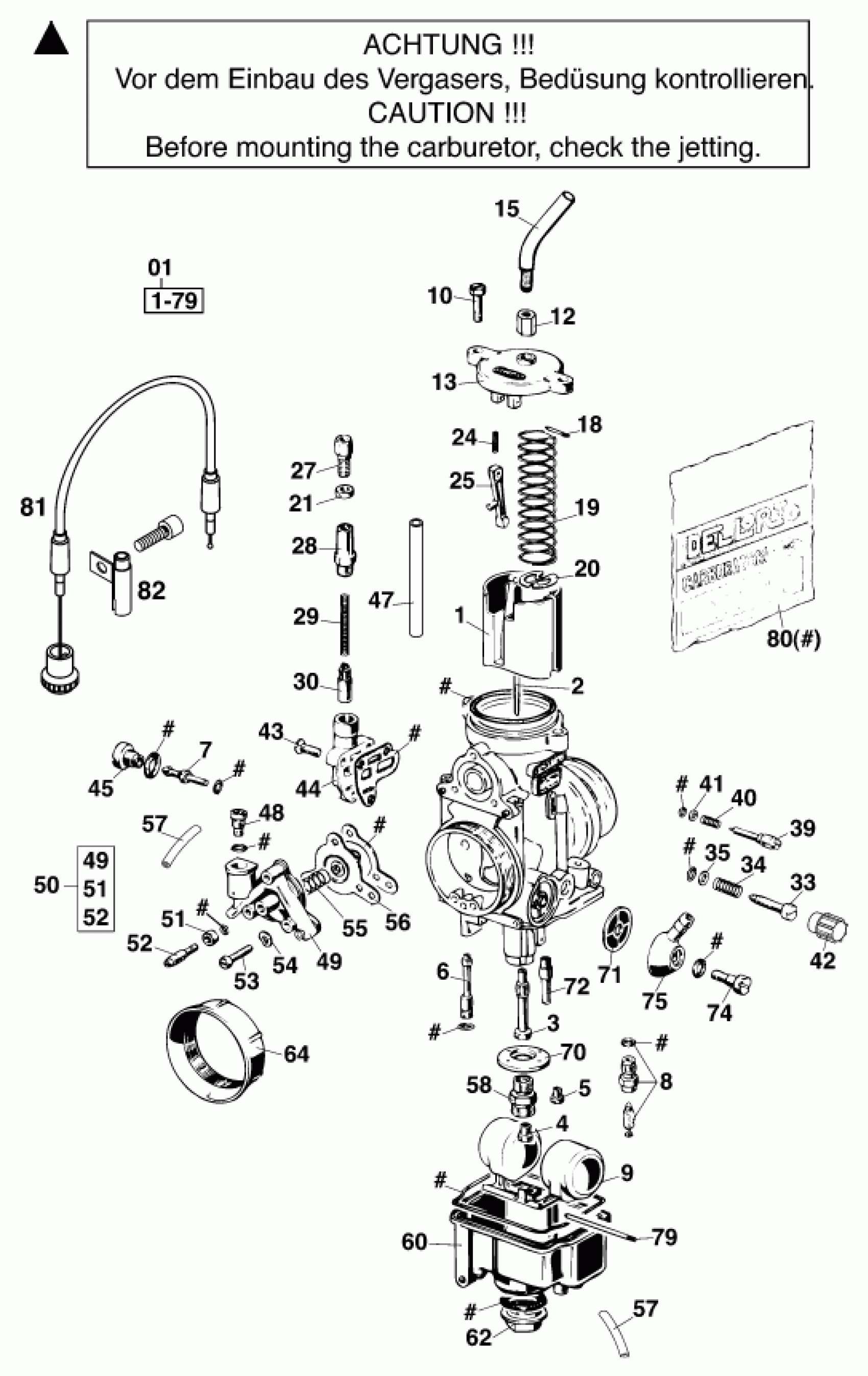

KTM 400 SX-C <1998> CARBURETOR Diagram

#

Description
Price

1

THROTTLE VALVE 50/1 DM=42MM

57231135000

Unavailable

1

CARBURETOR PHM 38 ND (100197)

57631001044

Unavailable

2

JET NEEDLE K32

49031134032

Unavailable

3

NEEDLE JET 265 AB

57031521265

Unavailable

4

MAIN JET 130

57031523130

Unavailable

4

MAIN JET 132

57031523132

Unavailable

4

MAIN JET 135

57031523135

Unavailable

4

MAIN JET 140

57031523140

Unavailable

4

MAIN JET 142

57031523142

Unavailable

4

MAIN JET 145

57031523145

Unavailable

4

MAIN JET 150

57031523150

Unavailable

5

JET 45

15131123045

Unavailable

5

JET 50

15131123050

Unavailable

5

JET 55

15131123055

Unavailable

6

STARTING JET 45

57031551045

Unavailable

7

ACCELERATING JET 33

57031566033

Unavailable

8

NEEDLE VALVE 300

57231120300

Unavailable

9

% FLOAT 8,5 GRAMME

57031509000

Unavailable

9

FLOAT

58331509000

Unavailable

10

HEXAGON NUT M 5X16

57031524000

Unavailable

12

SUPPORT BUSHING M6x0,75 WS=10

58031528000

Unavailable

13

CARBURETOR COVER

57231127000

Unavailable

15

TUBE F.CARBURETOR 400LC4-E '97

58431024000

Unavailable

18

* STUD 2,5X16

57031571000

Unavailable

19

SLIDING SPRING

57031530000

Unavailable

20

RETAINING PLATE

57031532000

Unavailable

21

HEXAGON NUT M 6X0,75 DIN0439

52031126000

Unavailable

24

SPRING

57031570000

Unavailable

25

PUMP LEVER

57031569000

Unavailable

27

ADJUSTMENT SCREW M6X0,75

57031525000

Unavailable

28

PLUG

57231155000

Unavailable

29

SPRING

57231153000

Unavailable

30

STARTING DEVICE

57031549000

Unavailable

33

ADJUSTMENT SCREW M5

57031519000

Unavailable

34

SPRING

52031116000

Unavailable

35

WASHER 5,1 X 8 X 0,8

57031573000

Unavailable

39

MIXTURE REGULAT.SCREW M7X0,75

57031517000

Unavailable

40

SPRING AIR ADJUST.SCREW

57031515000

Unavailable

41

WASHER 3,3 X 5,8 X 0,5

57031572000

Unavailable

42

KNURLED CAP PLASTIC

57031519100

Unavailable

43

OVAL HEAD SCREW DIN0964-M 4x14

0964040143

Unavailable

44

START.DEVICE BODY 4S

57231150100

Unavailable

45

JET HOLDER

57031567000

Unavailable

47

* SLIDE STOP L=56MM

58331029056

Unavailable

48

BLEEDER VALVE

57031565000

Unavailable

50

* PUMP HOUSING CPL.

57231160044

Unavailable

53

CYL.SCREW DIN0084-M 4X20 A

0084040203

Unavailable

54

* SPRING WASHER DIN0137-B 4

0137040003

Unavailable

55

* SPRING

57031559000

Unavailable

56

DIAPHRAGM

57031557000

Unavailable

57

PVC-HOSE 3X5MM

52031137001

Unavailable

58

MAIN JET HOLDER

57031522000

Unavailable

60

FLOAT CHAMBER WITH RUN OVER T.

57031511100

Unavailable

62

PLUG M12X1

57031514000

Unavailable

64

INTAKE TRUMPET FOR PHM 38 ND

57731040000

Unavailable

70

COVER

50131174000

Unavailable

71

FUEL FILTER

15131112000

Unavailable

72

REBOUND VALVE

57031556000

Unavailable

74

HH SCREW DIN0933-M 6X16

0933060163

Unavailable

75

HOSE CONNECTOR

57031513000

Unavailable

79

STUD 2 X 47

57031508000

Unavailable

80

GASKET SET PHM 38 ND

57731099000

Unavailable

81

CHOKE CABLE CPL. SX,SXC,SC'97

58302095200

Unavailable

82

SLEEVE FOR CHOKE CABLE

58302095251

Unavailable
