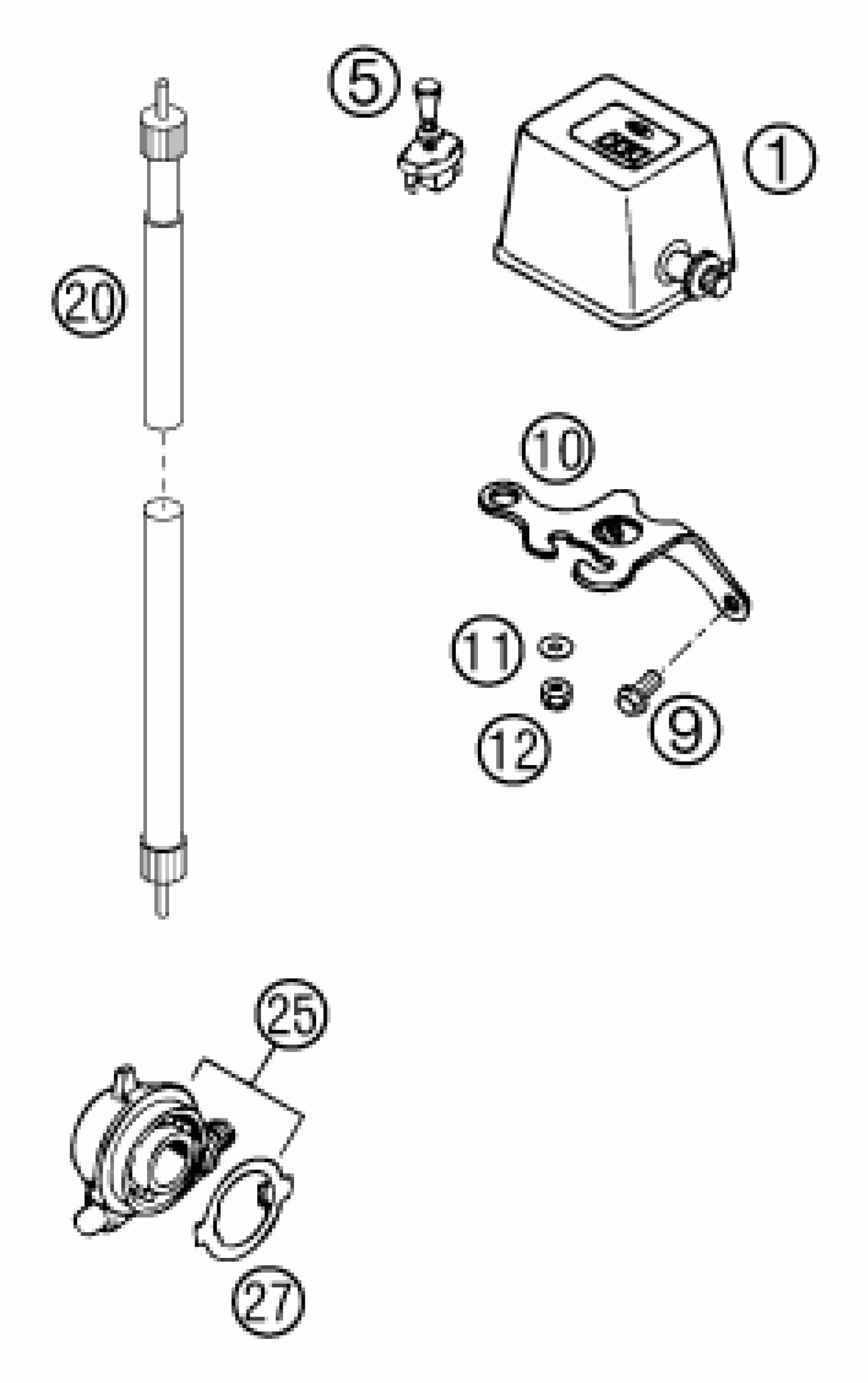

KTM 400 MXC RACING 2002 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

ODOMETER

58011180000

Unavailable

5

PULL SWITCH LOOSE

55011599000

Unavailable

9

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

10

SPEEDOMETER BRACKET VDO/ODO'95

54611120200

Unavailable

11

washer DIN 9021 A - 5.3

0021050003

Unavailable

12

SELF LOCKING NUT DIN0985-M 4

0985040003

Unavailable

20

SPEEDOM.CABLE M12/M12 960MM'99

58414055200

Unavailable

25

SPEEDOMETER DRIVE 748220 (3.0)

50314050000

Unavailable

27

DRIV.DOG F.SPEEDOM.DRIVE 2000

50314053000

Unavailable
