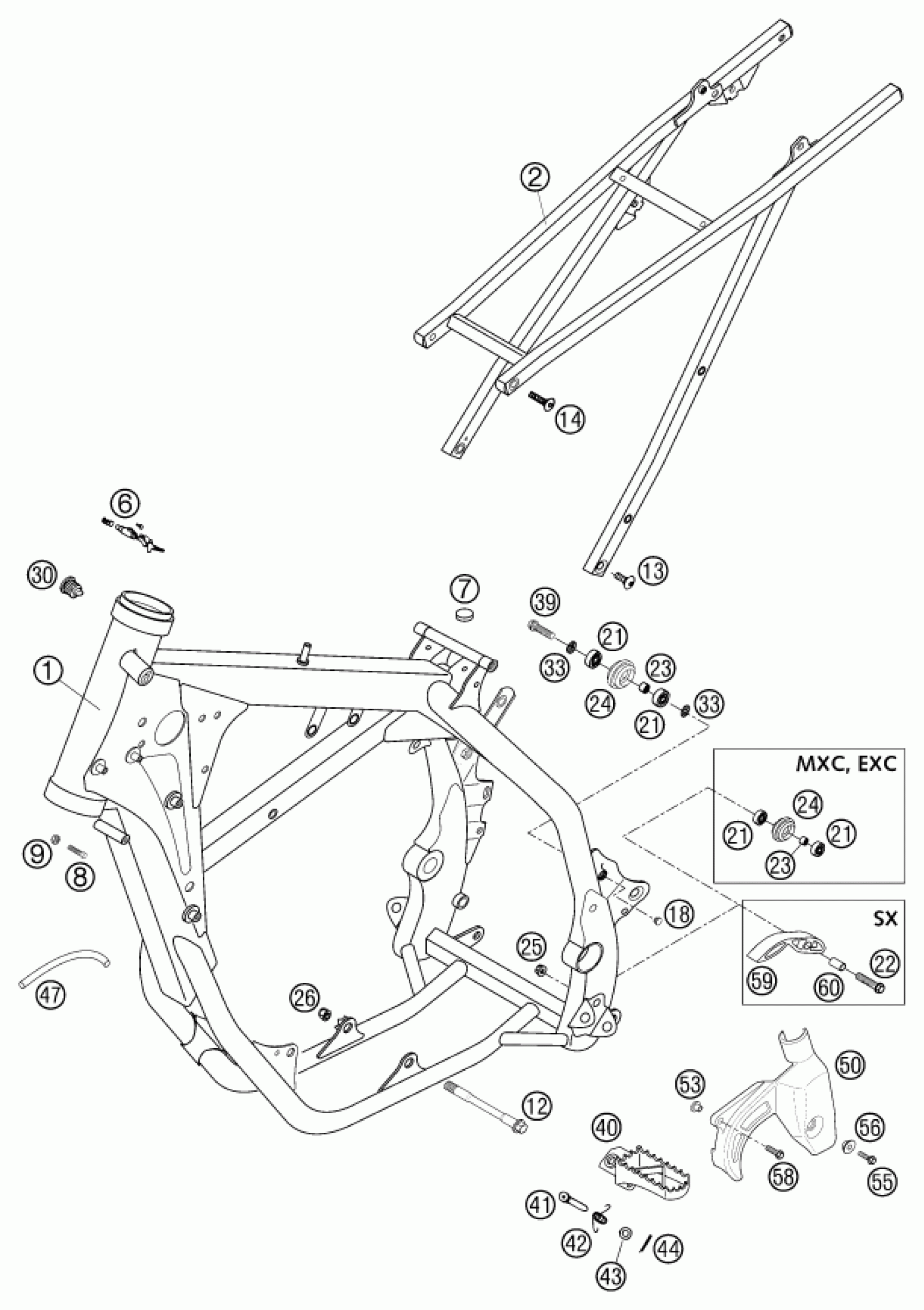

KTM 400 MXC RACING 2002 FRAME Diagram

#

Description
Price

0

FOOT PED R/S EXC SILVER 2000

59003041050

Unavailable

1

FRAME 400/520 EXC RACING 2001

59003001400

Unavailable

2

SUB FRAME CPL. ALU RACING 2000

59003002044

Unavailable

6

STEERING HEAD LOCK CPL. ZADI

71003007000

Unavailable

7

RUBBER BUFFER FOR TANK '98

50307020000

Unavailable

8

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

9

Hexagon nut DIN934 M8

0934080003

Unavailable

12

Enginebrac. screw M10X123 WS=1

59003013000

Unavailable

13

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

14

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

18

PLASTIC CAP SFL10

54403135000

Unavailable

21

Grooved ball bearing 608 2RS C

0625006087

Unavailable

23

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

24

CHAIN ROLL D=30MM 125-380 '99

52303053000

Unavailable

25

Self locking nut M8 10.9

54310086200

Unavailable

26

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

30

PLASTIC CAP

42007049000

Unavailable

33

LOCK WASHER 8MM

36003014000

Unavailable

39

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

40

FOOT PED L/S EXC SILVER 00

59003040050

Unavailable

41

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

42

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

43

washer DIN 125 A 10.5

0125100003

Unavailable

44

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

SPROCKET COVER RACING 2002

59030060100

Unavailable

53

BUSHING F. SPROCKET COVER RAC.

59030060050

Unavailable

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

56

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

58

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable
