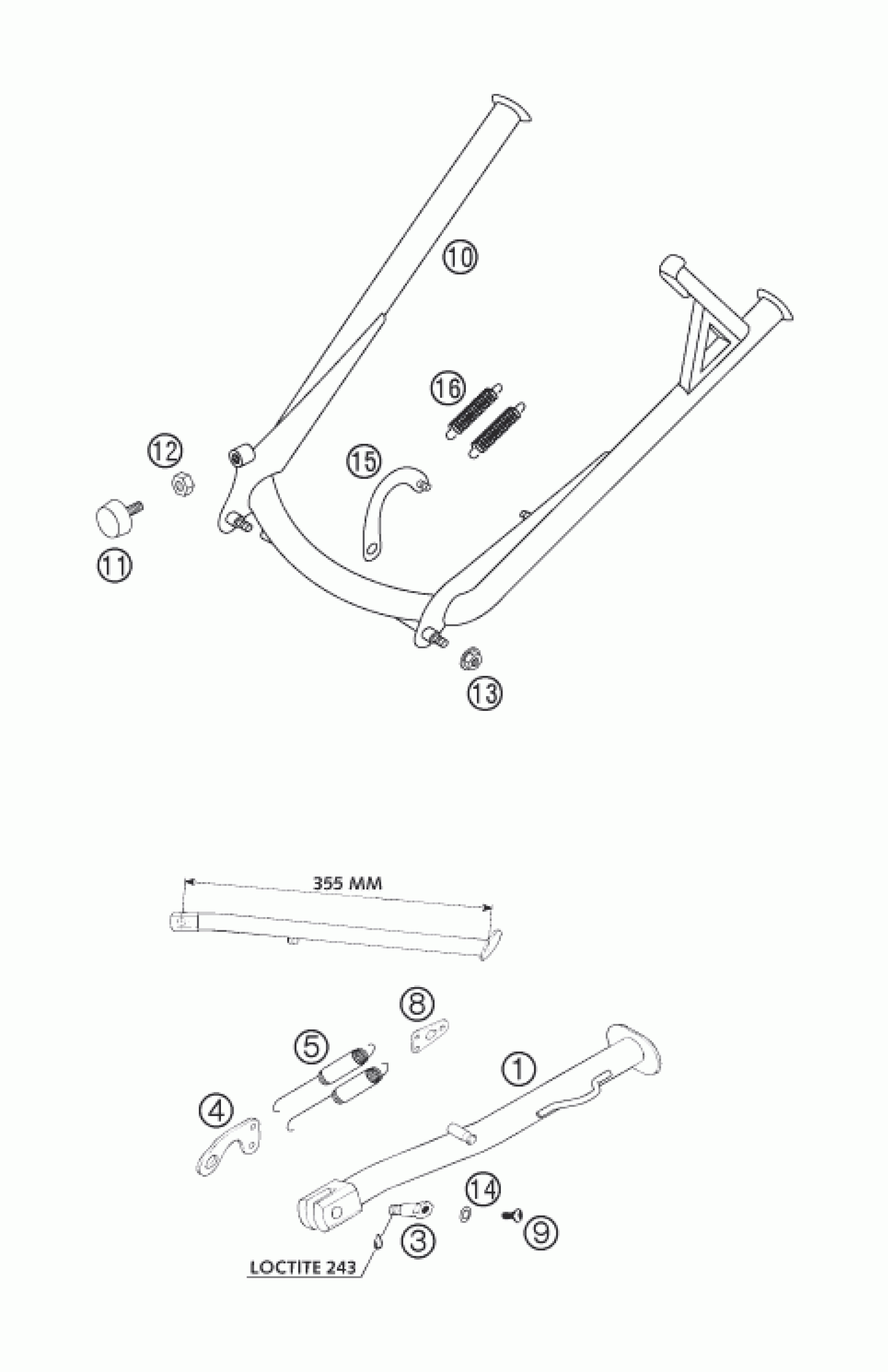

KTM 400 LS-E/ MIL 2005 SIDE / CENTER STAND Diagram

#

Description
Price

1

SIDE STAND BLACK MIL. 04

57903023100

Unavailable

3

SCREW FOR SIDE STAND M10X26,7

58203027200

Unavailable

4

SPRING SHACKLE TOP MILITARY'97

58403028000

Unavailable

5

SIDE ST.SPRING LO. W.RUBBER 03

58403030100

Unavailable

8

SPRING SHACKLE BELOW F.SIDEST.

51103023055

Unavailable

9

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

10

CENTER STAND MIL. 04

5790301610030

Unavailable

11

STOP RUBBER M8

58303070000

Unavailable

12

Hexagon nut DIN934 M8

0934080003

Unavailable

13

Self locking nut M8 10.9

54310086200

Unavailable

14

Washer DIN9021-A 6.4

0021060003

Unavailable

16

STAND SPRING SHORT

10003021000

Unavailable

15

SPRINGBOW BLACK '93

5830302700030

Unavailable
