FRONT FORK DISASSEMBLED

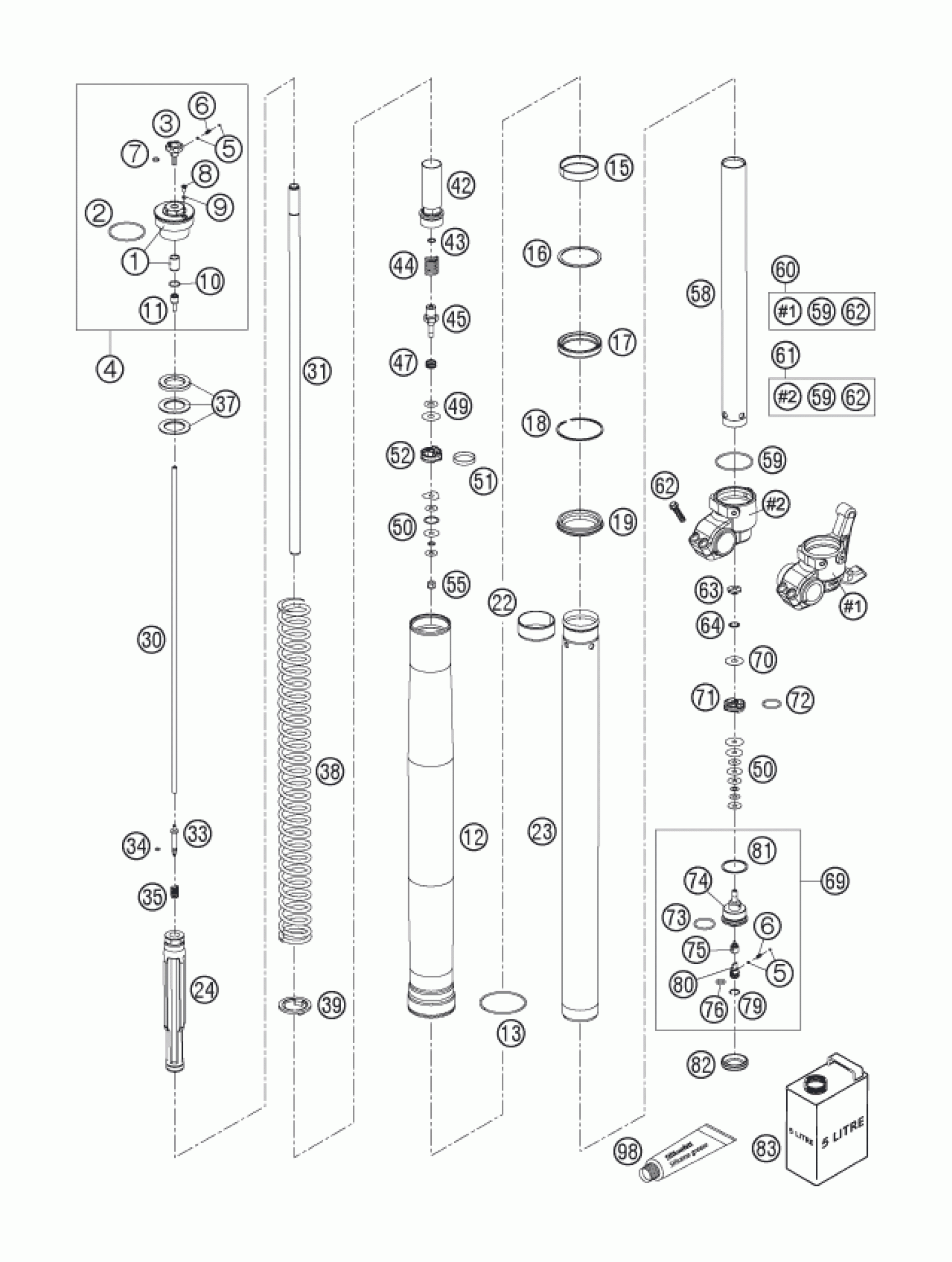

KTM 400 LS-E/ MIL 2005 FRONT FORK DISASSEMBLED Diagram
#
1
SCREW CAP M51X1,5 CPL.
48600020S1
Unavailable
2
O-ring 45x2 NBR70 siliconized
46810340
Unavailable
3
Adjuster rebound
48600018
Unavailable
4
SCREW CAP M51X1,5 CPL.
48600020S1
Unavailable
5
Steel ball d3
40540603
Unavailable
6
Spring (1,7) l7,9
48600028
Unavailable
7
O-ring 6x1,5 NBR70
48600044
Unavailable
8
Cross flat head screw M4x6
48600058
Unavailable
9
O-ring 3,7x1,6 NBR70
48600009
Unavailable
10
O-ring 12x1,5 NBR70
48600043
Unavailable
11
Tube tap d4x25
48600019
Unavailable
12
OUTER TUBE L=577 D54/57
43570211E
Unavailable
13
Round-wire snap ring 53x2
43570099
Unavailable
15
DU-BUSH 47 X 43 X 20
43570019
Unavailable
16
Supportwasher 45x52,5x1,5
43570092
Unavailable
17
Seal ring 43x52,9x9,5
43570201
Unavailable
18
Snap ring SB53x1,5 acc drawing
43570008
Unavailable
19
Dirtscarper NOK 43mm
43570202
Unavailable
22
Guide bushing 42x44x20
43570203
Unavailable
23
INNER TUBE D=43MM L=585MM
43570221
Unavailable
24
HYDR.STOP L=200 D=27,5 CPL. 05
43570142S1
Unavailable
30
ADJUSTMENT TUBE L=447MM
48600174
Unavailable
31
PISTONROD D=14MM L=481MM M11X1
48600173
Unavailable
33
Needle 6x42,6 rebound
48600189
Unavailable
34
O-ring 3x1,5 NBR70
48600046
Unavailable
35
Spring (7,2) 4-23 needle
48600033
Unavailable
37
Preload bush 42x26,5x2,5
48600036
Unavailable
37
Preload bush 26,5x42x5
48600037
Unavailable
37
Preload bush 26,5x42x1,5
48600053
Unavailable
38
SPRING 3,6 N/MM SET D=4,6MM
95010010S
Unavailable
38
SPRING 4,4 N/MM SET D=4,9MM
95010012S
Unavailable
38
SPRING 4,0 N/MM SET D=4,75MM
95010002S
Unavailable
38
SPRING 4,2 N/MM SET D=4,9MM
95010003S
Unavailable
38
SPRING 5,0 N/MM SET D=5,0MM
95010022S
Unavailable
38
SPRING 4,4 N/MM SET D=4,75MM
95010023S
Unavailable
39
Spring retainer 33,5x38,2x3
43570131
Unavailable
42
SCREW SLEEVE M29,3X1 L=65 CPL.
48600200S
Unavailable
44
REBOUND SPRING D=14,6MM L=22MM
48600015
Unavailable
45
Tap 6x45 rebound
48600203
Unavailable
47
Spring (11,7) 1,5-8 valve
35480377
Unavailable
49
CHECK VALVE 8X24X0,1
48600062
Unavailable
49
CHECK VALVE 8X18X0,1
48600068
Unavailable
49
Shim 8x20x0,10
48600215
Unavailable
49
Shim 8x22x0,10
48600216
Unavailable
50
Shim 6x12x0,10
40540400
Unavailable
50
Shim 6x14x0,10
40540401
Unavailable
50
Shim 6x16x0,10
40540402
Unavailable
50
Shim 6x18x0,10
40540403
Unavailable
50
SHIM 6X12X0,15
40540404
Unavailable
50
SHIM 6X14X0,15
40540405
Unavailable
50
Shim 6x18x0,20
40540411
Unavailable
50
SHIM 6X16X0,25
40540414
Unavailable
50
Shim 6x10x0,30
40540447
Unavailable
50
Shim 6x24x0,10
48600063
Unavailable
50
Shim 6x22x0,10
48600064
Unavailable
50
Shim 6x20x0,10
48600065
Unavailable
50
Shim 6x24x0,10 delta
48600116
Unavailable
50
SHIM 6X22X0,1 DELTA
48600139
Unavailable
51
Pistonring 26x28x5
48600060
Unavailable
52
Piston 6x27,65x12 rebound
48600201
Unavailable
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
Unavailable
58
TUBE 29,3X1X390 D=8,5MM
48600081
Unavailable
59
O-ring 41x2 NBR70 siliconized
43570023
Unavailable
60
AXLE CLAMP L/S CPL. 04
43570124S
Unavailable
61
AXLE CLAMP R/S CPL. USD 43 04
43570123S
Unavailable
62
HH COLLAR SCREW M 8X25 WS=10
0015080253
Unavailable
63
Nut valve M6x0,5 h6,5 WAF17
48600163
Unavailable
64
Spring (8,5) l6,5 valve
48600202
Unavailable
69
TAP COMPRESSION CPL. 03
48600152S1
Unavailable
70
Shim 8x24x0,40
48600061
Unavailable
71
Piston 6x27,8x9 compression
48600047
Unavailable
72
O-ring 21x2 NBR70
46811499
Unavailable
73
O-ring 24x2 NBR70
35480320
Unavailable
74
TAP COMPRESSION
48600152
Unavailable
75
Needle 10x11,6 compression
48600190
Unavailable
76
O-ring 8x2 NBR70
48600049
Unavailable
79
Round-wire snap ring 12x1 DIN7
48600051
Unavailable
80
Adjustment screw slot compress
48600034
Unavailable
81
Copper disc 29,5x33,5x1
48600004
Unavailable
82
Rubber cap 35x10 NBR80
48600141
Unavailable
83
FORK OIL SAE5 5L 2005
48600401S1
Unavailable
98
SILICONE GREASE F. DUST STRI
T511
Unavailable
43
O-ring 8x1,25 NBR70 siliconize
48600239
Unavailable
