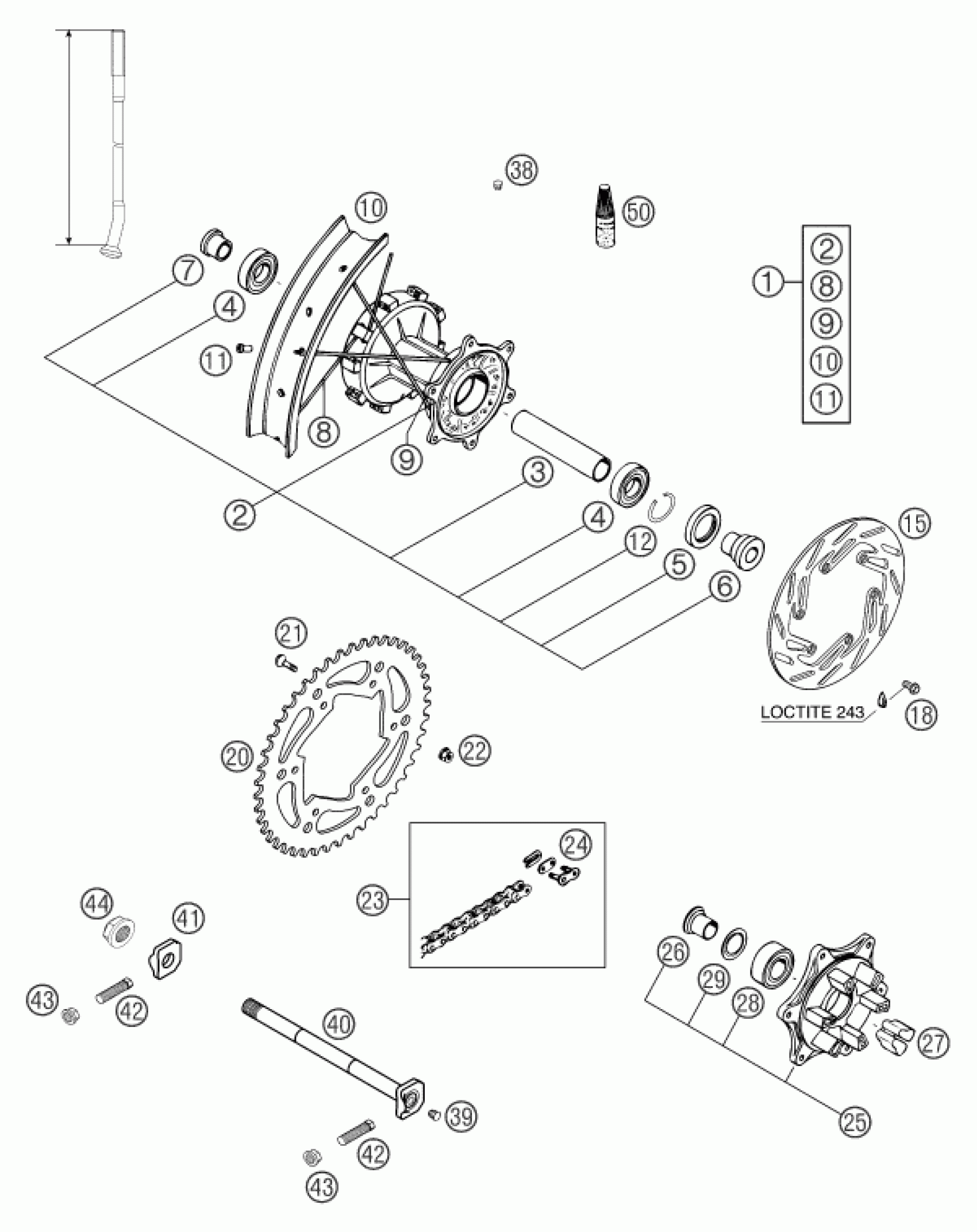

KTM 400 LS-E/ MIL 04 <2004> REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. DAMPED 2,5X18'

5841000124430

Unavailable

2

REAR W.HUB CPL. DAMP. BLACK 01

5841001004430

Unavailable

3

BUSHING SPACER TUBE L=98,3MM

58410011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

SHAFT SEAL RING 32X52X7 B

0760325272

Unavailable

6

BUSHING FOR HUB

58410016000

Unavailable

7

BUSHING FOR REAR DAMPED HUB

54610416300

Unavailable

8

SPOKE M5X223-10G 18'' BLACK

5461047100030

Unavailable

9

SPOKE M5X198-10G 18'' BLACK

5651017160030

Unavailable

10

REAR RIM 2,50X18'' DID BLACK

5801047010030

Unavailable

11

STEEL NIPPLE M5 BLACK

5650907200030

Unavailable

12

CIRCLIP DIN0472-52X2

0472052200

Unavailable

15

REAR BRAKE DISK 220MM COUNTERS

58010060600

Unavailable

18

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

20

REAR SPROCKET 50-Z BLACK

5831015105030

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

% X-RING CHAIN 5/8X1/4" +M.LIN

50310265114

Unavailable

24

CONNECTING LINK

50310266000

Unavailable

25

SPROCKET SUPPORT CPL. MIL. 04

5791005004430

Unavailable

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

Unavailable

27

Rubber damping block 91

54610459000

Unavailable

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

Unavailable

29

SEAL WASHER 3205 AV

54610018000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

WH. SPINDLE RE. CPL.265MM 00

50310085044

Unavailable

41

Chain tension adjuster, right

50310084000

Unavailable

42

SPEC. SCREW M10X1,25X40 WS=10

50304040000

Unavailable

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
