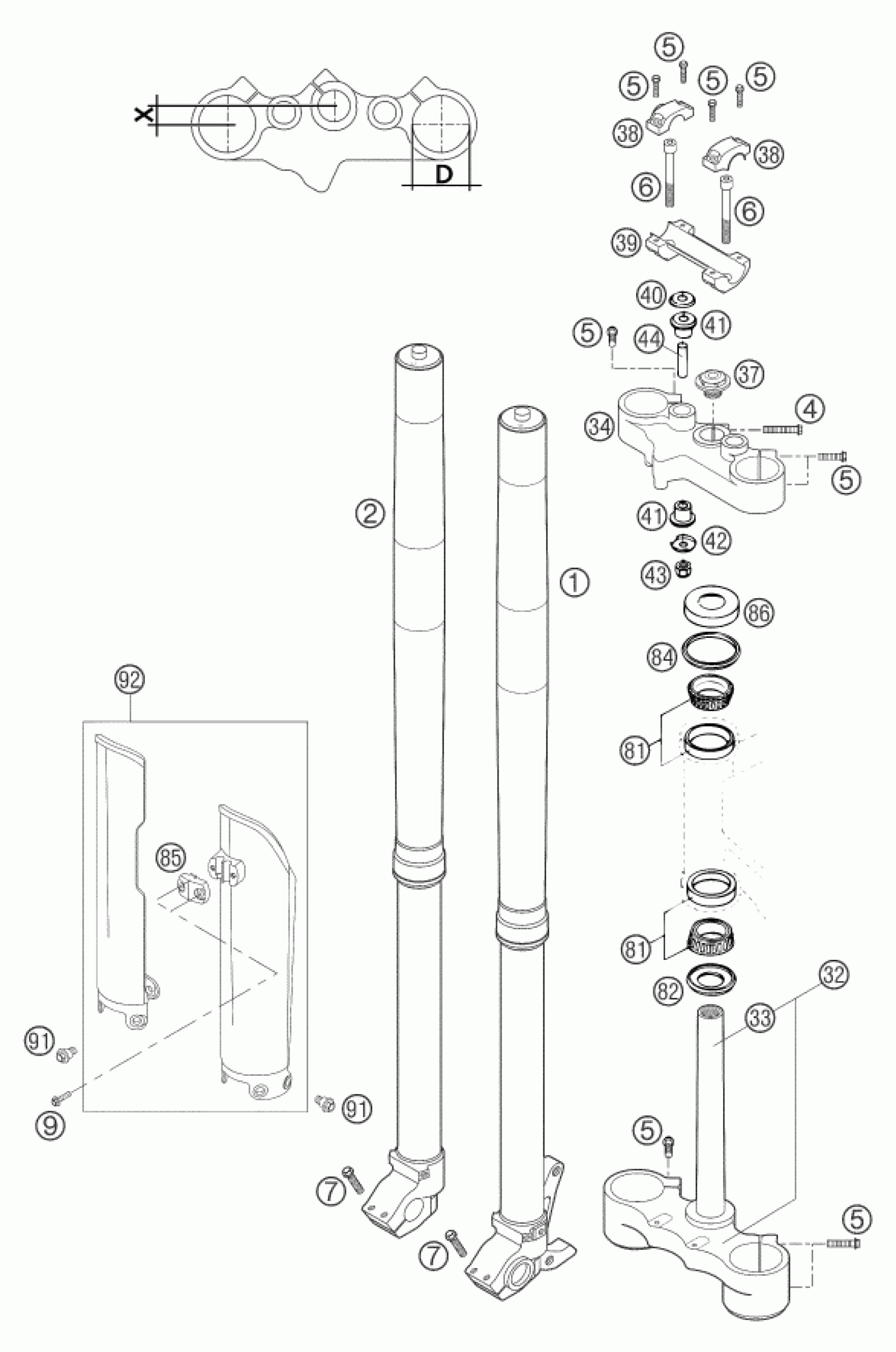

KTM 400 LS-E/ MIL 04 <2004> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK LEG L/S WP43 MIL. 04

0518Y739LS

Unavailable

2

FORK LEG R/S WP43 MIL. 04

0518Y739RS

Unavailable

4

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

6

AH SCREW DIN6912-M10X70

0984100703

Unavailable

7

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

9

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

32

BOT.TRIPLE CLAMP X=18MM/D=57MM

5840103201830

Unavailable

33

FORK TUBE L=244 '91

50101033100

Unavailable

34

TOP TRIPLE CLAMP X=18MM/D=54MM

5840103421830

Unavailable

37

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

Unavailable

38

HANDLEBAR CLAMP D=22MM 2001

50301038000

Unavailable

39

HANDLEBAR SUPPORT 22MM 2T 2000

59001039000

Unavailable

40

washer 10.5x32x2

56401042000

Unavailable

41

rubber bushing

56401040000

Unavailable

42

WASHER 10,5X31

56401142000

Unavailable

43

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

44

SPACER TUBE 10,2X12X44

56401041100

Unavailable

81

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECT L/S+R/S BLACK 02

5900109400030

Unavailable
