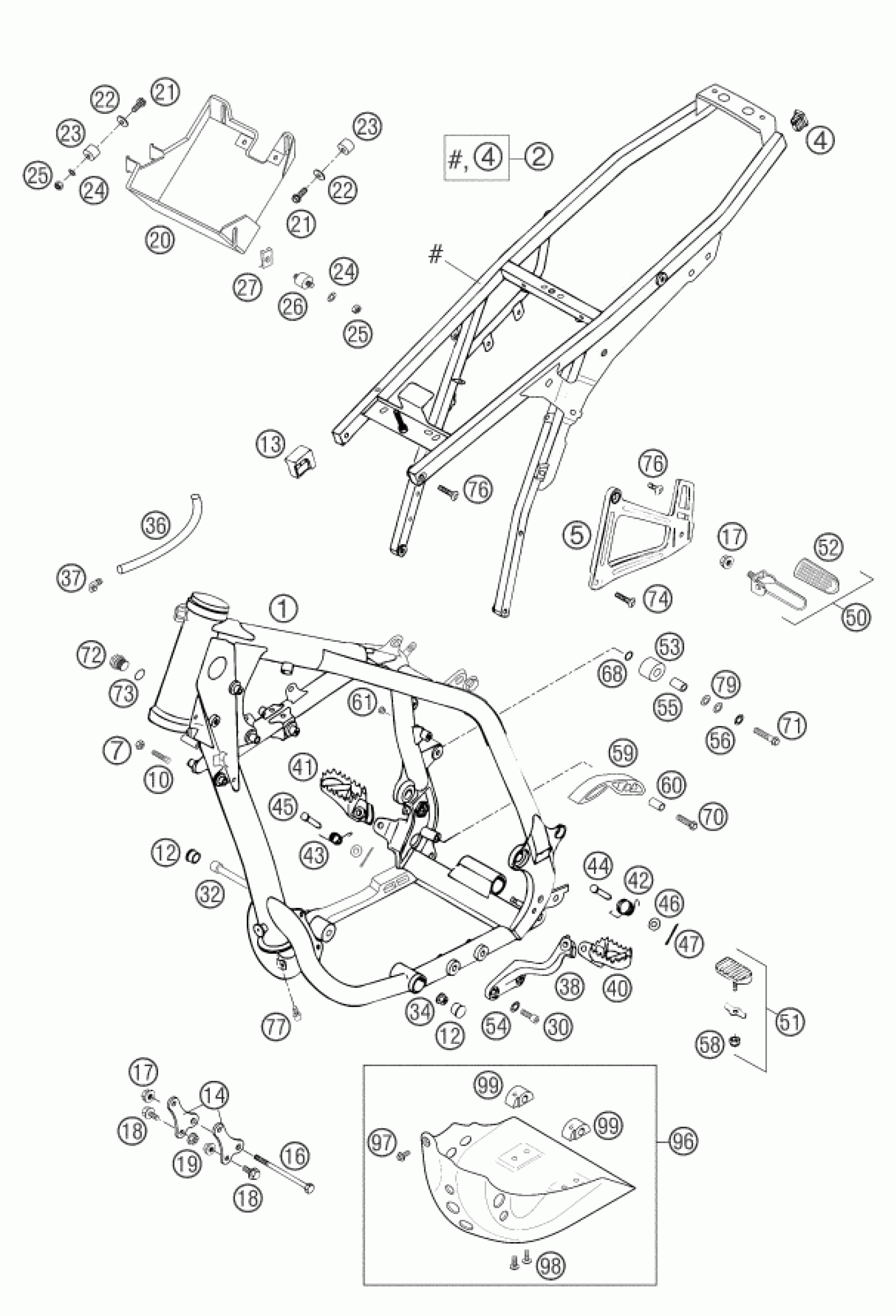

KTM 400 LS-E/ MIL 04 <2004> FRAME Diagram

#

Description
Price

1

FRAME CPL. 04

5790300144430

Unavailable

2

SUBFRAME CPL. LC4-E MIL 04

5790300224430

Unavailable

4

PLUG 12 X 17 MM

58303002090

Unavailable

5

FOOTREST BRACKET RE.L/S BLA.04

5870304800030

Unavailable

5

FOOTREST BRACKET R/S BLACK

5810300420030

Unavailable

7

Hexagon nut DIN934 M8

0934080003

Unavailable

10

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

12

PVC CAP D=22MM

71001012100

Unavailable

13

TANK SUPPORT '93

58307015000

Unavailable

14

ENGINE SUPPORT AGW '94

58303055000

Unavailable

16

HH SCREW DIN0931-M10X110

0931101103

Unavailable

17

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

18

HH COLLAR SCREW M 8X16 WS=13

49109481052

Unavailable

19

Self locking nut M8 10.9

54310086200

Unavailable

20

BATTERY BOX 03

58403002370

Unavailable

21

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

22

Washer DIN9021-A 6.4

0021060003

Unavailable

23

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

24

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

25

Hex. nut DIN 934 M6

0934060003

Unavailable

26

RUBBER GROMMET 20X15-M6X8-(2)

58403002010

Unavailable

27

clip nut M6

54603048100

Unavailable

30

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

32

AH SCREW DIN0912-M10X160

0912101603

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

Unavailable

38

FOOTREST BRACKET L/S BLACK

5830303800030

Unavailable

40

FOOTREST L/S BLACK

5830304000030

Unavailable

41

FOOTREST R/S BLACK

5460314000030

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

BOLT FOR FOOTREST

58303044000

Unavailable

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

50

FOOTREST REAR L/S CPL. '95

58303050044

Unavailable

50

FOOT REST REAR R/S CPL.'95

58303150044

Unavailable

51

FOOTREST RUBBER CPL. '94

58303045044

Unavailable

52

FOOTREST RUBBER L/S&R/S DUKE95

58303051000

Unavailable

53

CHAIN ROLL 12X29X22,5 '98

58403060000

Unavailable

54

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

55

BUSH CHAIN ROLL 8X12X23 '98

58403060065

Unavailable

56

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

58

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

59

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

60

BUSHING 8,2X10X20

51103053051

Unavailable

61

PLASTIC CAP SFL10

54403135000

Unavailable

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

71

HH COLLAR SCREW M 8X40 WS=10

0015080403

Unavailable

72

PLUG DIN0910-M16X1,5

0910160153

Unavailable

73

CU-SEAL RING 16X22X2

0603162220

Unavailable

74

AH SCREW 8X29 FL.HEAD 04

54510052200

Unavailable

76

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

77

AH SCREW DIN7984-M 6X10

0984060103

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable

96

SKID PLATE PLASTIC

58303005244

Unavailable

97

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

98

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

99

ENGINE PROTECTOR BRACKET '97

58003012200

Unavailable
