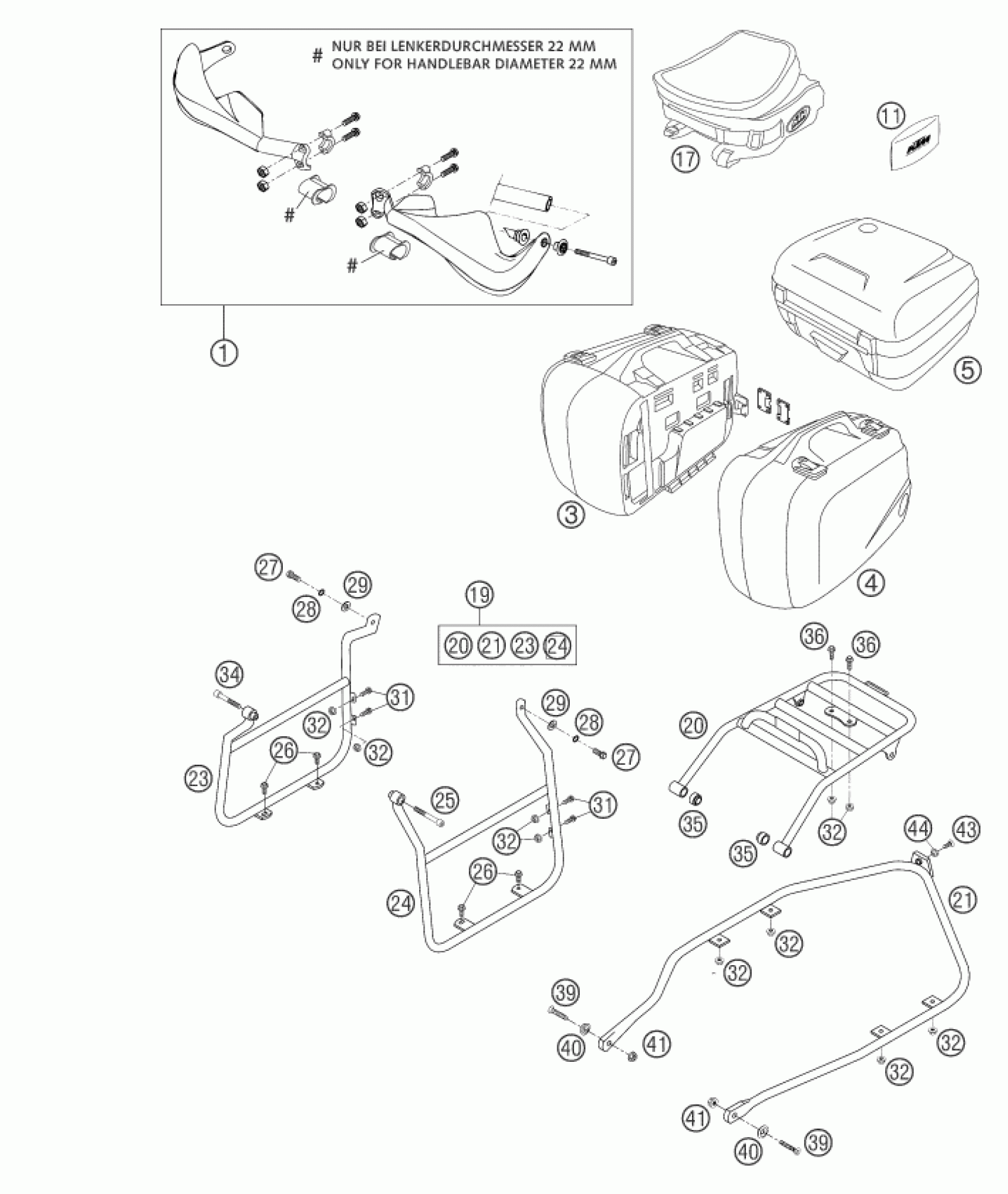

KTM 400 LS-E/ MIL 04 <2004> ACCESSORIES Diagram

#

Description
Price

39

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

40

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

41

Self locking nut M8 10.9

54310086200

Unavailable

43

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

44

WASHER 6MM

40006006000

Unavailable

1

HAND GUARD L/S+R/S CPL. 04

5790207904430

Unavailable

3

SIDE SUITCASE R/S MIL. 2001

57912123000

Unavailable

4

SIDE SUITCASE L/S MIL. 2001

57912122000

Unavailable

5

TOP-CASE LC4 MIL BRD 04

57912024100

Unavailable

11

TOOL SET MIL. 04

57929099200

Unavailable

17

TANK BAG BLACK

58412019000

Unavailable

19

BAGGAGE CARR.CPL.LC4 MIL EU 02

57912010200

Unavailable

20

BAGGAGE CARRIER MIL. 04

57912010240

Unavailable

21

CONNECTING PIPE CASE HOLDER 04

57912010230

Unavailable

23

CASE HOLDER RE. MIL. 04

57912010220

Unavailable

24

CASE HOLDER LI. MIL. 04

57912010210

Unavailable

25

AH SCREW DIN0912-M 8X75

0912080753

Unavailable

26

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

27

HH COLLAR SCREW M 8X20 WS=10

0015080203

Unavailable

28

LOCK WASHER 8MM

36003014000

Unavailable

29

washer DIN 125 A -8.4

0125080003

Unavailable

31

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

32

Self locking nut M6 - 10

56509064100

Unavailable

34

AH SCREW DIN912 M8x65

0912080653

Unavailable

35

BUSHING F. BAGGAGE CARR.MIL 02

57912011000

Unavailable

36

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable
