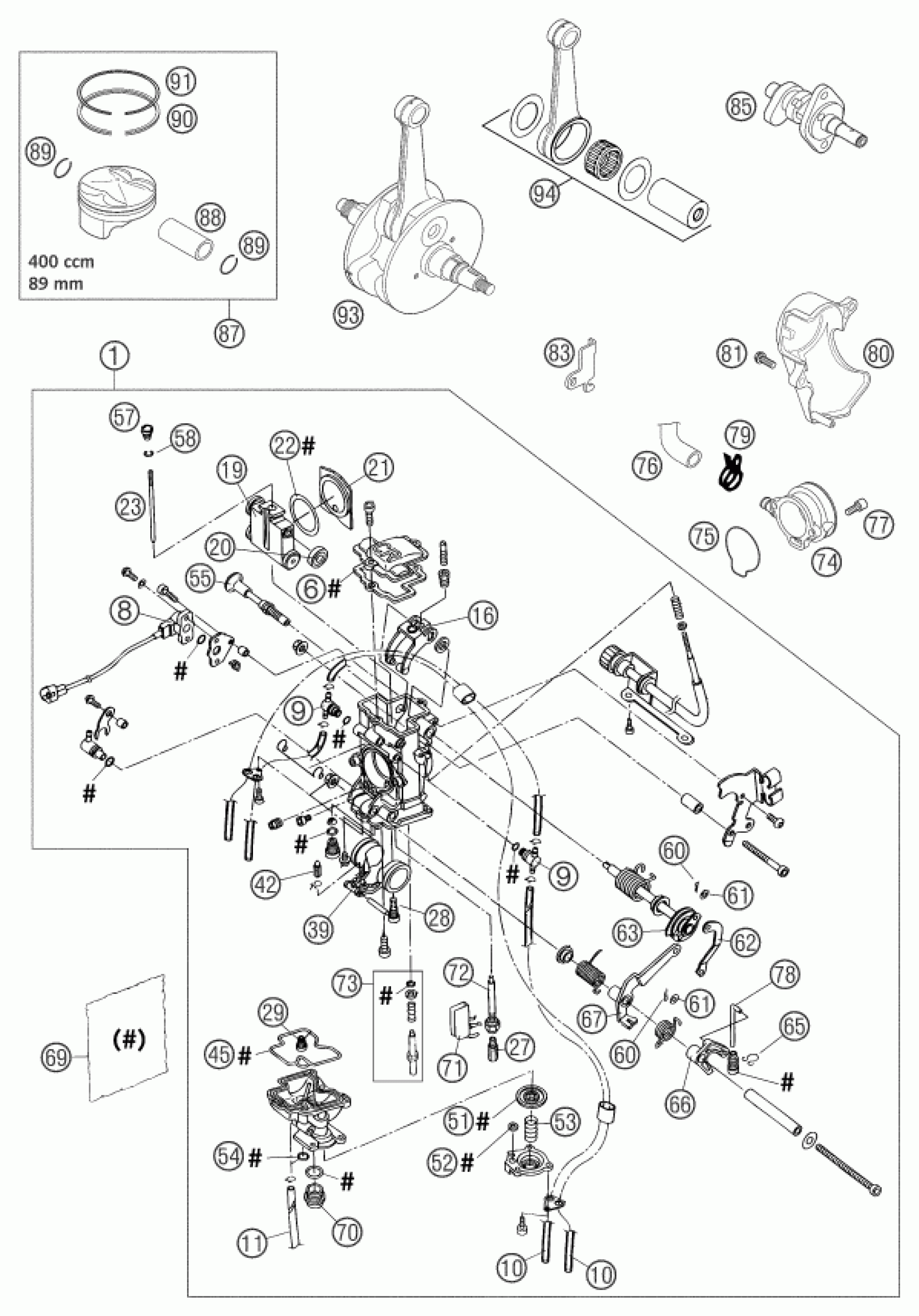

KTM 400 EXC RACING SIX-DAYS 2003 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR KEIH.SX FCR 39 2002

59031001100

Unavailable

6

GASKET CARBURETOR COVER

59031028000

Unavailable

8

TPS-SENSOR FCR 200MM 99-03

59031077000

Unavailable

9

T-JOINT BREATHER HOSE

59031083000

Unavailable

10

PVC-HOSE 4X6MM

31007007101

Unavailable

11

PVC-HOSE 3X5MM

52031137001

Unavailable

16

LINK ARM THROTTLE VALVE CPL.

59031035051

Unavailable

19

THROTTLE VALVE 15 CPL.

59031035015

Unavailable

20

BUSHING THROTTLE VALVE

59031035050

Unavailable

21

GASKET PLATE THROTTLE VALVE

59031035053

Unavailable

22

GASKET WASHER THROTTLE VALVE

59031035052

Unavailable

23

JET NEEDLE OBEVR

590311340VR

Unavailable

23

JET NEEDLE KEIHIN OBEVP

59031023000

Unavailable

23

JET NEEDLE KEIHIN OBDVR

590310340VR

Unavailable

23

JET NEEDLE KEIHIN OBDTM

590310340TM

Unavailable

27

MAIN JET 160 KEIHIN

54531623160

Unavailable

27

MAIN JET 165 KEIHIN

54531623165

Unavailable

27

MAIN JET 172 KEIHIN

54531623172

Unavailable

27

MAIN JET 175 KEIHIN

54531623175

Unavailable

27

MAIN JET 178 KEIHIN

54531623178

Unavailable

27

MAIN JET 180 KEIHIN

54531623180

Unavailable

28

IDLE JET 45

59031607045

Unavailable

28

IDLE JET 48

59031607048

Unavailable

28

IDLE JET 50

59031607050

Unavailable

28

IDLE JET 52

59031607052

Unavailable

29

STARTER JET 85

59031051085

Unavailable

39

FLOAT CPL.

59031009000

Unavailable

42

FLOAT NEEDLE

54631220000

Unavailable

45

GASKET FLOAT CHAMBER

59031010000

Unavailable

51

DIAPHRAGM ACCELERATOR PUMP

59031057000

Unavailable

52

U-RING

59031058000

Unavailable

53

COIL SPRING

59031059000

Unavailable

54

O-RING

59031058100

Unavailable

55

STARTER VALVE CPL.

59031048000

Unavailable

57

NEEDLE SET SCREW

59031032000

Unavailable

58

BAR CLIP

59031029000

Unavailable

60

SPLIT PIN 1,0X10

0094010103

Unavailable

61

PVC WASHER 3X8X0,5

59031087000

Unavailable

62

LINK ARM CPL.

59031063000

Unavailable

63

THROTTLE SHAFT CPL.

59031046000

Unavailable

65

TUBE CLIP

59031084000

Unavailable

66

LINK LEVER

59031056000

Unavailable

67

LINK LEVER CPL.

59031062000

Unavailable

69

GASKET SET FCR KEIHIN

59031099000

Unavailable

70

HOLDING BOLT

59031014000

Unavailable

71

BUFFER PLATE

59031085000

Unavailable

72

NEEDLE JET FCR-MX

59031121000

Unavailable

73

ADJUST SCREW CPL.

59031017000

Unavailable

74

INTAKE FUNNEL FCR/FCR-MX 2001

59031040100

Unavailable

75

O-RING FOR INTAKE FUNNEL

59031040010

Unavailable

76

ENGINE BREATHER TUBE 00

59031050100

Unavailable

77

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

78

ROD ACCELERATOR PUMP

59031061000

Unavailable

79

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

80

CARBURETOR COVER RACING 2000

59031086000

Unavailable

81

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

83

SLIDE STOP 24,5MM

59031029024

Unavailable

85

CAMSHAFT ''01'' 400 RACING 20

59536010000

Unavailable

87

PISTON I 89MM CPL. CAST 2000

59530007000 I

Unavailable

87

PISTON II 89MM CPL. CAST 2000

59530007000 II

Unavailable

88

PISTON PIN BOLT 20X15,8/12X50

59030033000

Unavailable

89

CIRCLIP C20X1,5

59030074000

Unavailable

90

OIL SCRAPER RING 89/81,5X3

59530031000

Unavailable

91

RECTANGULAR RING 89MM

57530032000

Unavailable

93

CRANKSHAFT CMPL. 400 RAC. 2001

59530018200

Unavailable

94

CON.ROD REP.SET 400 RAC. 2000

59530015044

Unavailable
