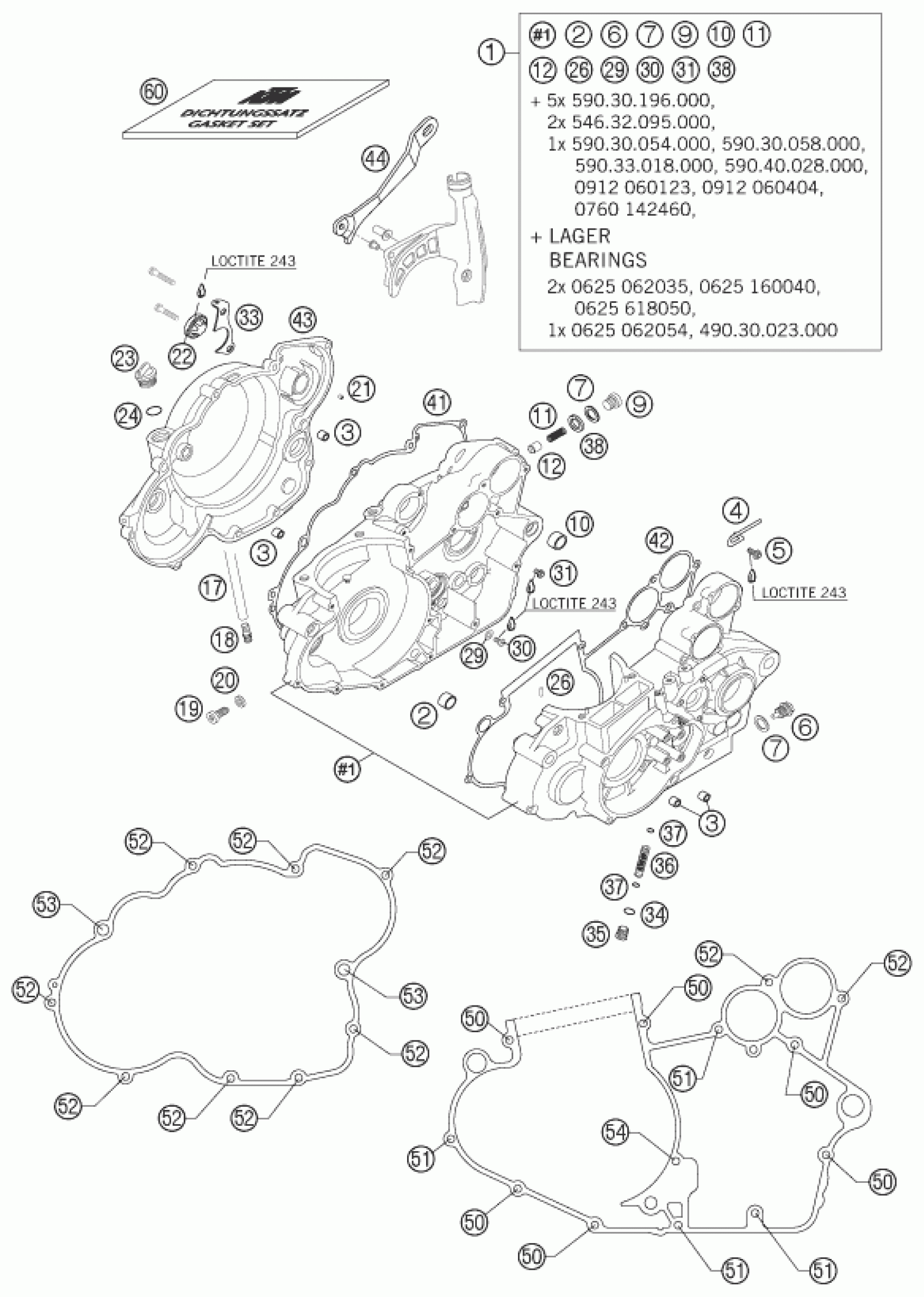

KTM 400 EXC RACING 2004 ENGINE CASE Diagram

#

Description
Price

1

% ENGINE CASE CPL. W.TR.BEAR.

59030000144

Unavailable

2

DOWEL 17 X 13 X 12

51030026100

Unavailable

3

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

4

HANGER FOR VENT HOSE

59030090000

Unavailable

5

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

7

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

9

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

10

DOWEL 17 X 19 X 12

59030024000

Unavailable

11

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

12

VALVE PISTON D=10MM

58038028000

Unavailable

17

ENGINE BREATHER TUBE 00

59031050100

Unavailable

18

BLEEDER FLANGE M12X1,5 WS=13

59030022100

Unavailable

19

LOCATING SCREW M8 L=23

58030080000

Unavailable

20

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

21

NEEDLE ROLLER DIN5402 2,5X9,8

0402025980

Unavailable

22

OIL LEVEL GLASS G 1777 Y

59030019000

Unavailable

23

PLUG M 24X3

58030020000

Unavailable

24

O-RING 19,00X3,00 NBR

0770191015

Unavailable

26

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

29

WASHER DIN0125-A 5,3

0125050003

Unavailable

30

FLAT HEAD SCREW DIN7985-M 5X 8

0985050083

Unavailable

31

HH COLLAR SCREW M 6X8 WS=8

0015060083

Unavailable

33

RET.BRACKET F.BRAKE LEVER HUB

59030001090

Unavailable

34

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

35

PLUG M16X1,5

59038014000

Unavailable

36

OIL SCREEN 11,8X44,5MM

59038015000

Unavailable

37

O-RING 9X1,5 NBR

0770090015

Unavailable

38

SEAL RING DIN7603 12X18X3

0603121830

Unavailable

41

GASKET FOR CLUTCH COVER

59030025100

Unavailable

42

ENG CASE GASKET NS92-24

59030039100

Unavailable

43

CLUTCH COVER RACING 2000

59030001000

Unavailable

44

CHAIN DAMPERSHEET RACING 20

59030047000

Unavailable

50

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

51

HH COLLAR SCREW M 6X60 WS=8

0015060603

Unavailable

52

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

53

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

54

HH COLLAR SCREW M 6X75 WS=8

0015060753

Unavailable

60

GASKET SET CPL. RACING 2000

59030099000

Unavailable
