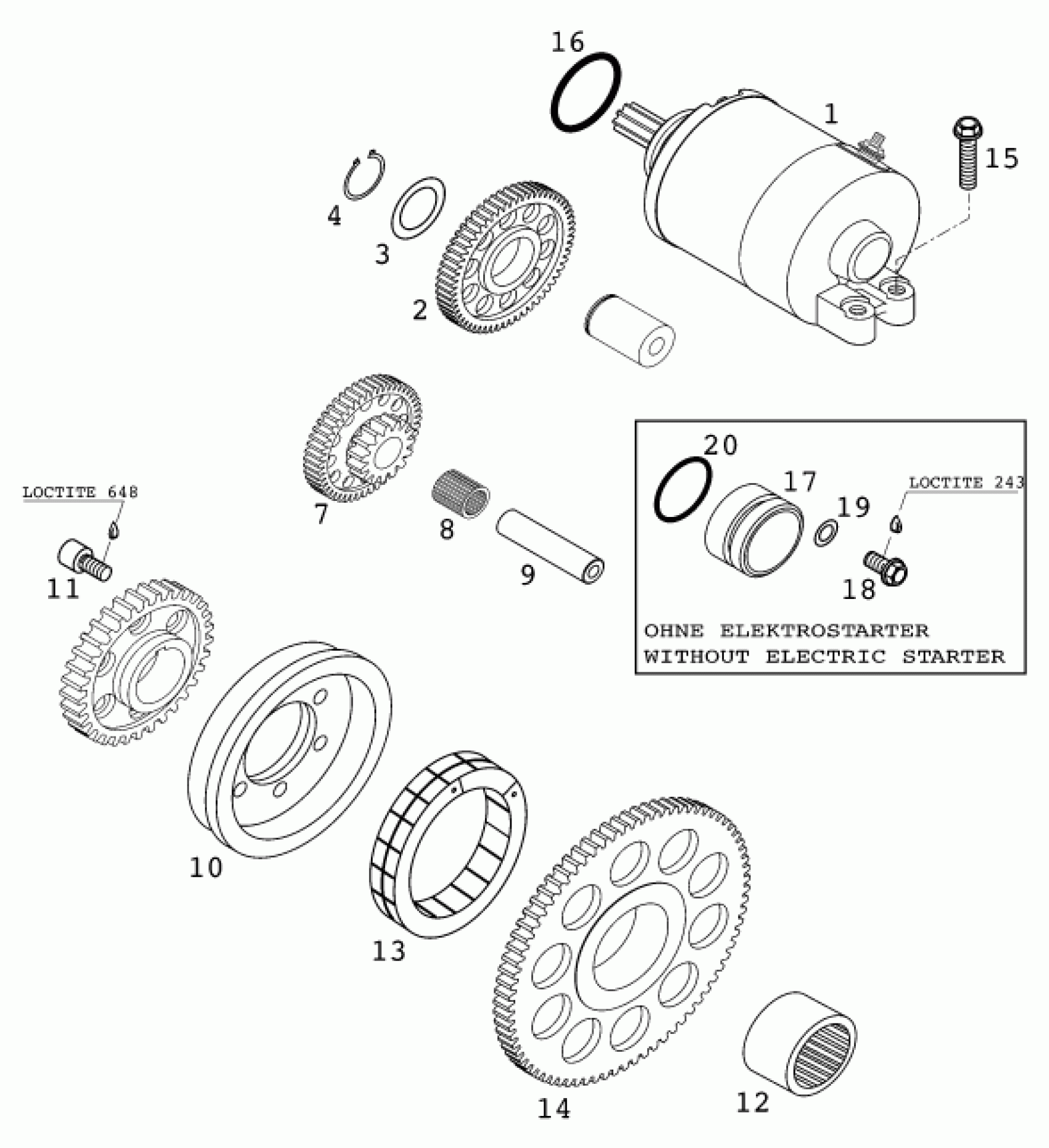

KTM 400 EXC RACING 2000 ELECTRIC STARTER Diagram

#

Description
Price

1

E-STARTER ENGINE KPL. 0,45 KW

59040001000

Unavailable

2

INTERMEDIATE GEAR 58-T

59040022058

Unavailable

3

STOP DISK 17,2X25X1

54633090000

Unavailable

4

CIRCLIP DIN0471-17X1

0471170010

Unavailable

7

REDUCTION GEAR 48-Z/15-Z

59040021048

Unavailable

8

NEEDLE BEARING K 10X13X16 TN

0405101316

Unavailable

9

BEARING BOLT

59040029000

Unavailable

10

FREE WHEEL HUB

59040025000

Unavailable

11

AH SCREW M6X12 10.9

0912060126

Unavailable

12

NEEDLE BEARING HK 3016 B

0618301617

Unavailable

13

FREE-WHEEL FWD 332008 BLS

58440026000

Unavailable

14

FREE WHEEL GEAR 75-T

59040020075

Unavailable

15

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

16

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

17

CAP COVER

59040034000

Unavailable

18

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

19

WASHER DIN0125-A 6,4

0125060003

Unavailable

20

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable
