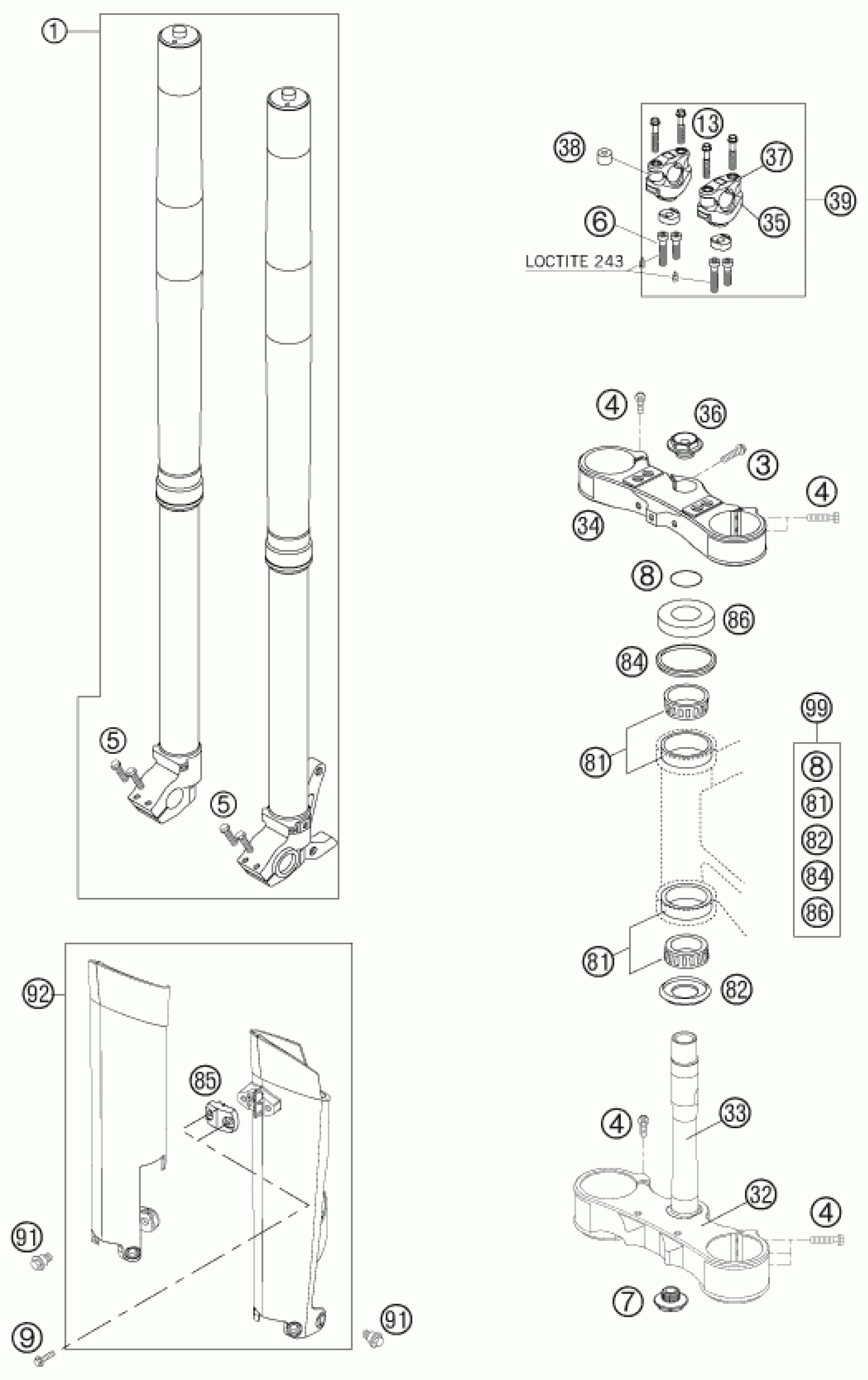

KTM 400 EXC FACTORY RACING <2007> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

3

HH COLLAR SCREW M8X25 WS=10

0015080256S

Unavailable

1

FORK WP D48 450XC450-525SD 07

14187C29

Unavailable

4

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

5

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

6

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

6

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

7

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

Unavailable

8

O-RING 25X3,55 NBR70 05

0770025035

Unavailable

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

32

BOTTOM TRIPLE CLAMP D=60MM 05

5940103101988

Unavailable

33

FORK TUBE EXC L=237MM 05

59401033100

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

38

ELASTOMER GREEN/SOFT

SXS05125203

Unavailable

38

ELASTOMER YELLOW/MEDIUM

SXS05125204

Unavailable

38

ELASTOMER RED/HARD

SXS05125205

Unavailable

39

PHDS PROGRESSIVE H-BAR DAMPING

SXS07125200

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

CLAMP FOR SPEED CABLE D=6MM 08

7800108500004

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECTIO LE+RI ORAN.08

7800109400004

Unavailable

34

TOP TRIPLE CLAMP 54MM 05

5940103401988

Unavailable

35

BASE SUPPORT

SXS07125206

Unavailable

13

HH COLLAR SCREW M 8X45 WS=10

0015080453

Unavailable

37

UPPER PAN PHDS

SXS07125208

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
