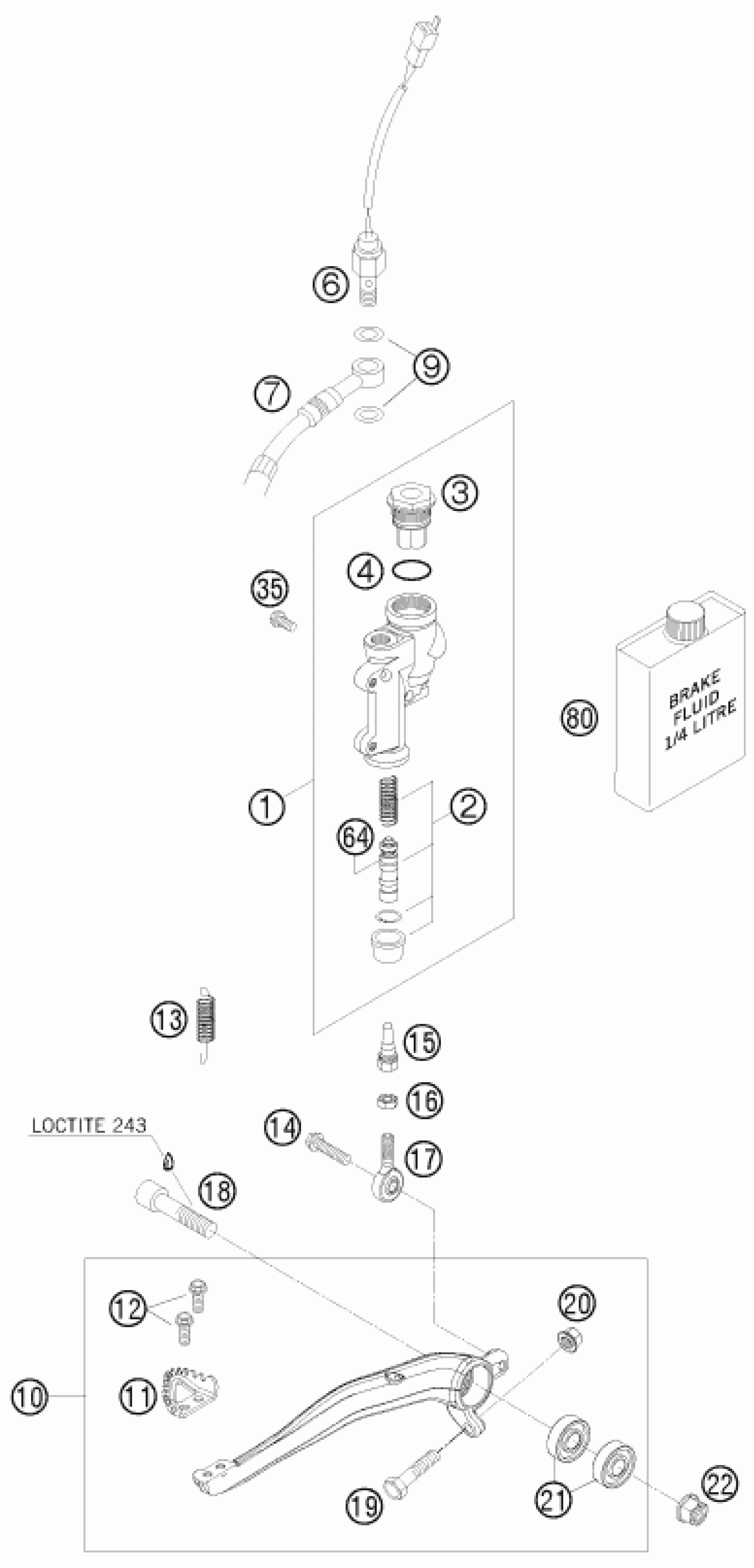

KTM 400 EXC 2011 REAR BRAKE CONTROL Diagram

#

Description
Price

11

STEP PLATE FOR BRAKE LEVER

54813051000

Unavailable

12

HH collar screw M5x12 TX30

0025050126

Unavailable

13

RETURN SPRING FOR BRAKELEVER

54603062000

Unavailable

1

REAR BRAKE CYLINDER CPL. 2004

54813060100

Unavailable

2

REPAIR KIT PISTON 13MM 06

54813061200

Unavailable

3

REAR BRAKE CYL. COVER CPL. 04

54813062100

Unavailable

4

FOOT-BRAKE CYL. GASKET SX 03

54813063000

Unavailable

6

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

7

BRAKE HOSE REAR 655MM 03

54813070000

Unavailable

9

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

10

FOOT BRAKE LEVER CPL.

78013050044

Unavailable

14

HH collar screw M6x20 TX30

0025060206S

Unavailable

15

PUSH ROD L=28MM 03

54813056000

Unavailable

16

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

17

SWIVEL HEAD KA6 03

54813055000

Unavailable

18

AH-COLLAR SCREW M10X40 ISA45

0032100406S

Unavailable

19

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

20

flanged nut M8 WS10

46030045000

Unavailable

21

deep groove ball bearing SKF 6

0625060002

Unavailable

22

COLLAR NUT M10 WS=13

54630044000

Unavailable

35

HH collar screw M6x12 TX30

0025060126

Unavailable

64

BELLOWS FOR REPAIR KIT 06

54813064200

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
