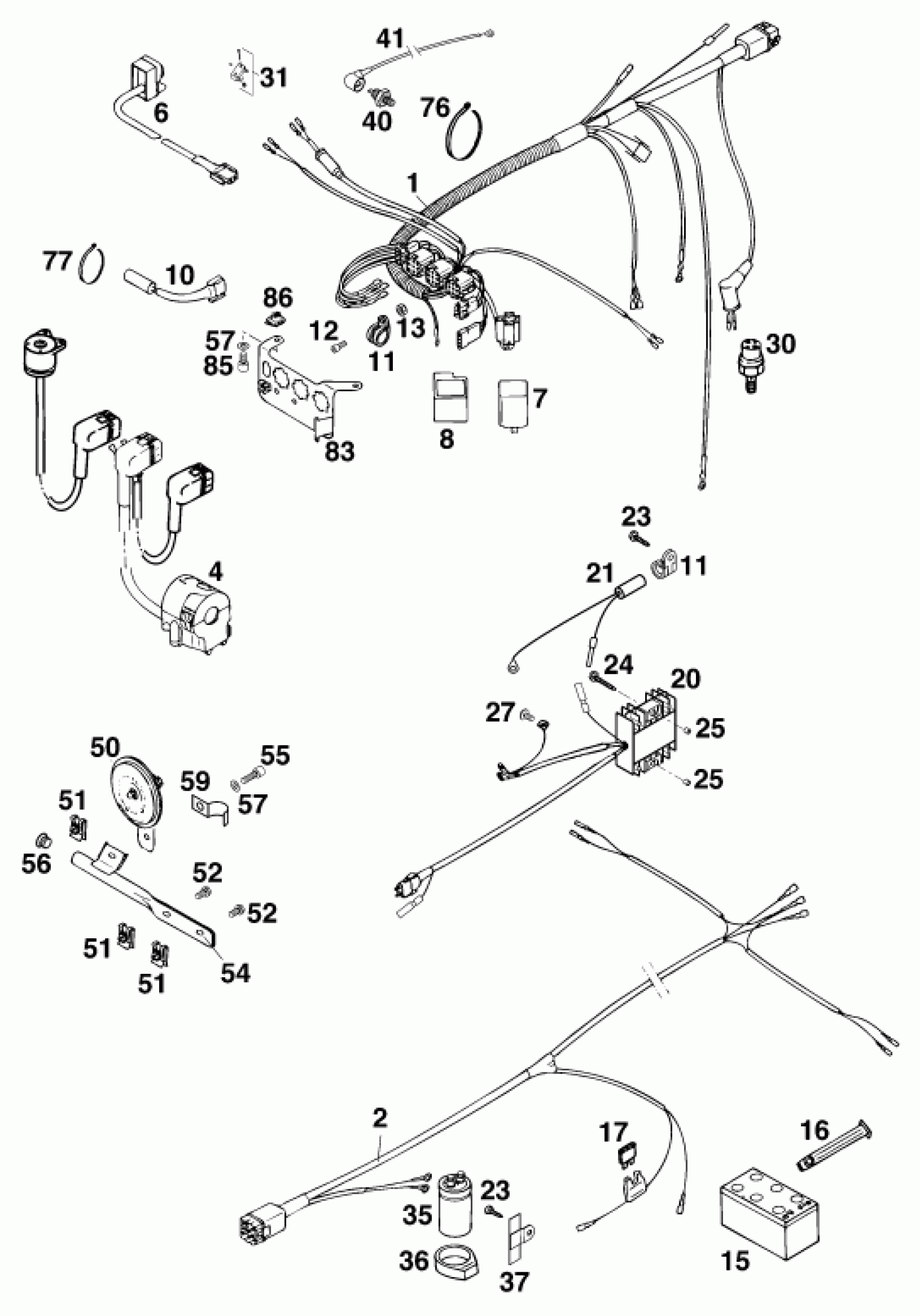

KTM 400 DUKE/ 20kW <1995> WIRING HARNESS Diagram

#

Description

Price

0

* CABLE TIE 180MM

44011076180

Unavailable

0

Cable tie 200/4.6mm black

44011076200

Unavailable

1

* MAIN WIRING HARNESS DUKE'94

58311575000

Unavailable

2

* WIRING HARNESS REAR '93

58311476000

Unavailable

4

LIGHT SWITCH KPL. CEV '94

58311570000

Unavailable

6

SHORT CIRCUIT SWITCH 550MM '94

58311071100

Unavailable

7

* FLASHER UNIT

44611207000

Unavailable

8

* FLASHER LIGHT BRACKET

54511046000

Unavailable

10

* DIODE WITH CONNECTOR '93

58311030000

Unavailable

11

CLAMP RSGU 15/12

49007439000

Unavailable

12

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

13

Self locking nut DIN 985 M5

0985050003

Unavailable

15

BATTERY 12V 1,2AH

54511008000

Unavailable

16

RUBBER BAND

54611186000

Unavailable

17

FUSE 10 A

58011109010

Unavailable

20

VOLTAGE REGULATOR SHINDENGEN

58311034100

Unavailable

21

DIODE FOR REGULATOR SHINDENGEN

58311030100

Unavailable

23

SHEET MET.SCR.DIN7981- 5,5x19

0981550193

Unavailable

24

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

Unavailable

25

BUSHING 6,5 X 12 X 9

56535035000

Unavailable

27

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

30

BRAKE LIGHT SWITCH

42013121000

Unavailable

31

BRAKE LIGHT SWITCH CPL. FRONT

58313021100

Unavailable

35

CONDENSATOR 25V, 10.000 MF

49111435100

Unavailable

36

CAPACITOR BRACKET

54511048000

Unavailable

37

BRACKET FOR CAPACITOR

54611448000

Unavailable

40

OILPRESSURE SWITCH HELLA DUKE

58338091000

Unavailable

41

* WIRING(OILPRESS SWITCH)DUKE

58338091050

Unavailable

50

DC HORN 12V NIKKO

54511060100

Unavailable

51

clip nut M6

54603048100

Unavailable

52

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

54

BRACKET FOR HORN '93

58307021000

Unavailable

55

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

56

Plug SFL16

50210086000

Unavailable

57

WASHER DIN0125-A 6,4

0125060003

Unavailable

59

CLAMP FOR WIRING HARNESS

50211096000

Unavailable

76

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

77

* CABLE TIE 200 X 5MM T50 R/SF

44011276200

Unavailable

83

CONNECTOR SUPPORT '93

58311083000

Unavailable

85

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

86

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable
