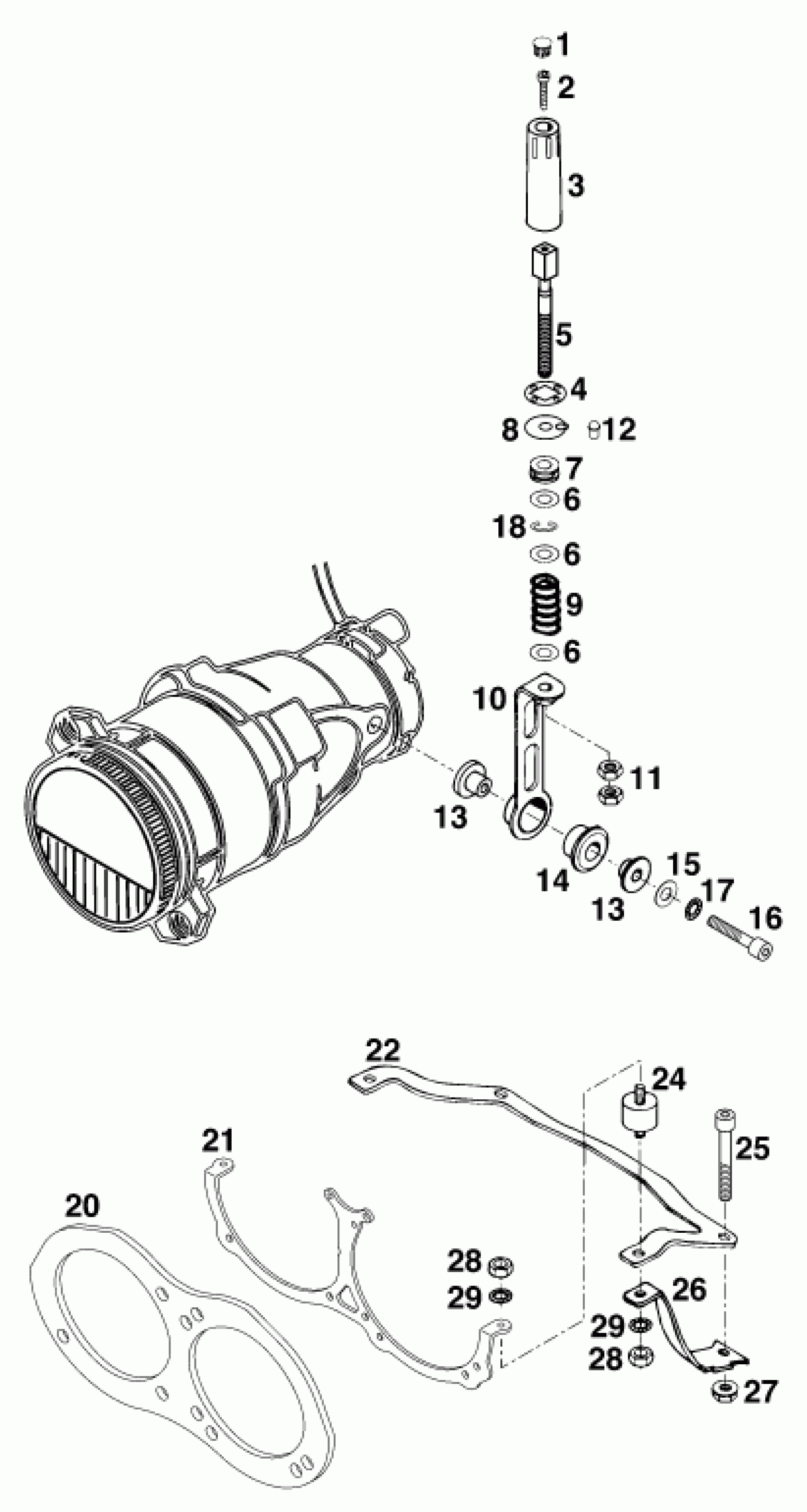

KTM 400 DUKE/ 20kW <1995> LIGHTING SYSTEM Diagram

#

Description

Price

0

HEADLIGHT SUPPORT R/S BOTTOM

58311147001

Unavailable

1

PLASTIC CAP 3/8'' 261

58301098100

Unavailable

2

AH SCREW DIN0912-M 4X16

0912040163

Unavailable

3

ADJUSTING BUTTON DUKE'94

58311049003

Unavailable

4

LOCKING WASHER DUKE'95

58311049008

Unavailable

5

ADJUSTING SCREW M8

58311049002

Unavailable

6

washer DIN 125 A -8.4

0125080003

Unavailable

7

rubber grommet D=8mm open

31008060000

Unavailable

8

SUPPORT WASHER '95

58311049009

Unavailable

9

TENSIONING SPRING 1 X 12 X 35

58311049007

Unavailable

10

ADJUSTING SCREW BRACKET DUKE94

58311049000

Unavailable

11

HEXAGON NUT DIN0936-M 8

0936080003

Unavailable

12

PRESSURE PIECE T16663

58303050054

Unavailable

13

BUSHING

54635036000

Unavailable

14

rubber bushing

56401040000

Unavailable

15

Washer DIN9021-A 6.4

0021060003

Unavailable

16

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

17

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

18

TAB WASHER DIN6799-RS 7,0

0799070000

Unavailable

20

HEADLIGHT COVER DUKE'94

58311009000

Unavailable

21

HEADLIGHT CARRIER DUKE'94

58311045000

Unavailable

22

HEADLIGHT SUPPORT TOP

58311047000

Unavailable

24

RUBBER GROMMET 20X15-M6X10 (2)

54335031000

Unavailable

25

AH SCREW DIN0912-M 6X50

0912060503

Unavailable

26

HEADLIGHT SUPPORT L/S BOTTOM

58311147000

Unavailable

27

SELF LOCKING NUT M6

56509064000

Unavailable

28

Hex. nut DIN 934 M6

0934060003

Unavailable

29

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable
