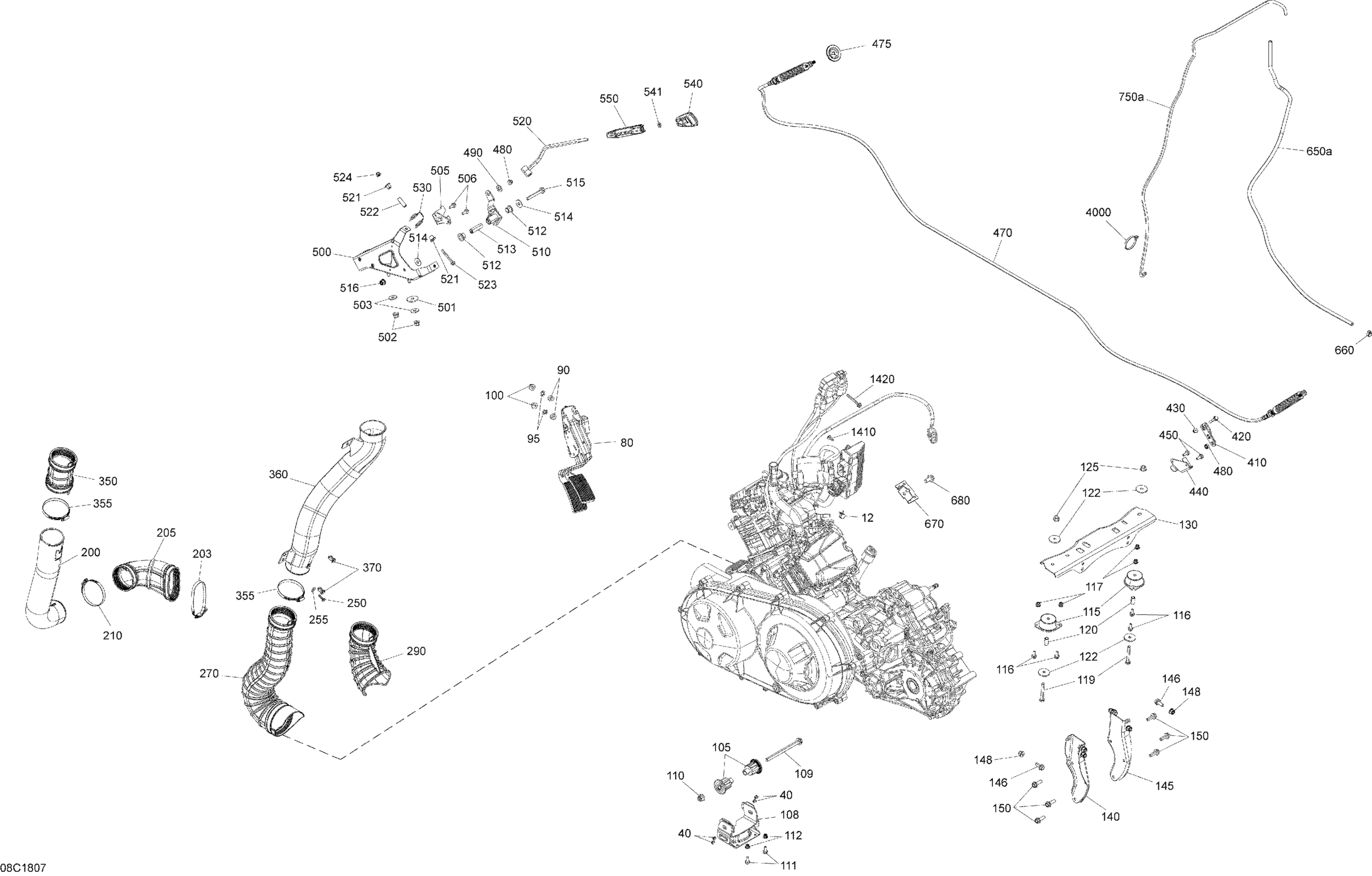

Can-Am Traxter HD10 - XMR, 2018 Engine Defender Non MAX - Package XMR Diagram

#

Description
Price

12

Norma Spring Clamp

293650214

$15.35

40

Pop Rivet 3/16"

390402200

$0.26

80

Accelerator Pedal

707001599

$276.89

90

Bushing

707000848

$1.08

95

Push Nut

250100031

$6.86

100

Hex. Flange Nut M8

233081416

Unavailable

105

Vibration Damper

707001169

Unavailable

108

Vibration Damper | Includes 108 to 108d

707003061

Unavailable

109

Hex. Flange Screw M10 X 135

230603546

Unavailable

110

Hex. Flange Elastic Nut M10

233201436

Unavailable

111

Hex. Flange Screw M6 X 16

207661644

Unavailable

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

115

Rubber Mount

707001867

Unavailable

116

Hex. Flange Screw M6 X 16

207661644

Unavailable

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

119

Hex. screw M8 x 60

207186044

Unavailable

120

Bushing

707001908

Unavailable

122

Flat Washer M8

250200158

Unavailable

125

Hex. Flange Nut M8

233081416

Unavailable

130

Rear Link Bracket

707002290

Unavailable

140

LH Rear Engine Support

707001610

$12.31

145

RH Rear Engine Support

707003340

Unavailable

146

Hex. Flange Screw M8 X 20

207682046

Unavailable

148

Hex. Elastic Flange Nut M8

233281416

Unavailable

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

200

Front CVT Cooling Duct

706600326

$59.97

203

Norma Gear Clamp

514052983

$11.43

205

Flexible Adapter

706600249

$18.43

210

Norma Clamp

293650091

Unavailable

250

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

255

Washer M5

250200025

Unavailable

270

Flexible Adapter

706600198

$27.66

290

Air Baffle

706600199

$27.66

350

Flexible Join

706600204

$27.66

355

Norma Clamp

293650091

Unavailable

360

Pipe Ass'y | Includes 360 to 360b

706600279

$32.28

370

Tuflok Plastic Rivet

293150230

Unavailable

410

Lever

707000911

Unavailable

420

Hex. Flange Screw M6 X 35

207663544

$0.74

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

440

Cable Support

707001614

$15.22

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

470

Shifting Cable

707002227

Unavailable

475

Grommet

293720109

$8.05

480

Hex. Elastic Stop Nut M8

232581414

Unavailable

490

Flat Washer 10 mm

234001410

Unavailable

500

Shifter Braket

707002003

Unavailable

501

Flat Washer M8

250200158

Unavailable

502

Hex. Flange Elastic Nut M8

233281414

Unavailable

503

Flat Washer 8 mm

234082410

$1.11

505

Cable Support

707002038

Unavailable

506

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

510

Lower Shifter Arm

707002268

Unavailable

512

Venturi Bushing

293900001

Unavailable

513

Bushing

707003445

Unavailable

514

Flat Washer 8 mm

234082410

$1.11

515

Hex. Flange Screw M8 x 60

207686044

$2.56

516

Hex. Flange Elastic Nut M8

233281414

Unavailable

520

Welded Arm

707002230

Unavailable

521

Flanged Bushing

707000869

$2.20

522

Bushing

707001376

$4.22

523

Hex. Flange Screw M6 X 50

207665044

Unavailable

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

530

Lever Arm Spring

707000750

$2.75

540

Lever Trim

707003211

Unavailable

541

Hex. Jam Nut M8

232180491

Unavailable

550

Shifting Arm Cover

707001899

Unavailable

650a

Hose

219704549

Unavailable

660

Oetiker Clamp

293650042

Unavailable

670

Cable Support

710004561

Unavailable

680

Hex Flange Screw M10 X 20

207502044

Unavailable

750a

Polyurethane Hose 10000Mm Long

219704410

Unavailable

1410

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

1420

Hex. Flange Screw M6 X 50

207665044

Unavailable

4000

Tie Wrap 368 mm

293750008

$0.85
