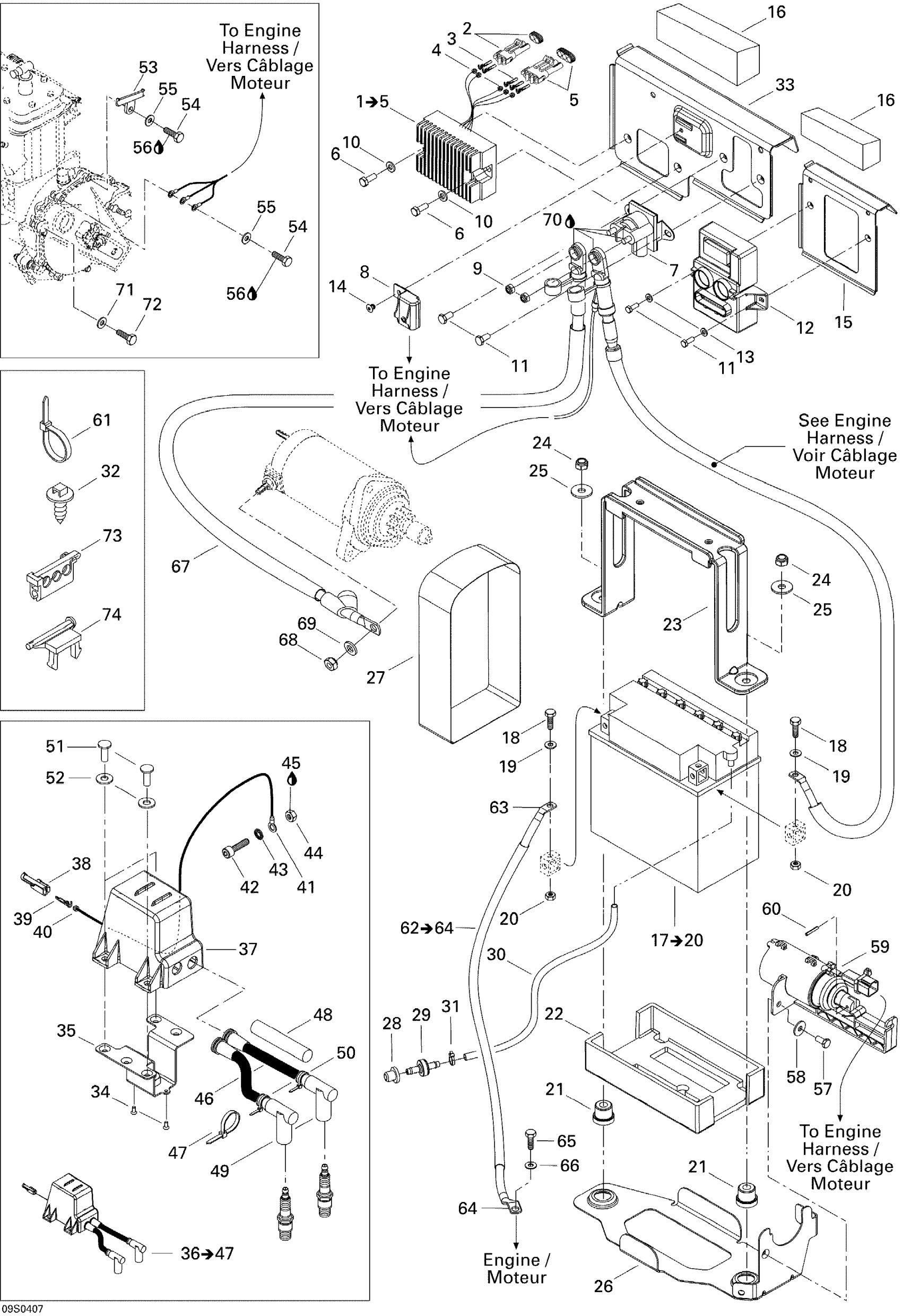

Sea-doo 3D RFI, 2004 Electrical System Diagram

#

Description
Price

1

Rectifier Ass’Y | Includes 30 - 34.

278001554

Unavailable

2

Male Connector, 2 Circuits

278000220

Unavailable

3

Female Terminal

409007300

Unavailable

4

Wire Seal

278000218

Unavailable

5

Male Housing, 3 Circuits

278000273

Unavailable

6

Hex. Screw M6 X 16, Scotch Grip

207361660

Unavailable

7

Starter Relay

278003012

Unavailable

8

Fuse Holder Cap

278001326

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

Unavailable

10

Stainless Flat Washer M6

234061600

Unavailable

11

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

12

Otas Control

278002038

Unavailable

13

Flat Washer M6, Stainless

234062600

Unavailable

14

Pop Rivet 3/16"

204000081

Unavailable

15

Support

278001971

Unavailable

16

Foam

278001982

Unavailable

17

Battery 19A | Includes 5 to 8

278001756

Unavailable

18

Hex. Screw M6 X 16

207161644

Unavailable

19

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

20

Hex. Nut M6

232061414

Unavailable

21

BUSHING - Call your local BRP dealership

278001940

Unavailable

22

LOWER BATTERY PAD - Call your local BRP dealership

278001976

Unavailable

23

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

24

Hex. Elastic Nut M8

232581600

Unavailable

25

Flat Washer 8 mm, Stainless

234082600

Unavailable

26

Battery Braket

278001946

Unavailable

27

Battery Strap 297mm

278001765

Unavailable

28

Grommet

293720029

Unavailable

29

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

30

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

31

Tie Wrap 94 mm | 4X4

293750001

Unavailable

32

Mount Dart

293730040

Unavailable

33

Support

278001945

Unavailable

34

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

35

Support

278001983

Unavailable

36

Ignition Coil Ass'y | Includes 32 to 43

278001926

Unavailable

37

Ignition Coil

278001546

Unavailable

38

Female Housing, 1 Circuit

278000161

Unavailable

39

Male Terminal

409004300

Unavailable

40

Wire Seal

278000218

Unavailable

41

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

42

Socket Head Screw M6 X 20

205062044

Unavailable

43

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

44

Elastic Stop Nut M6

232561414

Unavailable

45

Loctite 271, 10 ml

293800005

Unavailable

46

Spark Plug Wire

278001927

Unavailable

46

Spark Plug Wire

278001465

Unavailable

47

Tie Wrap 142 mm

293750002

Unavailable

48

Was 409901700 Tubing (9 mm)

219704399

Unavailable

49

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

50

Tie Wrap 142 mm

293750002

Unavailable

51

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

52

Stainless Flat Washer M6

234061600

Unavailable

53

Clip

278001873

Unavailable

54

TAPTITE SCREW M6 X 25 - Call your local BRP dealership

420841543

Unavailable

55

Stainless Flat Washer M6

234061600

Unavailable

56

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

57

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

58

Flat Washer M6, Stainless

234062600

Unavailable

59

Solenoid Ass'y

278001954

Unavailable

60

Spring Pin

250400014

Unavailable

61

Tie Wrap 94 mm | 4X4

293750001

Unavailable

61

Tie Wrap 142 mm

293750002

Unavailable

61

Tie-Rap 180 mm

414115200

Unavailable

61

Tie-Rap 173 mm

293750009

Unavailable

61

Tie Wrap 368 mm

293750008

Unavailable

62

Battery Ground Cable

278001918

Unavailable

63

OPEN BARREL - Call your local BRP dealership

710000538

Unavailable

64

Open Barel

710000635

Unavailable

65

Hex. Screw M8 X 20, Scotch Grip

250000150

Unavailable

66

Stainless, Flat Washer 8 mm

234081600

Unavailable

67

Starter Cable

278001804

Unavailable

68

Hex. Elastic Stop Nut M6

232561600

Unavailable

69

Stainless Flat Washer M6

234061600

Unavailable

70

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

71

Stainless Flat Washer M6

234061600

Unavailable

72

Hex. Screw M6 X 16, Scotch Grip

207361660

Unavailable

73

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

74

Collar Support

278001096

Unavailable
