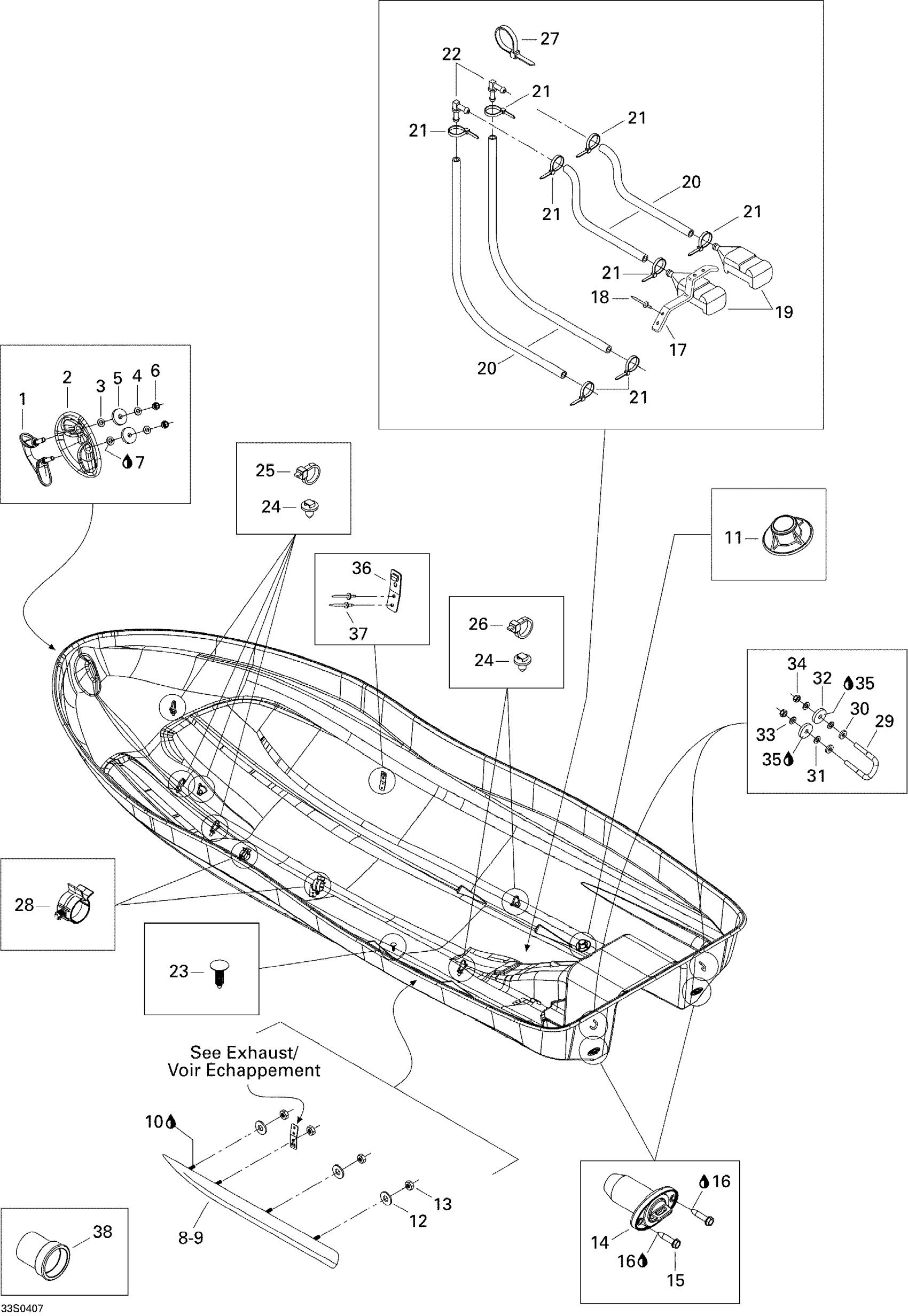

Sea-doo 3D RFI, 2004 Hull Diagram
#
1
Eye-Bow (Black) This part replaces 292000708.
292000452
Unavailable
2
Black Shell
292001837
Unavailable
3
Stainless, Flat Washer 8 mm
234081600
Unavailable
4
Flat Washer 8 mm, Stainless
250200175
Unavailable
5
Rubber Washer
293830037
Unavailable
6
Hex. Elastic Nut M8
232581600
Unavailable
7
Silicone Sealant 51388, 300 ml
296000309
Unavailable
8
RH SPONSON - Call your local BRP dealership
292000411
Unavailable
9
LH SPONSON - Call your local BRP dealership
292000412
Unavailable
10
Silicone Sealant 51388, 300 ml
296000309
Unavailable
11
Insulator
292000992
Unavailable
12
Flat Washer M6, Stainless
234062600
Unavailable
13
Hex. Elastic Stop Nut M6
232561600
Unavailable
14
Drain Plug
292001252
Unavailable
15
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
16
Silicone Sealant 51388, 300 ml
296000309
Unavailable
17
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
18
Avdel Rivet 3/16"
293150037
Unavailable
19
Bailer Screen
292000688
Unavailable
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
21
Tie Wrap 94 mm | 4X4
293750001
Unavailable
22
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
23
Black, Dart
293730006
Unavailable
24
Mount Dart
293730040
Unavailable
25
Tie-Rap 180 mm
414115200
Unavailable
26
Tie Wrap 368 mm
293750008
Unavailable
27
Tie Wrap 368 mm
293750008
Unavailable
28
Retainer
275500590
Unavailable
29
U-Clamp
292000933
Unavailable
30
Flat Washer M8.5 x 18
293050001
Unavailable
31
Flat Washer 8 mm, Nylon
234081100
Unavailable
32
Rubber Washer
293830037
Unavailable
33
Flat Washer 8 mm, Stainless
250200175
Unavailable
34
Hex. Elastic Nut M8
232581600
Unavailable
35
Silicone Sealant 51388, 300 ml
296000309
Unavailable
36
Strap Clip
293850030
Unavailable
37
Avdel Rivet 3/16"
293150037
Unavailable
38
HULL INSERT, 33 MM - Call your local BRP dealership
292000075
Unavailable
