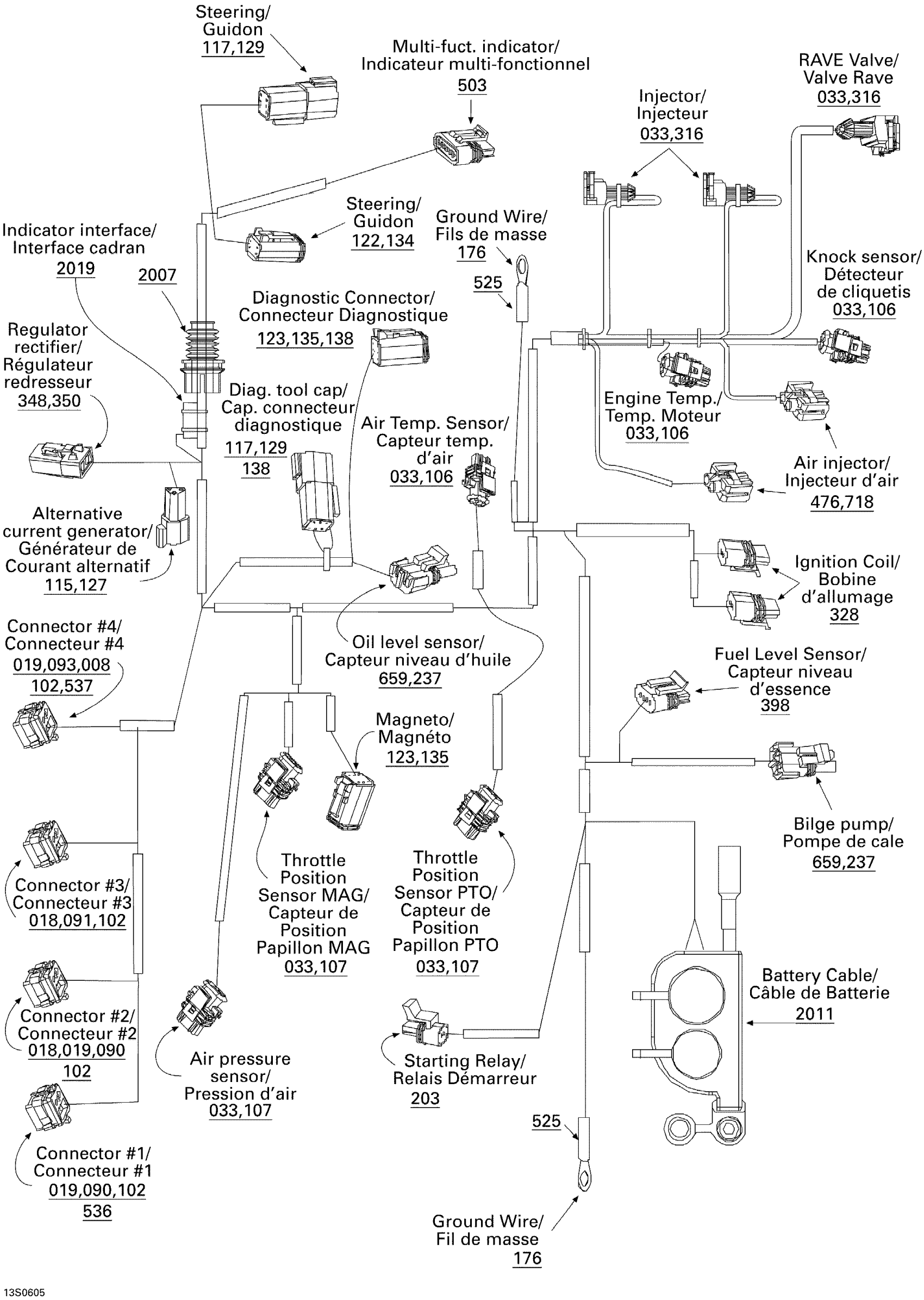

Sea-doo 3D 947 DI, 2006 Electrical Harness Diagram

#

Description
Price

1

Main Harness | Includes 1 to 2011

278002083

Unavailable

7

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

8

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

18

Seal

278001223

Unavailable

19

SEAL - Call your local BRP dealership

409013900

$9.20

32

Female Terminal

278000998

$3.48

33

Wire Seal

278000999

$2.55

86

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

90

Male Terminal Housing, 26 Circuits

278001062

Unavailable

91

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

93

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

102

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

106

Male Housing, 2 Circuits

278001005

$15.57

107

Male Housing, 3 Circuits

278000997

$15.57

110

Male Terminal

278000631

$4.12

112

Female Terminal

278000632

Unavailable

115

Male Housing

278002378

Unavailable

117

Male Terminal Housing, 6 Circuits

710001539

$15.57

122

Male Connector, 4 Circuits | CE

278000739

$14.92

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

127

Male Lock, 3 Circuits

409207600

$3.02

129

Female Lock, 6 Circuits

278000735

$3.02

134

Male Lock, 4 Circuits | CE

278000738

$2.91

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

Unavailable

176

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

196

Tie Wrap 142 mm

293750002

Unavailable

202

Female Terminal

278001114

$2.55

203

Male Connector, 2 Circuits

278001113

$12.65

229

Female Terminal

278000223

Unavailable

237

Male Connector, 2 Circuits

278000220

$11.02

242

Wire Seal

278000218

Unavailable

316

Male Connector, 2 Circuits

278001003

Unavailable

320

Female Terminal

515175567

$6.03

328

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

348

Female Terminal Housing, 2 Circuits

278001673

$23.05

350

Female Lock, 2 Circuits

278001671

$3.22

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

474

Female Terminal

278001481

$3.02

476

Seal

278001482

$2.55

501

FEMALE TERMINAL - Call your local BRP dealership

710000412

Unavailable

503

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000414

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

536

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

537

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

Unavailable

538

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

659

Wire Seal

278001065

Unavailable

718

MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership

278001480

Unavailable

2007

GROMMET - Call your local BRP dealership

293720042

Unavailable

2011

Battery Cable

278002097

Unavailable

2019

GAUGE INTERFACE - Call your local BRP dealership

278002106

Unavailable
