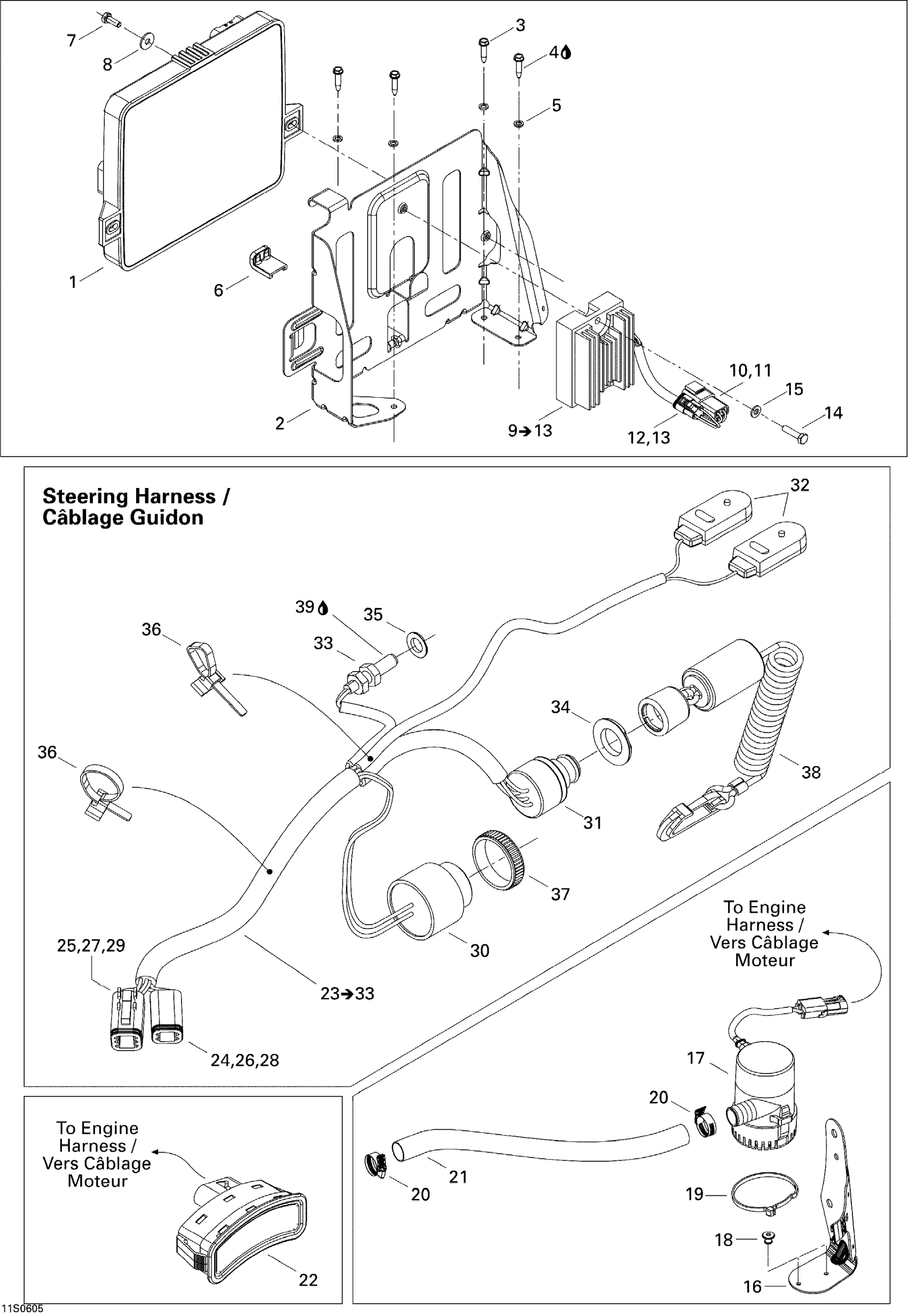

Sea-doo 3D 947 DI, 2006 Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE - Call your local BRP dealership

278002090

Unavailable

2

Module Support

278002095

Unavailable

3

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

4

Loctite 271, 10 ml

293800005

Unavailable

5

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

6

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

7

Hex. Screw M6 X 16, Scotch Grip

207361660

Unavailable

8

Flat Washer M6, Stainless

234062600

Unavailable

9

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

10

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

11

Male Terminal

278000631

$4.12

12

Male Housing, 2 Circuits

409206900

Unavailable

13

Male Terminal

515175568

$7.48

14

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

Unavailable

15

Stainless Flat Washer M6

234061600

$0.25

16

BILGE SUPPORT - Call your local BRP dealership

271000897

Unavailable

17

Bilge Pump This part replaces 204470220.

278002020

Unavailable

18

Pop-Rivet 5/32

293150059

Unavailable

19

Tie Wrap 368 mm

293750008

$0.85

20

Tridon Gear Clamp

293650172

$2.68

21

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

22

Multi-fonction Indicator

278001903

Unavailable

23

STEERING HARNESS - Call your local BRP dealership | Includes 23 to 33

278002113

Unavailable

24

Male Terminal

278000631

$4.12

25

Female Terminal

278000632

Unavailable

26

Female Housing, 4 Circuits

278000635

$14.02

27

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

28

Female Wedge, 4 Circuits

278000636

$4.12

29

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

30

BUZZER - Call your local BRP dealership

278001586

Unavailable

31

SAFETY SWITCH - Call your local BRP dealership

278001944

Unavailable

32

SWITCH START / STOP ASS'Y - Call your local BRP dealership

278001933

Unavailable

33

OTAS SENSOR - Call your local BRP dealership

278002068

Unavailable

34

Safety Nut (DESS Switch)

278002963

$2.72

35

Flat Washer 10 mm, Stainless

234000600

Unavailable

36

Tie-Rap 173 mm

293750009

Unavailable

37

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

38

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

38

Safety Lanyard, Learning Key

278002203

Unavailable

39

Loctite 243, 10 ml

293800060

$20.77
