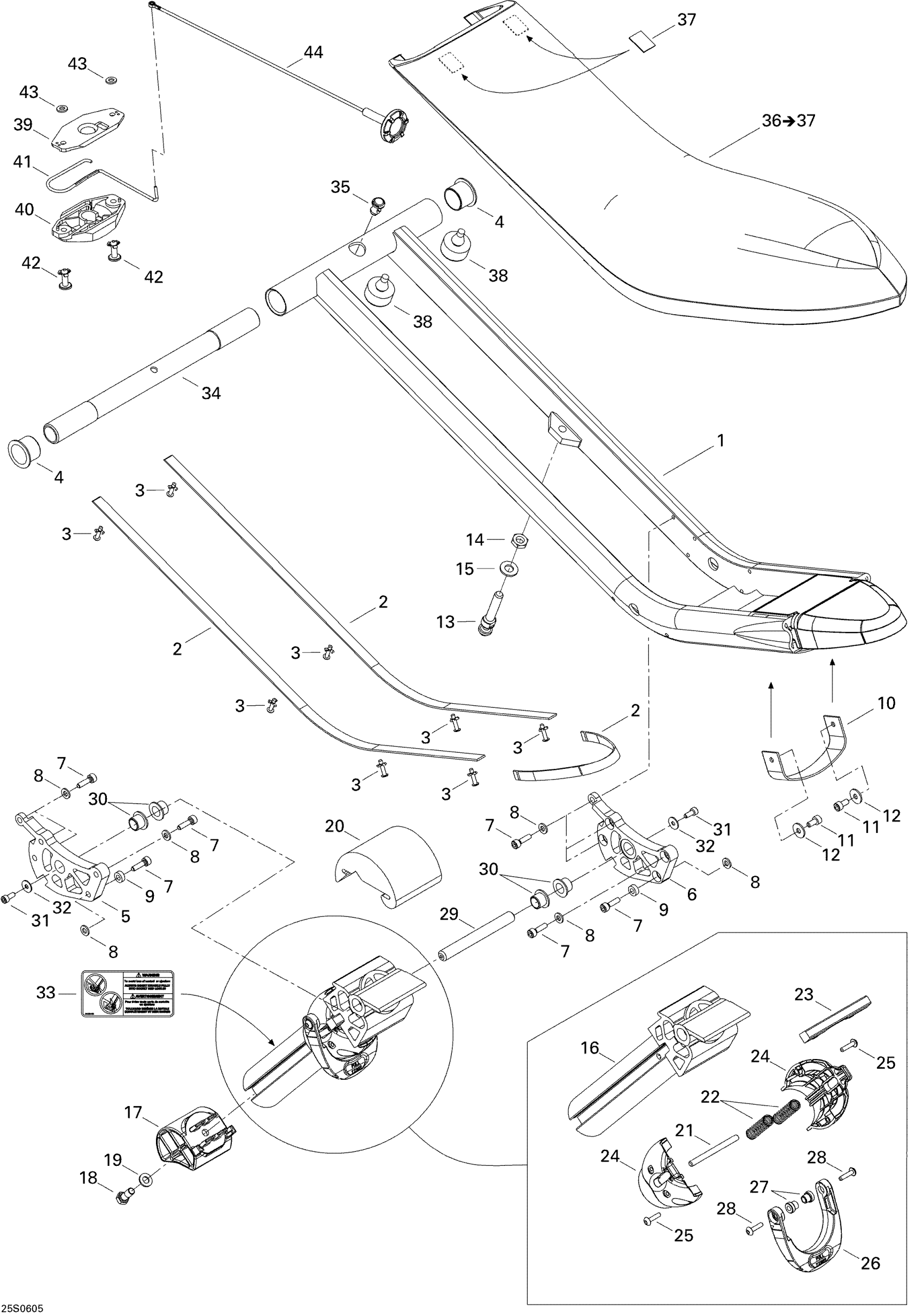

Sea-doo 3D 947 DI, 2006 Seat Diagram

#

Description
Price

1

Seat Structure, Black

269001116

Unavailable

2

Velcro

293740012

Unavailable

3

Avdel Rivet 3/16"

293150037

$0.47

4

BUSHING - Call your local BRP dealership

293900055

Unavailable

5

LH Seat Pivot

269001161

Unavailable

6

RH Seat Pivot

269001162

Unavailable

7

Socket Head Screw M6 X 20, Scotch Grip

205562060

Unavailable

8

Stainless Flat Washer M6

234061600

$0.25

9

SPACER - Call your local BRP dealership

269501172

Unavailable

10

Seat Belt

269001003

Unavailable

11

Socket Head Screw M6 X 12, Scotch Grip

205561260

Unavailable

12

Flat Washer M6, Stainless

234062600

Unavailable

13

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

14

Hex. Jam Nut M10

232100600

Unavailable

15

Flat Washer 10 mm, Stainless

234001600

Unavailable

16

Post, Black

269001119

Unavailable

17

BALL JOINT - Call your local BRP dealership

269001005

Unavailable

18

Hex. Screw M8 X 20, Scotch Grip

207382060

Unavailable

19

Stainless, Flat Washer 8 mm

234081600

Unavailable

20

POST FOAM - Call your local BRP dealership

269001118

Unavailable

21

Blocking Rod

269001122

Unavailable

22

Lock Spring

269001009

Unavailable

23

Lock

269001004

Unavailable

24

Half Lock

269001008

Unavailable

25

PLASTITE ALLEN BUTTON HEAD SCREW - Call your local BRP dealership

250000193

Unavailable

26

Lever

269001076

Unavailable

27

LEVER BUSHING - Call your local BRP dealership

269001077

Unavailable

28

PLASTITE ALLEN BUTTON HEAD SCREW - Call your local BRP dealership

250000193

Unavailable

29

Post Axe

269001305

Unavailable

30

Venturi Bushing

293900001

Unavailable

31

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

205051260

Unavailable

32

Flat Washer 5 mm, Stainless

234052600

Unavailable

33

Warning Label, Loss Of Control

219902450

Unavailable

34

E-coat Seat Axe

269001252

Unavailable

35

Tuflok Plastic Rivet

293150230

Unavailable

36

Seat Foam Ass'y | Includes 36 to 37

269001307

Unavailable

37

Velcro

293740015

Unavailable

38

Rubber Stopper

708000758

Unavailable

39

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

40

Latch Base

269001213

Unavailable

41

LATCH SPRING - Call your local BRP dealership

269700090

$12.28

42

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

43

Flat Washer M6, Stainless

234062600

Unavailable

44

Lock Rod Ass'y

269001079

Unavailable
