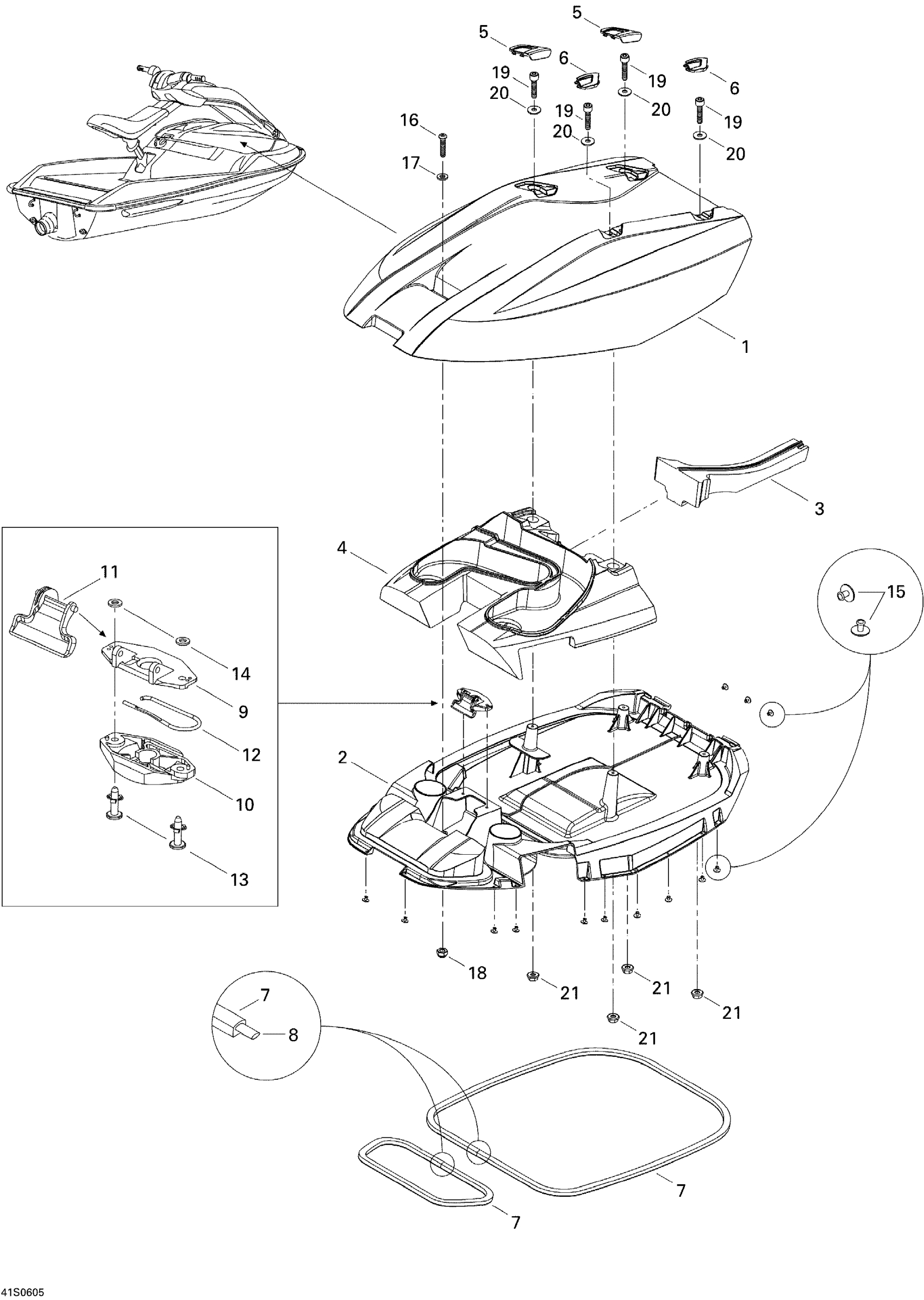

Sea-doo 3D 947 DI, 2006 Engine Cover Diagram

#

Description
Price

1

UPPER ENGINE COVER, VIPER RED - Call your local BRP dealership

269700095

Unavailable

2

Lower Engine Cover

269700084

Unavailable

3

FRONT VENTILATION BAFFLE - Call your local BRP dealership

269700093

Unavailable

4

REAR VENTILATION BAFFLE - Call your local BRP dealership

269700094

Unavailable

5

LH BOLT COVER, VIPER RED - Call your local BRP dealership

269700096

Unavailable

6

RH Bolt Cover, Viper Red

269700097

Unavailable

7

Was 293200017 Neoprene Seal

219704365

Unavailable

8

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

9

Latch Ass'y

269700109

Unavailable

10

Latch Ass'y

269700109

Unavailable

11

Latch Ass'y

269700109

Unavailable

12

Latch Spring

269700017

$7.27

13

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

14

Stainless Flat Washer M6

234061600

$0.25

15

Pop Rivet 3/16”

293150092

Unavailable

16

SOCKET SCREW M5 X 25 - Call your local BRP dealership

205452560

Unavailable

17

Flat Washer 5 mm, Stainless

234052600

Unavailable

18

Hex. Elastic Nut M5 | X

232551600

Unavailable

19

Socket Head Screw M6 X 25, Scotch Grip

250000076

Unavailable

20

Flat Washer M6, Stainless

234062600

Unavailable

21

Hex. Flange Nut M6

233161600

Unavailable
