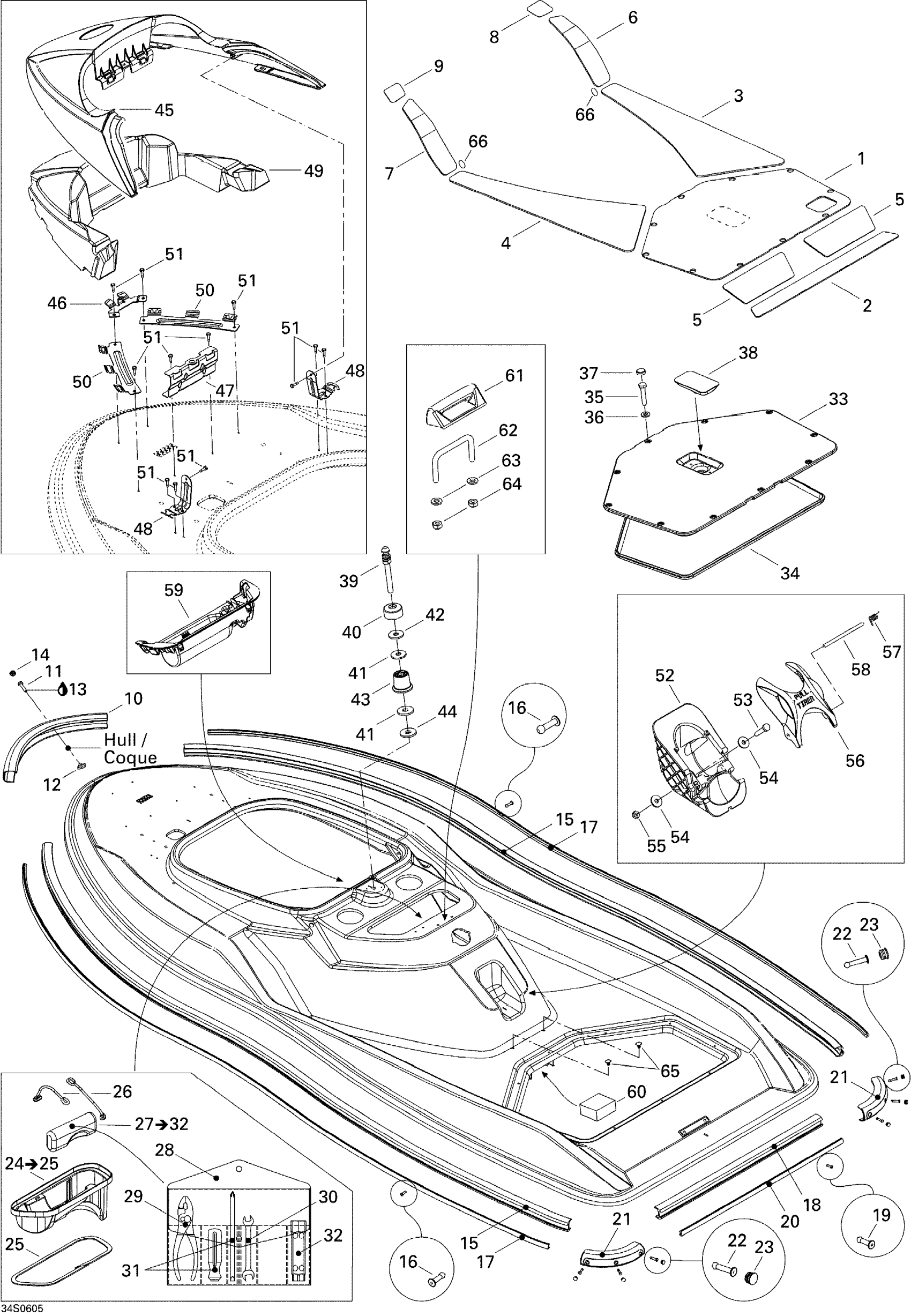

Sea-doo 3D 947 DI, 2006 Body Diagram
#
1
REAR DOOR CARPET - Call your local BRP dealership | CDN/USA
291002394
Unavailable
1
REAR DOOR CARPET - Call your local BRP dealership | International
291002395
Unavailable
2
REAR CARPET, BLACK - Call your local BRP dealership
291002396
Unavailable
3
RH CENTER CARPET - Call your local BRP dealership
291002397
Unavailable
4
LH CENTER CARPET - Call your local BRP dealership
291002398
Unavailable
5
Rear Lateral Carpet
291002372
Unavailable
6
RH FRONT CARPET - Call your local BRP dealership | International
291002399
Unavailable
7
LH FRONT CARPET - Call your local BRP dealership | International
291002400
Unavailable
8
RH ANTI-SKID - Call your local BRP dealership
291001758
Unavailable
9
LH Anti-Skid
291001759
Unavailable
10
BUMPER NOSE - Call your local BRP dealership
291000801
Unavailable
11
Phillips Screw M5 X 25
208652560
Unavailable
12
NUT-WELD M5 - Call your local BRP dealership
250100044
Unavailable
14
Bumper Plug, Black
291001519
Unavailable
15
Black, Side Bumper
204050270
Unavailable
16
Pop Rivet 3/16"
293150005
Unavailable
17
Side Bumper Trim, Viper Red
291001979
Unavailable
18
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
19
Pop Rivet 3/16"
293150005
Unavailable
20
Rear Bumper Trim, Viper Red
291001980
Unavailable
21
Bumper Corner
291002244
Unavailable
23
Bumper Plug, Black
291000339
Unavailable
24
Central Luggage Tray | Includes 24 to 25
269501251
Unavailable
25
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
26
Strap
269501299
Unavailable
27
Tool Kit | Includes 27 to 32
294000746
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
31
SCREW DRIVER - Call your local BRP dealership
529000004
Unavailable
32
Socket Wrench 10/13 mm
529014900
Unavailable
33
Rear Cover Ass
269501444
Unavailable
34
Was 293200017 Neoprene Seal
219704365
Unavailable
35
Hex. Screw M6 X 30
207063060
Unavailable
37
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
38
Foam Latch | CDN/USA
291002045
Unavailable
39
LATCH STUD - Call your local BRP dealership
291002040
Unavailable
40
Rubber Pad
293830025
Unavailable
41
Flat Washer 10 mm, Stainless
234002600
Unavailable
42
Flat Washer 10 mm, Stainless
234001600
Unavailable
43
Spacer Ring
291001089
Unavailable
44
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
45
Front Cover
277001417
Unavailable
46
Deflector Support
291002021
Unavailable
47
Central Deflector Support
291002037
Unavailable
48
Rear Deflector Support
291002038
Unavailable
49
Deflector Foam
291002039
Unavailable
50
Lateral Deflector Support
291002041
Unavailable
51
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
52
BASE - Call your local BRP dealership
269001019
Unavailable
53
Hex. Screw M6 X 25
207162560
Unavailable
54
Flat Washer M6, Stainless
234062600
Unavailable
56
BASE DOOR - Call your local BRP dealership
269001129
Unavailable
57
DOOR SPRING - Call your local BRP dealership
269001130
Unavailable
58
DOOR SHAFT - Call your local BRP dealership
269001131
Unavailable
60
Deck Foam
291002031
Unavailable
61
POLE HOOK - Call your local BRP dealership
269001404
Unavailable
62
U BOLT - Call your local BRP dealership
269001142
Unavailable
66
Decal | CDN/USA
219902800
Unavailable
