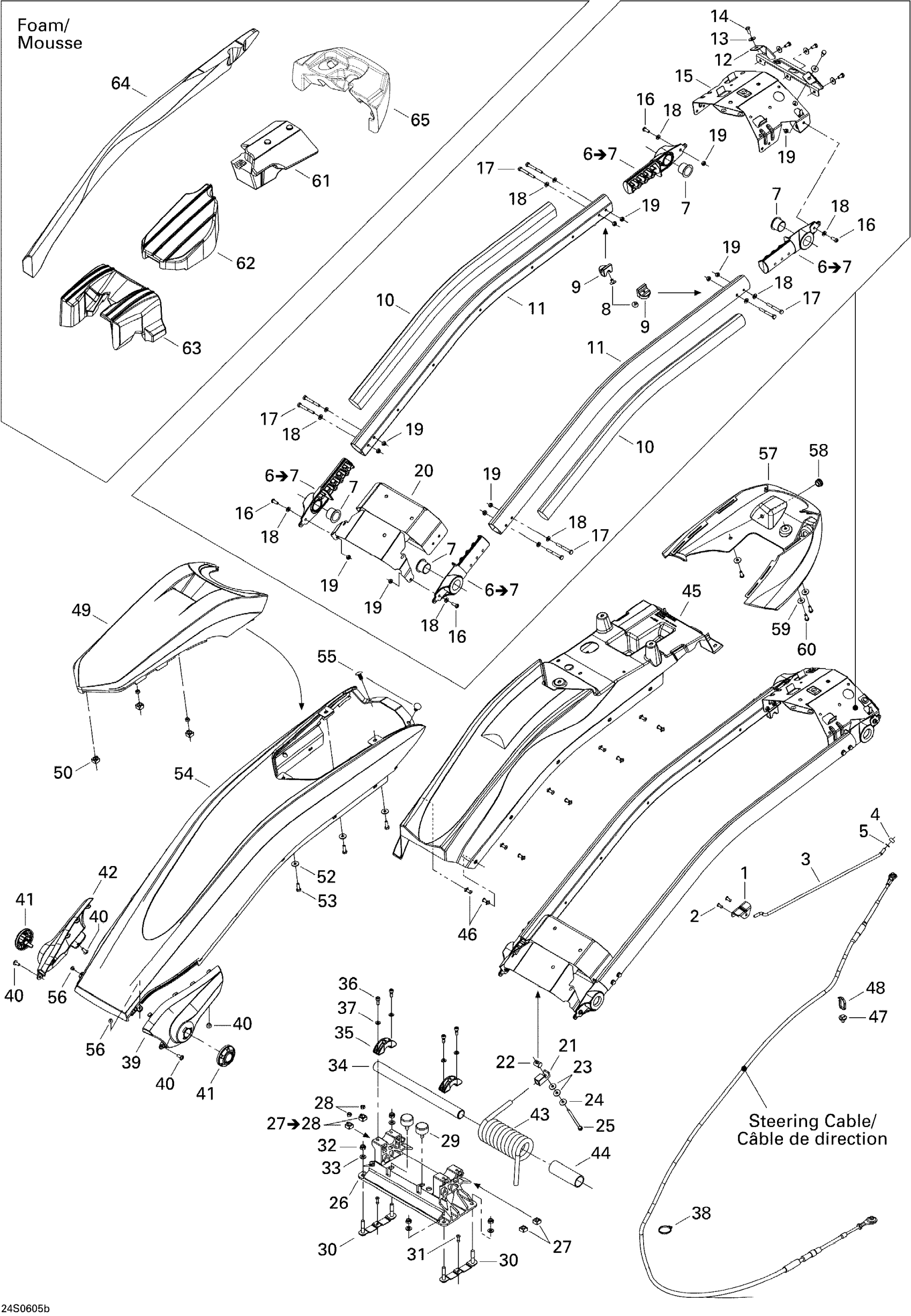

Sea-doo 3D 947 DI, 2006 Steering System 2 Diagram

#

Description
Price

1

Prop Rod Hold

277001311

Unavailable

2

Pop Rivet 3/16"

293150043

Unavailable

3

PROP ROD - Call your local BRP dealership

277001310

Unavailable

4

Shock Washer

293720075

Unavailable

5

Stainless Flat Washer M6

234061600

$0.25

6

END ASS'Y - Call your local BRP dealership | Includes 6 to 7

277001312

Unavailable

7

BUSHING - Call your local BRP dealership

293900055

Unavailable

8

Pop Rivet 3/16”

293150092

Unavailable

9

RUBBER BUMPER - Call your local BRP dealership

277001294

Unavailable

10

Pole Float

277001348

Unavailable

11

BEAM - Call your local BRP dealership

277001493

Unavailable

12

BUMPER SUPPORT - Call your local BRP dealership

277001349

Unavailable

13

Flat Washer M6, Stainless

234062600

Unavailable

14

Socket Head Screw M6 X 12, Scotch Grip

205561260

Unavailable

15

Support

277001340

Unavailable

16

Hex. Screw M6 X 16

207161660

Unavailable

17

Hex. Screw M6 X 50

207065060

Unavailable

18

Stainless Flat Washer M6

234061600

$0.25

19

Hex. Elastic Stop Nut M6

232561600

$0.92

20

STIFFENER - Call your local BRP dealership

277001228

Unavailable

21

Spring Hook

277001341

Unavailable

22

Cylindrical Nut

277001342

Unavailable

23

Flat Washer 6 mm

234062100

Unavailable

24

Flat Washer M6, Stainless

234062600

Unavailable

25

Hex. Screw M6 X 90

207169060

Unavailable

26

MOUNT BRIGE - Call your local BRP dealership

277001230

Unavailable

27

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

29

Rubber Stopper

708000758

Unavailable

30

Retainer Plate

277001231

Unavailable

31

Pop Rivet 3/16"

293150013

$1.11

32

Hex. Elastic Nut M8

232581600

Unavailable

33

Stainless, Flat Washer 8 mm

234081600

Unavailable

34

TUBE - Call your local BRP dealership

277001497

Unavailable

35

RETAINER CLAMP ANODIZED - Call your local BRP dealership

277001233

Unavailable

36

Socket Head Screw M6 X 20, Scotch Grip

205562060

Unavailable

37

Stainless Flat Washer M6

234061600

$0.25

38

Tie-Rap 180 mm

414115200

$0.09

39

LH END CAP - Call your local BRP dealership

277001234

Unavailable

40

Black, Dart

293730016

Unavailable

41

AXLE CAP - Call your local BRP dealership

277001274

Unavailable

42

RH END CAP - Call your local BRP dealership

277001235

Unavailable

43

Spring

277001315

Unavailable

44

Spring Guide

277001237

Unavailable

45

INNER COVER - Call your local BRP dealership

277001395

Unavailable

46

Rivet | Model-T3

293150067

$2.29

47

Mount Dart

293730040

$0.86

48

Tie-Rap 180 mm

414115200

$0.09

49

Upper Steering Cover

277001221

Unavailable

50

Housing Nut M6 | Included 550f to 550f2

269502408

Unavailable

52

Flat Washer M6, Stainless

234062600

Unavailable

53

Hex. Forming Screw M6 X 20

207162060

Unavailable

54

Pole Cover

277001418

Unavailable

55

Black Dart

293730010

Unavailable

56

Pop Rivet 3/16"

204000081

Unavailable

57

LOWER STEERING COLUMN TRIM - Call your local BRP dealership

277001268

Unavailable

58

Bumper Plug, Black

291001519

Unavailable

59

Flat Washer M6, Stainless

234062600

Unavailable

60

SOCKET HEAD SCREW M6, SCOTCH GRIP - Call your local BRP dealership

205961660

Unavailable

61

Lower Pole Foam

277001304

Unavailable

62

Middle Pole Foam

277001317

Unavailable

63

Upper Pole Foam

277001314

Unavailable

64

RH Pole Foam

277001350

Unavailable

65

Rear Foam Pole

277001383

Unavailable
